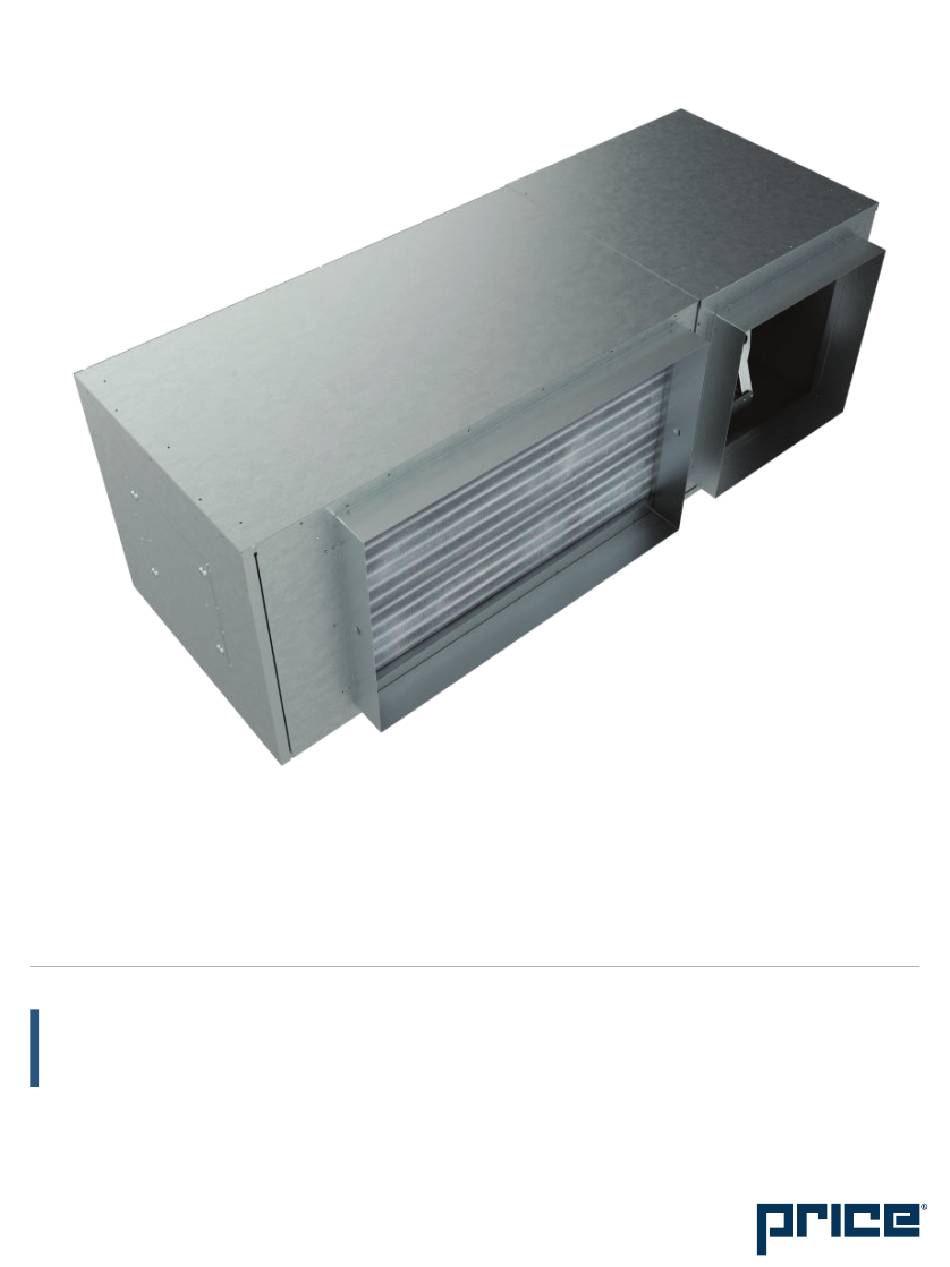

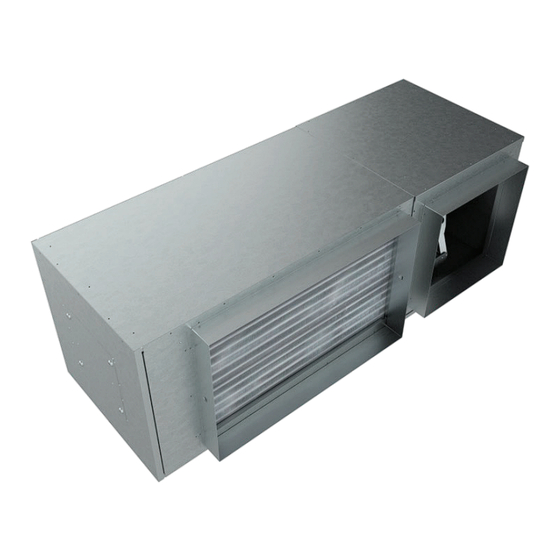

- Page 1 MANUAL – INSTALLATION Air Change Horizontal Unit ACHU v100 – Issue Date: 02/20/24 © 2024 Price Industries Limited. All rights reserved.
-
Page 2: Table Of Contents
AIR CHANGE HORIZONTAL UNIT TABLE OF CONTENTS Product Overview Safety Precautions ............1 Caution to Contractors ..........2 Caution to Users ............2 Receiving Inspection ............2 Dimensional Data ............3 Installation & Mounting Instructions General ................4 Electrical Connection .............4 Cooling/Heating Pipe Connections ........5 Mounting the Unit ............5 Drain Connection and Trap ..........7 Start Up &... -
Page 3: Product Overview Safety Precautions
AIR CHANGE HORIZONTAL UNIT PRODUCT OVERVIEW Safety Precautions WARNING: Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. WARNING: When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. WARNING: Protect flammable materials nearby when brazing, Use flame and heat protection barriers where needed. -
Page 4: Caution To Contractors
Receiving Inspection All Price Fan Coil units are inspected before shipment. After unpacking the assembly, check it for damage. If any damage to the products is found, report it immediately to the delivery carrier. Ensure that all packing material is removed from the inside of the unit, especially around the blower wheel and coil section. -
Page 5: Dimensional Data
AIR CHANGE HORIZONTAL UNIT PRODUCT OVERVIEW DIMENSIONAL DATA - ACHU Size Length (L) Width (W) Height (H) 84 in. (2134 mm) 30 in. (762 mm) 30 in. (762 mm) priceindustries.com | HORIZONTAL AIR CHANGE BLOWER COIL - Manual... -
Page 6: Installation & Mounting Instructions General
General Price Fan coils are designed to be durable and manufactured for sturdy construction. The units must still be handled with great care and no force or pressure applied to the coil or piping. When handled, the unit should be carried in an upright position holding onto the mounting points on the horizontal units and holding onto the bottom of the vertical units. -
Page 7: Cooling/Heating Pipe Connections
AIR CHANGE HORIZONTAL UNIT INSTALLATION & MOUNTING INSTRUCTIONS Cooling/Heating Pipe Connections The piping must be installed in a counter flow configuration to achieve optimal performance. The water inlet should be located on the leaving air side of the coil and the outlet should be located on the entering air side of the coil as shown below. The valve packages are easily damaged when introduced to excessive amounts of heat. - Page 8 AIR CHANGE HORIZONTAL UNIT INSTALLATION & MOUNTING INSTRUCTIONS Install ductwork to comply with ASHRAE Fundamentals Handbook, local building codes and the National Electric Code. Locate unit support in accordance with the mechanical and structural plans. Hanging rods should be securely attached to joints or to mounting anchors which are properly secured to slab construction with lugs or poured in place anchors.
-
Page 9: Drain Connection And Trap
AIR CHANGE HORIZONTAL UNIT INSTALLATION & MOUNTING INSTRUCTIONS Drain Connection and Trap Drain lines should be the same size as the drain connection and require a drain trap to allow proper drainage of the coil condensate. Failure to install a proper trap will cause excessive amounts of condensate to pool in the drain pan which can lead to condensate carryover. -
Page 10: Start Up & Operation General
AIR CHANGE HORIZONTAL UNIT INSTALLATION & MOUNTING INSTRUCTIONS Start Up & Operation General Before beginning start up operation, familiarize yourself with the unit, options, accessories, controls so you understand proper system operation. All personnel should have a good working knowledge of general start-up procedures and have the appropriate start-up and balancing guides available for consultation. -
Page 11: Water System Balancing
AIR CHANGE HORIZONTAL UNIT INSTALLATION & MOUNTING INSTRUCTIONS FAN AND MOTOR ROTATION Water System Balancing A complete knowledge of the hydronic system, its components, and controls is essential to proper water system balancing and this procedure should not be attempted by unqualified personnel. The system must be complete and all components must be in operating condition BEFORE beginning water system balancing operations. -
Page 12: Maintenance Safety
MAINTENANCE Safety Periodic maintenance should be performed by a train professional. Price Fan Coil units are supplied with permanently lubricated motors. Fan and Motor Disconnect all incoming power before servicing the unit. Price Fan Coil units are supplied with permanently lubricated motors. -
Page 13: Replacement Parts
AIR CHANGE HORIZONTAL UNIT MAINTENANCE Replacement Parts Component Part # Description Unit Size Plenum Fan & Motor Contact airmovement@priceindustries.com for motor All Sizes Assembly replacement assistance Component Part # Description Unit Size 509805-001 ACHU Water Coil, Size 30 RH Size 30 509806-001 ACHU Water Coil, Size 30 LH Size 30... -
Page 14: Installation Checklist
AIR CHANGE HORIZONTAL UNIT MAINTENANCE Installation Checklist Receiving & Inspection Receiving & inspection Unit received undamaged All parts accounted for Unit arrangement/hand correct Handling and Installation Unit mounted level and plumb Correct electrical service ... - Page 15 AIR CHANGE HORIZONTAL UNIT NOTES priceindustries.com | HORIZONTAL AIR CHANGE BLOWER COIL - Manual...
- Page 16 This document contains the most current product information as of this printing. For the most up-to-date product information, please go to priceindustries.com. © 2024 Price Industries Limited. All rights reserved.
