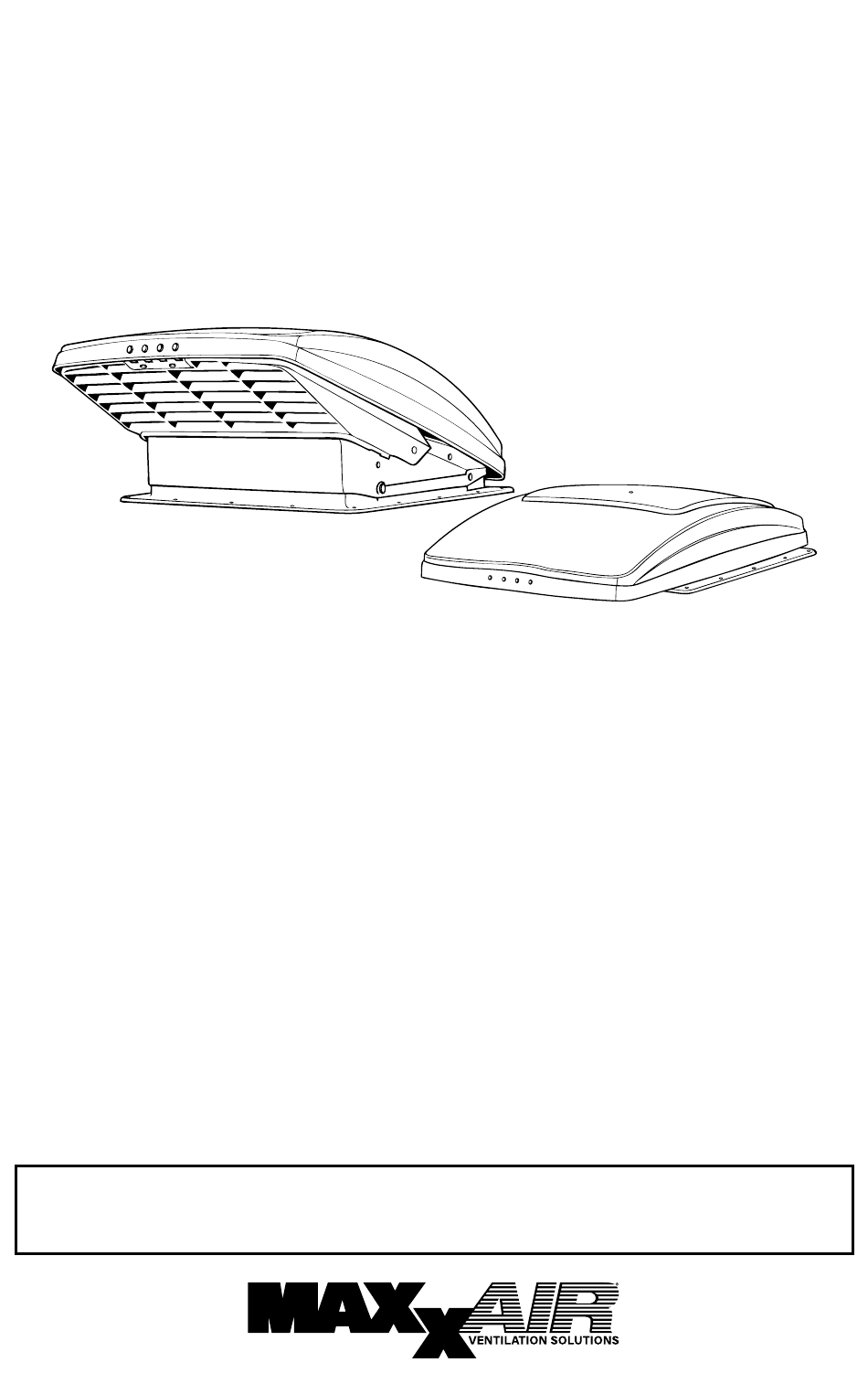

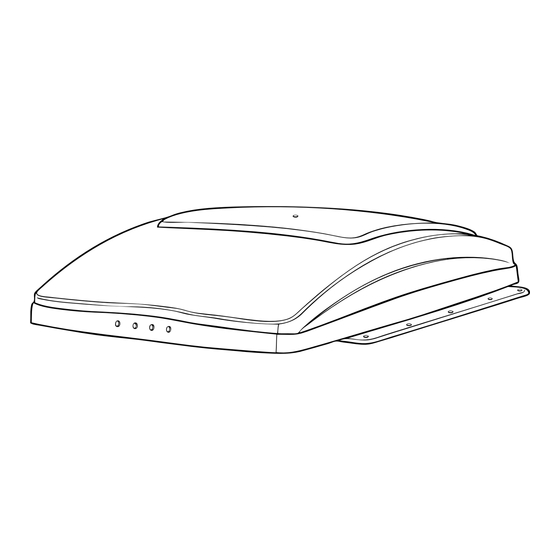

MAXXFAN
INSTALLATION INSTRUCTIONS,
INFORMATION AND OPERATING GUIDE
FOR MAXXFAN
READ AND SAVE THESE INSTRUCTIONS
NOTE: Refer to supplied Operating Instructions regarding the model you have purchased.
The MAXXFAN installs into a standard RV roof opening of 14" x 14".
To determine if your roof opening is correctly sized, simply remove the interior ceiling garnish
trim ring of your existing roof vent and measure the ceiling opening or verify the opening is
large enough by sliding the MAXXFAN interior garnish trim ring into the opening.
Due to the EXHAUST / INTAKE LOUVERS that face the rear of the vehicle, the MAXXFAN
requires a roof area clear of obstructions such as air conditioners, storage boxes, etc. for at
least 8" to the rear of the existing standard roof vent flange outer rear edge.
The MAXXFAN is designed for a minimum roof thickness of 1 1/8" to a maximum of 6 1/2".
If your roof thickness is less than 1 1/8", build additional thickness at the ceiling opening
using wood or other suitable material.
The MAXXFAN requires a minimum 12 Volt DC, 5 amp service. Confirm that the circuit
you intend to use will accommodate the additional load. Use the proper gauge stranded
wire for electrical connections.
WARNING!
in the manner intended by AIRXCEL, INC. Should you have questions, please contact
AIRXCEL/MAXXAIR VENTILATION SOLUTIONS Customer Service at 316.832.3400.
8700N and 8900N
To reduce risk of fire, injury to persons or damage to property, use only
Deluxe MODELS
®
®
P/N: 11E90001N
02-2018
