From MaxxAir Vent Corporation

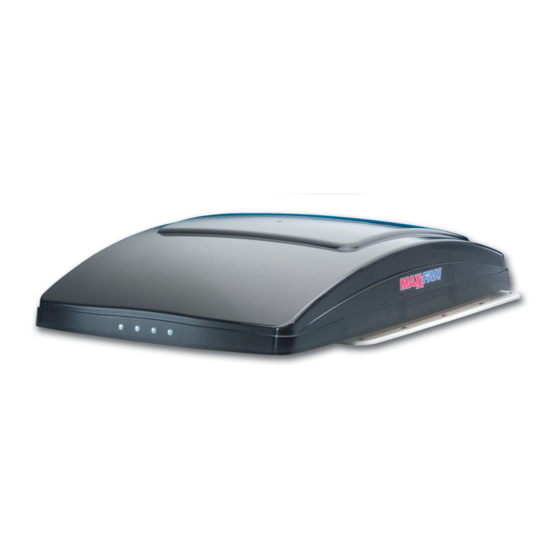

MaxxFan
WARNING - To reduce risk of fire, injury to persons or damage to property, use only in the manner
intended by MaxxAir Vent Corp. If you have questions, contact MaxxAir Vent Corp. @ 1-800-780-9893
NOTE:
Refer to supplied attachments for further instructions regarding the model you have
purchased.
The MaxxFan installs into a standard RV roof opening of 14 by 14 inches.
To determine if your roof opening is correctly sized, simply remove the interior ceiling garnish trim
ring of your existing roof vent and measure the ceiling opening or verify the opening is large enough
by sliding the MaxxFan interior Garnish trim ring into the opening.
Due to the exhaust/intake louvers that face the rear of the vehicle, the MaxxFan requires a roof
area clear of obstructions such as air conditioners, storage boxes, etc. for at least 8 inches to the
rear of the existing standard roof vent flange outer rear edge.
The MaxxFan is designed for a minimum roof thickness of 1 1/8 inches to a maximum of 6 1/2
inches. If your roof thickness is less than 1 1/8 inches, build additional thickness at the ceiling
opening using wood or other suitable material.
The MaxxFan requires a minimum 12 Volt DC, 5 amp service. Confirm that the circuit you intend to
use will accommodate the additional load. Use the proper gauge stranded wire for electrical
connections.
Step 1
Remove the old existing roof vent. Remove all old roof sealant for a minimum of 2" entirely around the
roof opening.
Place the MaxxFan Roof Receiving Flange (ref. photo #3) into the roof opening and trace a pencil line
around it to verify the clean seal area that will be required. Note that the Roof Receiving Flange must be
centered in the roof opening with the metal clips facing the sides of the vehicle (not facing the front or rear
of the vehicle).
MaxxAir – the leader in RV ventilation
TM
Installation Instructions
Exhaust/Intake
Louvers
Read and Save
These Instructions
CSA approved.
Patent Pending
P/N 10-50201 - Rev. 9/13/05
Advertisement
Related Manuals for Maxxair MaxxFan
Summary of Contents for Maxxair MaxxFan
- Page 1 The MaxxFan is designed for a minimum roof thickness of 1 1/8 inches to a maximum of 6 1/2 inches. If your roof thickness is less than 1 1/8 inches, build additional thickness at the ceiling opening using wood or other suitable material.
- Page 2 Roof Receiving Flange upward edge. Step 6 Verify the MaxxFan is fully seated down on the Roof Receiving Flange and fasten the MaxxFan to the Roof Receiving Flange using the four 3/4 inch long by #10 Stainless Steel screws pro- vided.
- Page 3 Garnish Ring into position. Fasten in place using the four painted flat head screws provided. For additional information about your MaxxFan, please read the enclosed “Information and Operating Guide”. Congratulations! You have successfully completed the installation of your new MaxxFan.
- Page 4 Silicone Oil or Greases (avoid those containing Aromatic Hydrocarbons or other additives). Review the contents of your cleaning materials carefully. Visit our website at www.maxxair.com MaxxAir Vent Corp • 5513 W. Sligh Ave • Tampa, FL 33634 • Phone (800) 780-9893 • (813) 882-8282 • Fax (813) 876-2550...
