INSTALLATION INSTRUCTIONS FOR
MAXXAIR'S UNIMAXX UNIVERSAL
VENT LID REPLACEMENT KIT
Replaces damaged vent lids on ELIXIR, HENGS,
JENSEN, VENTLINE and other roof vent assemblies.
READ AND SAVE THESE INSTRUCTIONS
WARNING!
in the manner intended by AIRXCEL, INC. Should you have questions, please contact
AIRXCEL/MAXXAIR VENTILATION SOLUTIONS Customer Service at 316.832.3400.
P/N: 10A335015Z
To reduce risk of fire, injury to persons or damage to property, use only
PACKAGE CONTENTS
Description
Universal Lid
Universal Hinge
Slide / Clip
Hardware Kit
Screws
Washers
Lock Washers
Nuts
TOOLS REQUIRED
Description
Power Drill
3 / 16" Drill Bit
Phillips Screwdriver
11/32" wrench or socket
Pencil or Marker
QTY
1
1
1
4
4
4
4
05-2017
Advertisement
Table of Contents
Related Manuals for Maxxair UNIMAXX
Summary of Contents for Maxxair UNIMAXX

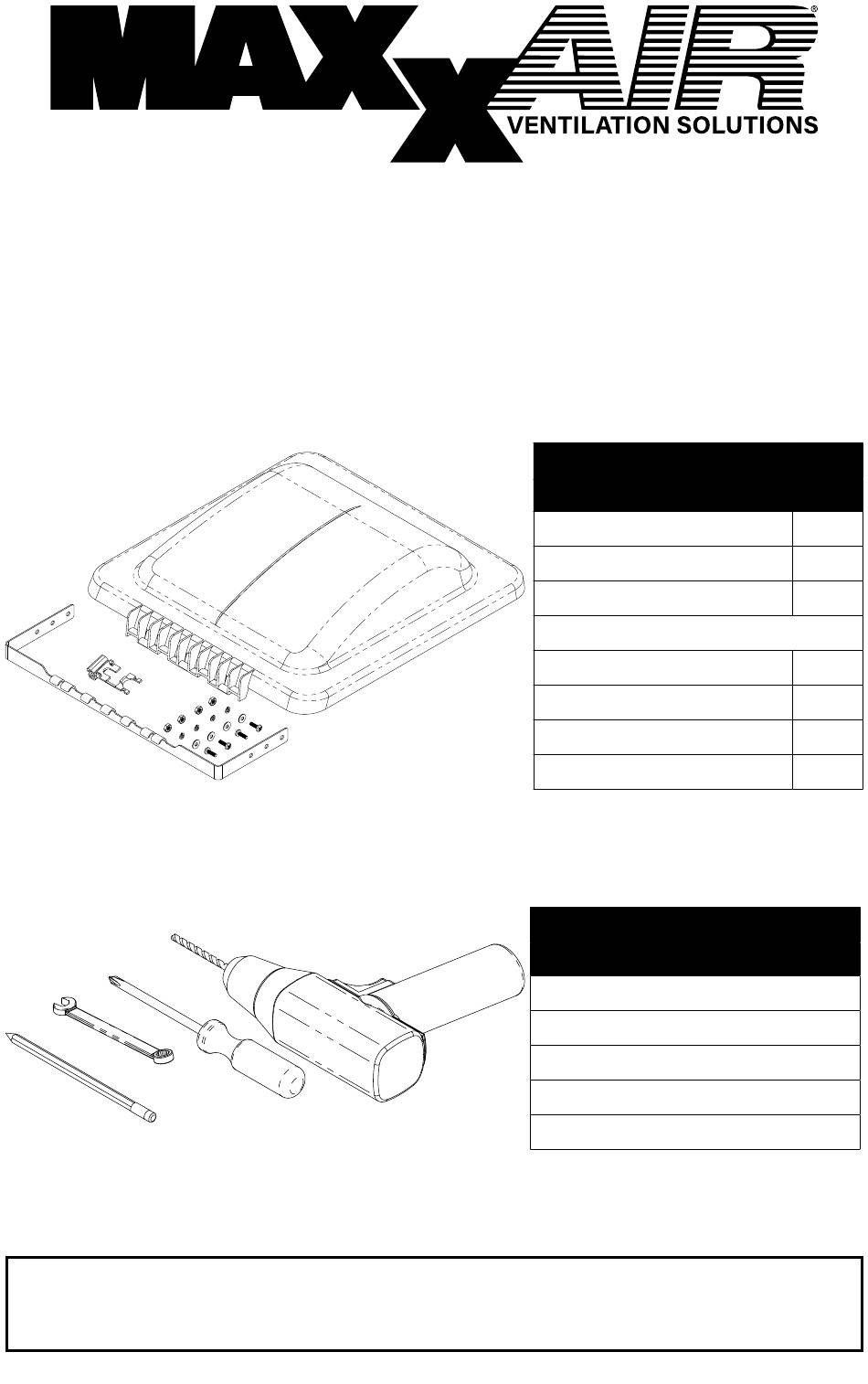

- Page 1 READ AND SAVE THESE INSTRUCTIONS WARNING! To reduce risk of fire, injury to persons or damage to property, use only in the manner intended by AIRXCEL, INC. Should you have questions, please contact AIRXCEL/MAXXAIR VENTILATION SOLUTIONS Customer Service at 316.832.3400. P/N: 10A335015Z 05-2017...
- Page 2 STEP 1 From inside the coach, crank the vent to the open position then remove the garnish ring, crank handle and the screen frame. Retain items for re-installation. SCREEN FRAME CRANK HANDLE GARNISH RING STEP 2 RETAINER Remove the screws securing the CLIP lift operator and disengage the lift arm from the lid track.
- Page 3 STEP 4 Engage universal with universal hinge by orienting parts as shown and pivoting. STEP 5 Place lid and hinge over vent and position so that inside of lid or hinge is up against the old roof vent hinge. With lid pressed against roof vent gasket and universal hinge parallel to roof, mark the 2 outer holes on each...
- Page 4 CONGRATULATIONS! You have successfully installed UNIMAXX Universal Vent Lid. your new MAXXAIR ® For additional product information please visit www.AIRXCEL.com AIRXCEL, INC. - RV Products Division / MAXXAIR 3050 N. St. Francis St. • Wichita, KS 67219 • 316-832-3400...
