Simmonsigns Pulsa GPRS Installation Manual

School patrol warning signal

Download this manual

Cut power supply to Pulsa by

STEP 1

unplugging connector plug.

Remove 2x cluster and 1x

STEP 2

Mag switch connectors from

PCB board (leave cables

loose away from gear tray to

aid removal).

Remove 2x white nylon nuts

STEP 3

from gear tray (retain fro use

on R2 gear tray when fitted).

Remove R1 gear tray and

STEP 4

service plate together, both

will be attached together with

power cable.

Simmonsigns Limited reserves the right to alter or improve this guide without prior notice

simmonsigns.co.uk

+44 (0)1952 293 333

sales@simmonsigns.co.uk

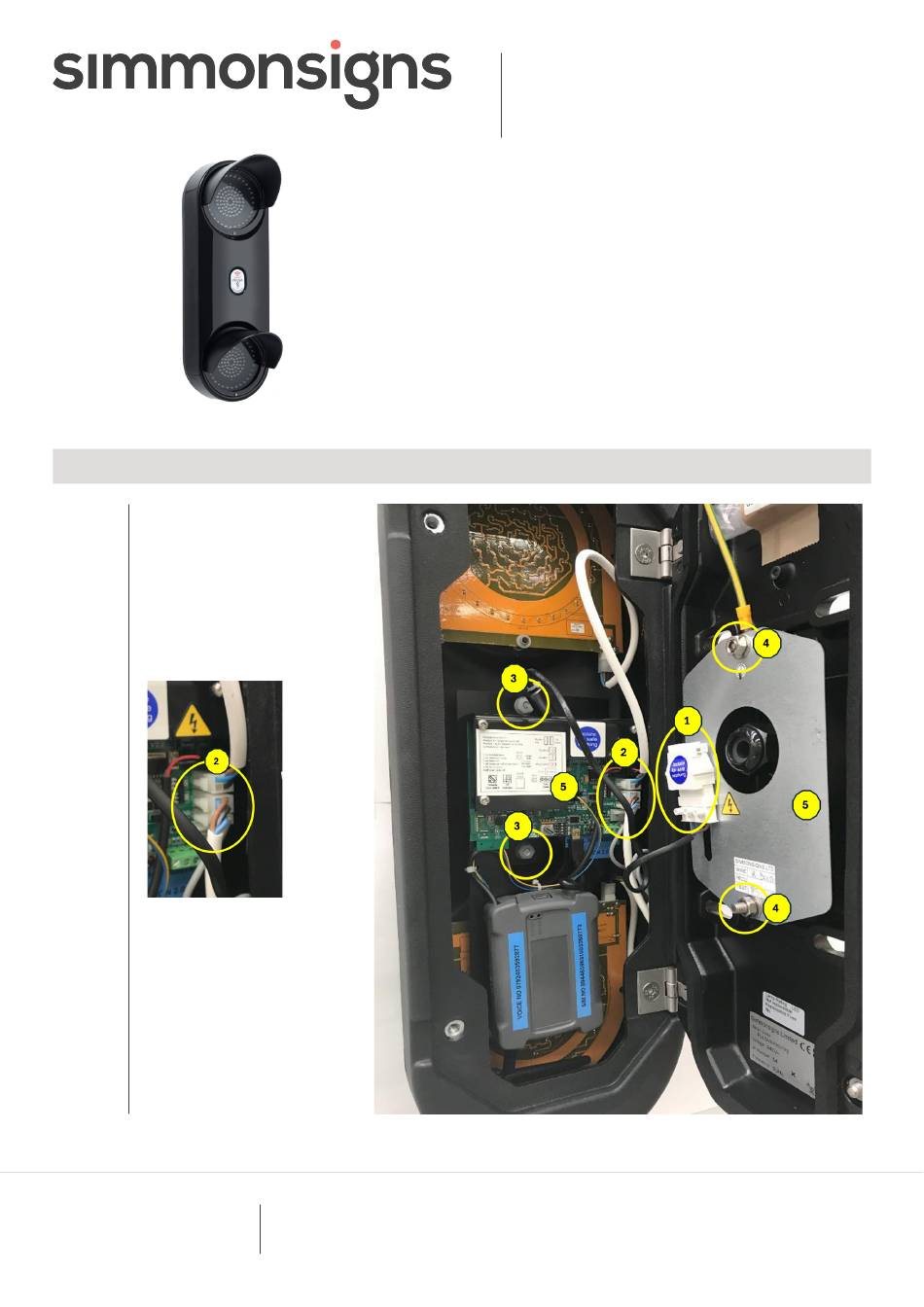

REMOVAL OF R1 GPRS GEAR TRAY FROM UNIT

Stafford Park 5

Telford Shropshire

TF3 3AS

GPRS Pulsa School

Patrol Warning Signal

Installation Guide

Issue Date: May 2024

Doc Ref: IG206

Issue Number: 1

Need help?

Do you have a question about the Pulsa GPRS and is the answer not in the manual?

Page 1 Remove R1 gear tray and STEP 4 service plate together, both will be attached together with power cable. Simmonsigns Limited reserves the right to alter or improve this guide without prior notice simmonsigns.co.uk Stafford Park 5 Doc Ref: IG206 +44 (0)1952 293 333...
Page 2 SIM card, remove SIM card from be fitted to R2 Modem. board and retain for fitting in replacement R2 gear tray. Simmonsigns Limited reserves the right to alter or improve this guide without prior notice simmonsigns.co.uk Stafford Park 5 Doc Ref: IG206...
Page 3 R2 Modem, this retaining SIM card information for future reference. The R2 gear tray is now ready to be fitted to unit. See R2 gear tray fitting instruction. Simmonsigns Limited reserves the right to alter or improve this guide without prior notice simmonsigns.co.uk Stafford Park 5...
Page 4 STEP 6 power up unit. Refer to commissioning NEXT guide. STEP Simmonsigns Limited reserves the right to alter or improve this guide without prior notice simmonsigns.co.uk Stafford Park 5 Doc Ref: IG206 +44 (0)1952 293 333 Telford Shropshire Issue Date: May 2024 sales@simmonsigns.co.uk...
