DESCRIPTION

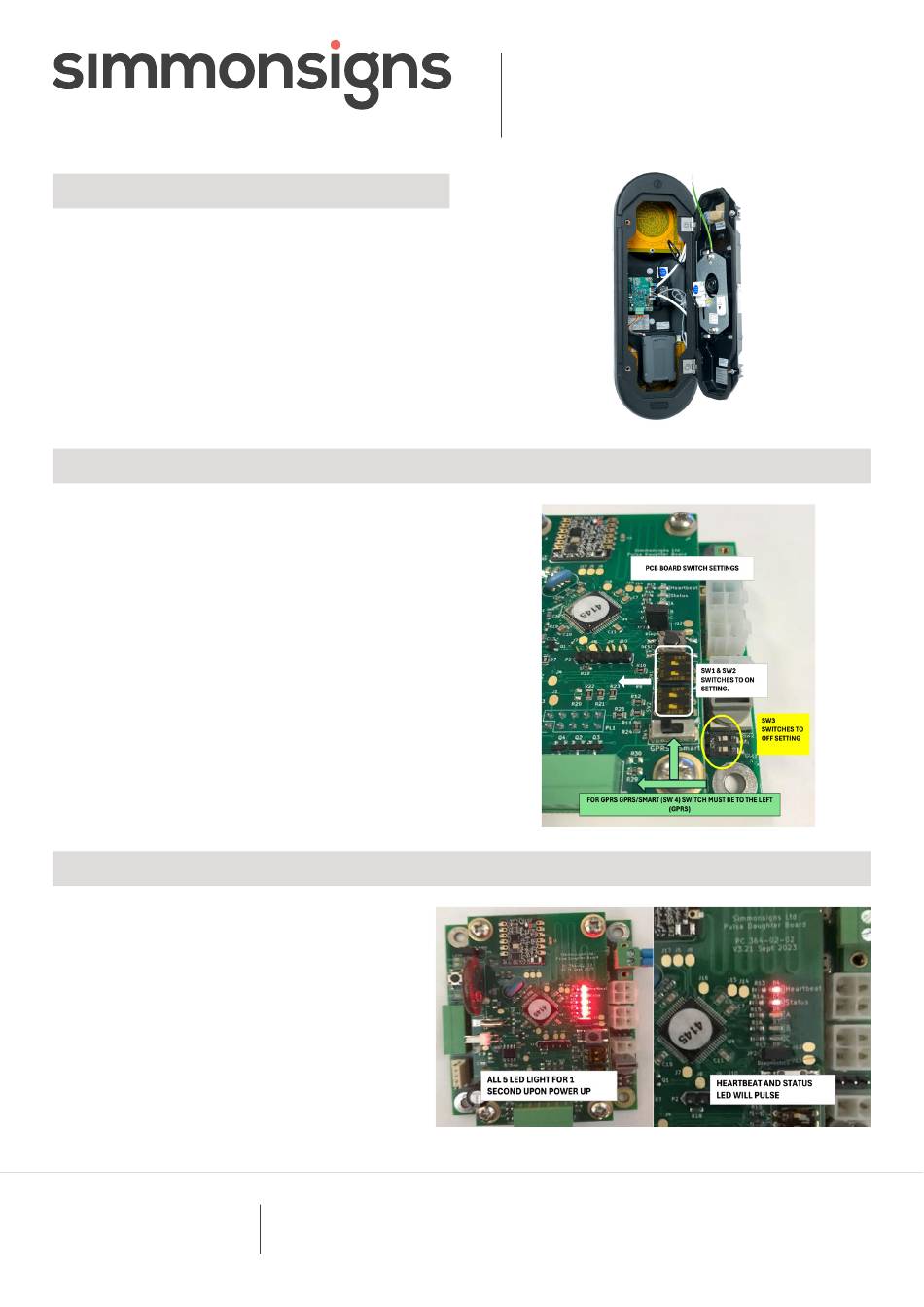

This procedure is performed after the GPRS Pulsa
has been installed on the post and the power supply
has been wired ready for connection.
Check switches on lower and upper PCB are in
correct positions as shown, all other switches on
upper PCB should be in the on position. (Positioned
furthest from the edge of the PCB).
Connect power: Check that all 5 LEDs on upper PCB
illuminate for 1 second. After a couple of seconds the
end 2 LEDS will pulse. This is correct operation.
Simmonsigns Limited reserves the right to alter or improve this guide without prior notice
simmonsigns.co.uk
+44 (0)1952 293 333
sales@simmonsigns.co.uk
CHECK SWITCHES
CONNECT POWER
Stafford Park 5
Telford Shropshire
TF3 3AS
GPRS Pulsa School
Patrol Warning Signal
Commissioning Guide
Issue Date: May 2024
Doc Ref: IG205
Issue Number: 1
