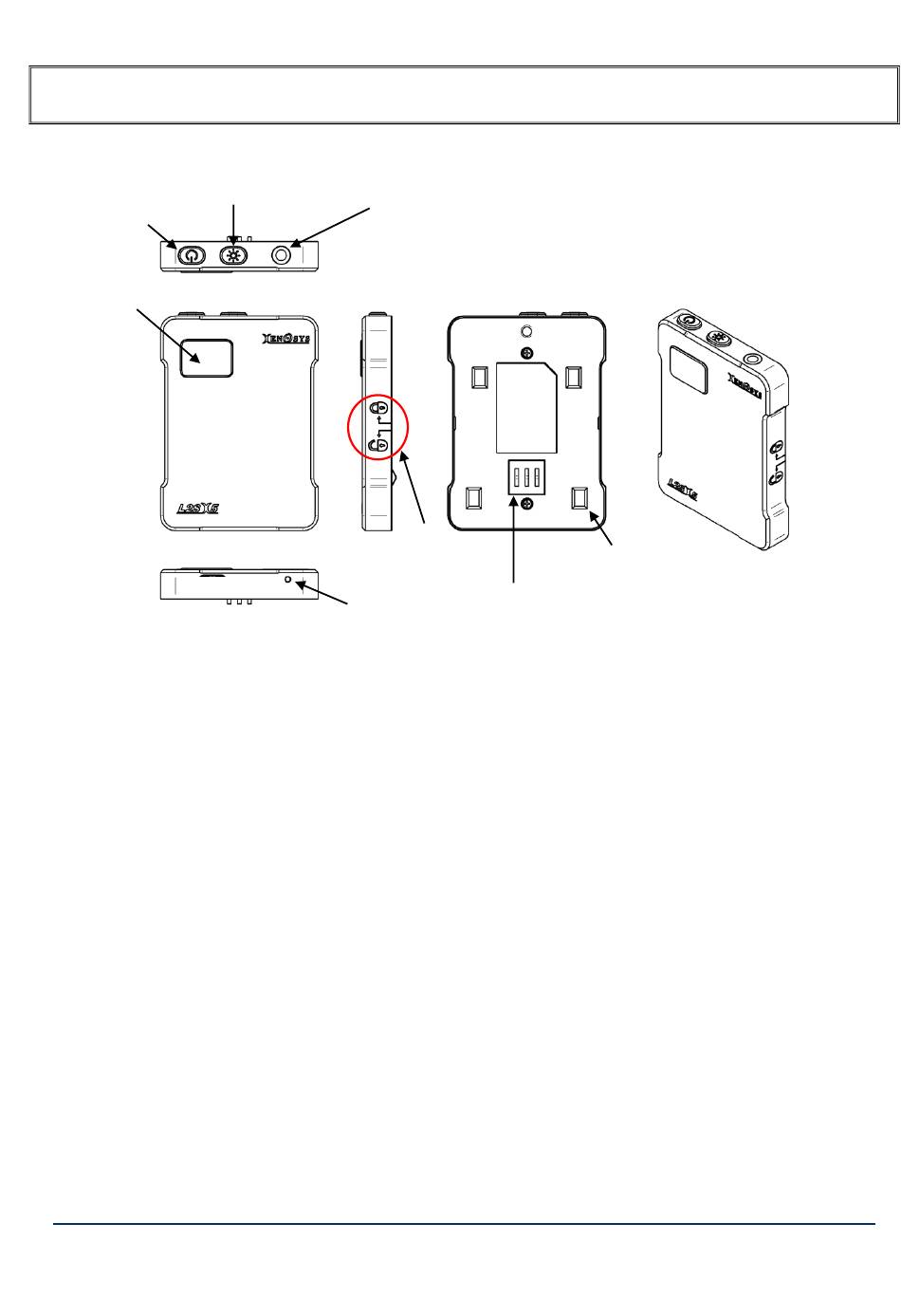

1. Main Body (LED Control Unit, LCUX5)
② Power ON/OFF
① Battery remaining LED
② 배터리
① Battery remaining LED signal: Shows how much battery remains.
Example) Number from 0 to 99, FU (FULL)
② Power ON/OFF button: Press the button to turn ON/OFF of LED lens module.
③ Intensity change button: To change the intensity of light from1 to 4.
④ Battery hook assembly part
⑤ LED lens module connecting jack: To connect LED lens module (LLMX582).
⑥ Battery pack release direction mark: To identify the direction of battery release from the
main body.
⑦ Pairing switch: The switch to set up the pairing between the control unit and remote
controller (Refer to page 13 for setting up the pairing)
⑧ Power input terminal: This is the part that connects to the power output terminal of the
battery pack.
Portable LED HeadLight System (L2SX5)

Functions of Component

③
Intensity change
⑤ LED lens module connection jack port
⑥ Battery release direction
⑦ Pairing switch
④ Battery hook connection hole
⑧ Power input terminal
11
