Xenosys L2SX5 User Manual

Portable led headlight system
Hide thumbs

Advertisement

Quick Links

Download this manual

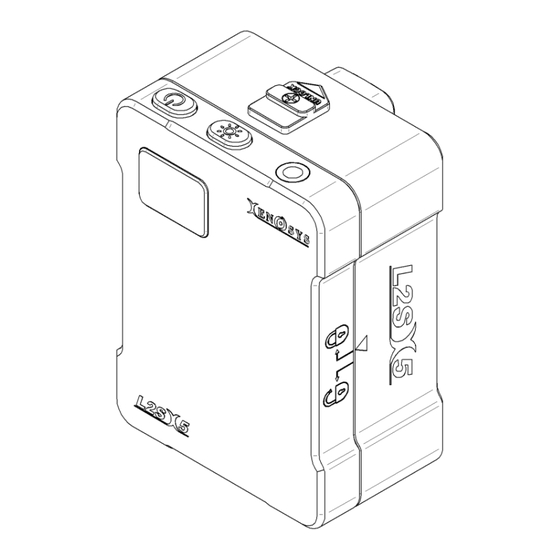

Doc. No.
F702M-L2SX5E
L2SX5
(Portable LED HeadLight System)
User Manual
Optical Device Medical Device System Engineering
XENOSYS CO., LTD.
2, Venture-ro, 100 beon-gil, Yeonsu-gu, Incheon 22013, Korea
TEL. 82-32-875-9811~2 FAX. 82-32-875-9813
www.xenosys.co.kr / sales@xenosys.co.kr

Advertisement

loading
Need help?

Need help?

Do you have a question about the L2SX5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xenosys L2SX5

Summary of Contents for Xenosys L2SX5

  • Page 1 Doc. No. F702M-L2SX5E L2SX5 (Portable LED HeadLight System) User Manual Optical Device Medical Device System Engineering XENOSYS CO., LTD. 2, Venture-ro, 100 beon-gil, Yeonsu-gu, Incheon 22013, Korea TEL. 82-32-875-9811~2 FAX. 82-32-875-9813 www.xenosys.co.kr / sales@xenosys.co.kr...

  • Page 2: Table Of Contents

    Functions of Component ....................... 11 Operating Instruction ........................15 Basic Troubleshooting ........................21 Specifications ..........................22 Electromagnetic Compatibility ...................... 26 Transportation ..........................26 Storage ............................27 Cleaning Instruction ........................28 Services & Warranty ........................28 Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...

  • Page 3: Introduction

    Introduction Portable LED Headlight System: L2SX5 is the medical device with lithium-ion battery and LED light source which is suitable for flashing on to watch the wound or surgery spot. As a portable device, it does not need supplementary holder and fiber optic cable. By the help of co-axial &...

  • Page 4: Safety & Precaution

    4. Do not touch the power cord with wet hand which may cause electric shock or equipment damage. 5. Do not use L2SX5 with connecting directly to the battery pack during the operation or medical practice which may cause the electrical shock or fire.
  • Page 5 4. LED optic outside emits heat, so be careful on touching. 5. Do not look directly into LED lens module or some one’s eyes to avoid the risk of permanent eye damage. Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 6 4. The battery operating time may shorten using in the cold place (below (-10℃) even fully charged one. In that case, warm up the battery within the pocket before using L2SX5. Do not heat up the battery with microwave or any heater.

  • Page 7: Features

    2. Use only the charger which is provided by Xenosys on the phone jack. This may cause the defective on the charger and DC power supply. WARNING for Disposal 1. In case of careless disposal, it may pollute the environment, so make sure to separate collection.
  • Page 8 Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...

  • Page 9: Components

    Battery pack (2 pcs, BTPX5) (AAA batteries NOT included) ④ LED Lens Module (LLMX582) ⑤ Charger (LCHX5) ⑥ USB Power Cable (USBCL) ⑦ Medical Power Supply ⑨ X5 EXCA Assembly ⑨ Pairing Pin (FW80001MUSB05) (For use of LLMX582,74,66) Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 10 Field of View: Ø 74 mm @WD400mm Optional ⑪ LED Lens Module (LLMX566) Field of View: Ø 66 mm @WD400mm Optional LED Lens Module ⑫ Field of View: Ø 66 mm @WD400mm Optional (LLMX566D) Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...

  • Page 11: Functions Of Component

    ⑦ Pairing switch: The switch to set up the pairing between the control unit and remote controller (Refer to page 13 for setting up the pairing) ⑧ Power input terminal: This is the part that connects to the power output terminal of the battery pack. Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 12 Remote Controller (RCX5) ② AAA battery slot ① Light On/Off button ③Intensity change button ① Light On/Off button: Press the button to turn ON/OFF of LED lens ② Battery Slot: 1.5V (2 EA), AAA size Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 13 ② LED Lens Module ① Adjustable link ① Adjustable link: LED Lens module can move up-down, and left-right side. ② 4 types of typical LED Lens Module available, and 1 dual type (Choose one). Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 14 - Charging terminal is weak at external shock, so be careful on assembling the battery pack. If the charging terminal is broken, it is out of order. Warning – Do not use non-Xenosys supplied power supply. This will cause severe damage to the cradle & main body which is also excluded from the under warranty.

  • Page 15: Operating Instruction

    In case of using non-Xenosys-supplied charger with higher voltage (over 5V), it will cause the severe damage to main body. Please check if its Xenosys supplied charger and the serial number. If it’s Xenosys supplied one, then stop using and contact the distributor (dealer) or the manufacturer.
  • Page 16 2. Store LED light in the place free from the air with pressure, temperature, humidity, wind, ray of light, dirt, salinity, and ion. 3. Store L2SX5 in the place free from the declination, shack, and shock. 4. Store L2SX5 in the place free from gas, smoke, and chemical fluid.
  • Page 17 Lithium-ion battery is expendables, thus if the operating time is shortened after full charge, we recommend exchanging new battery. D. Turn on light & Intensity change ④ LED Lens Module ③ Power ON/OFF button ② Intensity change ① Battery remaining LED Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 18 STEP Operating Time LLMX582 LLMX574 LLMX566 12,000 14,000 18,000 22,000 25,000 33,000 30,000 34,000 44,000 41,000 47,000 61,000 6h30m Illumination(±10%) Brightness(lx) @WD400mm STEP Operating Time LLMX566D 36,000 12h50m 64,000 7h30m 87,000 5h00m 110,000 3h10m Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 19 Charging Terminal 2. While pushing the battery release knob in the direction of the arrow, pull the control unit in the direction of the long arrow (upside) to disassemble it. ① Battery Release Knob Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 20 LED Lens Module attachment examples ① Headband ① Xenosys TTL Loupe ④ Xenosys Flip up loupe ⑤ Normal glasses ⑥ Xenosys Protective goggle Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...

  • Page 21: Basic Troubleshooting

    Discharging time is too fast charged. (Check the battery charged, we recommend remaining LED) exchanging with new battery as it is expendables. Check the wire connection Contact distributor Light flickers intermittently part – loose contact or not. manufacturer Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...

  • Page 22: Specifications

    C. Charger (LCHX5) D. Remoted Controller (RCX5) ① Size: Refer to below photo ① Size: Refer to below photo ② Weight: 30 g ② Weight: 56 g (With AAA batteries) 26,924 26,924 34,993 34,993 Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 23 ① Size: Refer to below photo ② Weight: 40 g ② Weight: 39 g 3) LLMX566 4) LLMX566D ① Size: Refer to below photo ① Size: Refer to below photo ② Weight: 41 g ② Weight: 74 g Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 24 Medical Power Supply ① Size: 31(L)x41(W)x77(H) [mm] ① Size: 1.8 m ② Weight: 81 g ② Weight: 74 g Green LED: Used to indicate that power is being supplied and has nothing with charging Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
  • Page 25 ▪ More than 80% @ WD400mm Uniformity ▪ 50,000 hours LED Life Span (Guaranteed Time) Replacement Component ▪ DC3.6V Battery Pack 6700mA Li-ion ▪ Input: AC100-240V, 50-60Hz, 0.3A Power Supply for Medical usage ▪ Output: DC5V 2.2A Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...

  • Page 26: Electromagnetic Compatibility

    2. Load L2SX5 boxes up and down evenly by handcart and any vehicle trunk to transport. 3. When you carry L2SX5 by hand, hold it with two hands firmly and disconnect charger, and power cord from the main-body for safe transportation Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...

  • Page 27: Storage

    +25℃. Keep away from too hot or extremely cold places. Precautions- Periodic charging and discharging is recommended as battery performance may deteriorate if stored for a long period of time without being used for more than 6 months. Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...

  • Page 28: Cleaning Instruction

    1. This service & warranty statement applies to all countries to the extent that there is no special warranty rule. 2. All services & warranty should be provided by Xenosys Co., Ltd. or authorized personnel by Xenosys Co., Ltd. 3. Warranty becomes effective from the sales date for material, production defective, or defect under the normal use.
  • Page 29 9. If there is any defect happens which cannot be handled by troubleshooting in this manual, return it to the manufacturer. Then Xenosys will take care of it. If the qualified engineer determines that the defect comes from the abuse or improper use, warranty will not be applied.
  • Page 30 ※ Revision List Version No. Distribution Date Revision Version 1.1 June, 2023 First release Xenosys Co., Ltd. 2, Venture-ro, 100 beon-gil, Yeonsu-gu, Incheon 22013, Korea TEL. 032-875-9811~2 FAX. 032-875-9813 sales@xenosys.co.kr www.xenosys.co.kr / Portable LED HeadLight System (L2SX5) www.xenosys.co.kr...
