Summary of Contents for Xenosys LooksCAM II

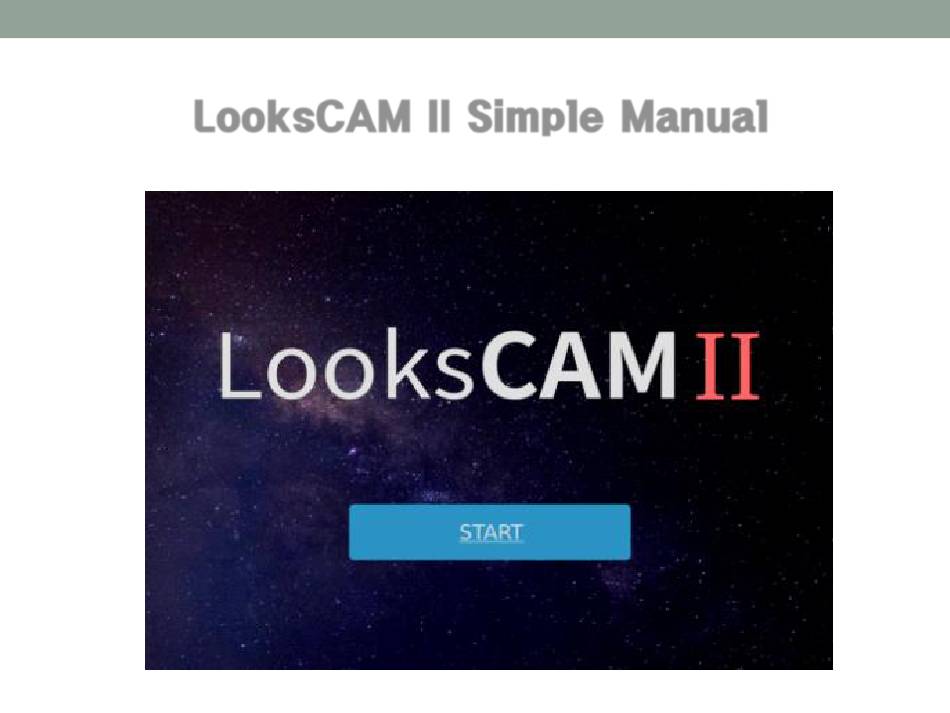

  • Page 1 LooksCAM II Simple Manual...
  • Page 2 Table of Contents 1. Component ------------- 4. Configuration ------------ page 3 - page 19- Component How to set up the configuration Main Body LC2-CU Configuration for wireless Battery Pack BTP-LC2 Layout Head Assembly Unit LC2-HA Remote Controller LC2-RC Station Screen mirroring (Chromecast) Screen mirroring (Apple TV) 2.

  • Page 3: Component

    1. Component • Component LC2-CU BTP-LC2 LC2-HA Main body (Camera control unit) Battery pack (2 pcs) Head Assembly unit RHB02-LC LC2-RC LC2-SDC FW8000MUSB05 RHB02-LC Remote controller RigidHeadband DC Power supply BTP-LC2 LC2-HA LC2-CU LC2-USBC LC2-SDCS LC2-USBC Micro SD card socket USB power cable Cable clamp LC2-VOC...
  • Page 4 1. Component • Main Body, LC2-CU Each Part Function ① Initialization Press 1 second, device will reboot. Press more than 5 seconds, initialized for factory set up and SD card will be formatted. ② Camera sensor Connect port with head assembly unit cable ②...
  • Page 5 1. Component • Battery Pack, BTP-LC2 Each Part Function Push to arrow pointed direction to assemble or disassemble the main body ① Battery release knob and battery pack. ② Battery hook To connect main body (LC2-CU) and battery pack ③ USB slot Connect DC Power Supply to charge the battery pack.
  • Page 6 1. Component • Head Assembly Unit, LC2-HA Each Part Function ① Microphone Microphone input ② Adjustable link To move up or down of camera head assembly unit LED ON: Stand By status ③ Recording status LED LED Blinking: Recording is in process LED OFF: System initialization or Camera sensor connection error.
  • Page 7 1. Component • Remote Controller, LC2-RC Each Part Function Record button Start or Stop video recording Quick press for one snapshot, Hold for continuous shots Continuous shots: 5 snapshots for 1 second and not feasible when video Snapshot button recording is on Press this button if you want to Tag specific moment or time lapse while Highlight tag button recording or playing the video.

  • Page 8: How To Install

    2. How to install • How to assemble RHB02-LC iOS, Android Device Wireless Router LC2-SDC Chrome cast & Apple TV BTP-LC2 LC2-HA LC2-CU Monitor with HDMI port LC2-VOC FW8000MUSB05 LC2-USBC...
  • Page 9 2. How to install • Insert & Removal of SD card Turn Contents Insert Micro SD card to the slot to the direction of the arrow Press the end tip of Micro SD card then it will pop out ♦ When inserting Micro SD card, do not force to push it or opposite side to insert, that will cause the damage of Micro SD card memory side!!! Micro SD card slot...

  • Page 10: How To Assemble

    2. How to install • How to assemble main body & battery pack Turn Contents ③ Match 4 holes of main body to ② 4 holes of battery hook ③ Push the main body to downward to assemble the battery pack To disassemble ①...
  • Page 11 2. How to install • How to assemble main body & head assembly unit Turn Contents Connect ① main body plug to ② camera sensor port. Fix ③ clamp to the rigid headband bar. Verify from viewer set up option “Lens” ⑤ product ID code (below photo 138). RHB02-LC BTP-LC2 LC2-CU...

  • Page 12: Connect Video-Out Port

    2. How to install • Connect Video-Out port Turn Contents Prepare monitor or TV supporting HDMI port Connect ② Main body Video-Out port to ① HDMI port of TV HD by using③Video-Out cable. To prevent the cable pull-out, use ④ Cable clamp There are two types of Video-Out cable (Normal cable type 3.6M and fiber cable type 10M) Monitor with HDMI port ④Cable clamp...

  • Page 13: Firmware Update

    Delete all files and folders of Micro SD card, Copy the firmware update file (6.x.x.xx.bin) Insert Micro SD card to LooksCAM II and turn on power. LED will blink quickly then proceed the upgrade When it’s done, the device will reboot and turn on.

  • Page 14: Viewer Set Up

    3. Viewer Set up • Recommended specification for device & installation Recommended Device specification for device RAM: 1.0 GB (recommended more than 2GB) Android More than Android OS 7.0 Resolution more than 1440 × 2560 More than iOS 11.0 More than iPhone 6 More than iPad 2 Retina Main body ID : LooksCam2...

  • Page 15: Configuration

    3. Viewer Set up • Details for Viewer ④ Configuration Option ② Status of main body ③ Version ① Network & Status (18page) of screen ⑤ Remote controller ⑥ Lock ⑦ Refresh ⑬ 화면 (Live 또는 파일 재 생) ⑫Menu (17page) ⑩...

  • Page 16: Details For Viewer

    3. Viewer Set up • Details for Viewer Each Part Function Display WiFi connection status, zoom-in / zoom-out, and recording status Trying to connect WiFi ① Network & status of screen WiFi connected. Digital zoom 1x WiFi connected. Recording is on, Digital zoom 1x.
  • Page 17 3. Viewer Set up • Details for Viewer Each Part Function ⑧ Volume of Control the volume of tablet PC speaker speaker Select specific period from video file to store new one (5~30 seconds). Select time and press “30 sec” to store. (Stored in tablet PC) ⑨...
  • Page 18 3. Viewer Set up • Details for Viewer ♦ Menu button (1) LIVE : Live stream view. (2) LOOKSCAM STORAGE : Stored main body SD card files. (3) Documents : Stored files in tablet PC. Menu button 20180813 20180827...

  • Page 19: How To Set Up The Configuration

    4. Configuration • How to set up the configuration (2 method) Configuration 1. Viewer (Press configuration button in viewer to set up wireless, camera, and etc.) 2. SD card (Press config.exe file in SD card to set up wireless, camera, and etc.)

  • Page 20: Lc2-Ha

    4. Configuration • Configuration for wireless - Layout Station Mode RHB02-LC BTP-LC2 Monitor iOS, Android Device LC2-CU Apple TV LC2-HA Chromecast Monitor Wireless Router Reflector3 LC2-VOC Mode Strong Point Weak Point AP Mode Depending on WiFi and environment, Easy to connect video can be disconnected.

  • Page 21: Configuration For Wireless

    4. Configuration Configuration for wireless – AP mode • ♦ AP mode: Direct connection between LC2-CU and mobile device • Default set up: SSID(LooksCam2), PASSWORD(1234567890) • Configure WiFi as LooksCAM2 for iOS or Android device iOS, Android Device • Live screen can be seen when you execute the Viewer LC2-CU •...
  • Page 22 4. Configuration Configuration for wireless – Station mode • ♦ Station mode: LC2-CU & mobile device is connected to the Router. SSID : SSID and password can be selected according to the Router environment. Normally “LooksCam2Station”. LooksCam2Station If WiFi signal is weak or the Router is far away from LC2-CU, Router we recommend using WiFi extender.
  • Page 23 4. Configuration Configuration for wireless – Screen mirroring (Chromecast) • ♦ Screen mirroring: While connected with Station mode, use the mirroring function SSID : of iOS or Android device to transfer the screen to TV or monitor. LooksCam2Station Use Android for Chromecast and iOS for Apple TV. •...
  • Page 24 4. Configuration Configuration for wireless – Screen mirroring (Apple TV) • ♦ Screen mirroring: While connected with Station mode, use the mirroring function SSID : of iOS or Android device to transfer the screen to TV or monitor. LooksCam2Station Use Android for Chromecast and iOS for Apple TV. •...
  • Page 25 4. Configuration Configuration for wireless – Screen mirroring (Reflector3) • ♦ Screen mirroring: PC base Reflector3 can transfer the screen to PC when it’s connected SSID : with Station mode and using the mirroring function of iOS or Android device. LooksCam2Station •...

  • Page 26: Configuration For Camera Function

    4. Configuration • Configuration for camera function ♦ Resolution : configure for resolution. 1080p or 720p ♦ Image Control : Configure image color manual or automatic. Recommend to use Auto.
  • Page 27 4. Configuration • Configuration for camera function ♦ Lens : Input last 3 digits of serial number of lens. (WD adjustment for each lens is possible) • Input the product ID code engraved on camera lens of LC2-HA. (Ex, A180138 => input 138) •...
  • Page 28 4. Configuration • Configuration for camera function ♦ AF Mode • Continuous mode : Auto focus mode according to user’s movement to focus the distance • Manual mode : Fixed mode by user’s set up distance (cm) • Press “AF” button at Manual mode, then it will focus on the specific object. •...

  • Page 29: Other Configuration

    4. Configuration • Other configuration ♦ Language : Information message language choice (English, Korean, Japanese) ♦ LED LIGHT : Configure the brightness STEP of light when booting from Main body (LC2-CU) ♦ MIC, Speaker : Adjust the volume of microphone & speaker...

  • Page 30: Specification

    5. Specification • Specification  Rated Input Voltage DC3.7V  Image Sensor 1/3 inch 4.0M Pixel CMOS  Recording Resolution Full HD 1920*1080p 30fps  f14mm Lens : 137mm @ WD 400mm FOV (Crosswise)  f20mm Lens : 94mm @ WD 400m ...
  • Page 31 REC(EIS) + Wifi : 1920*1080 / 30fps, delay 1.8sec. REC(EIS) + Wifi + HDMI : 480*360p / delay 1.8sec. Mobile View For smartphone & tablet PC to control LooksCAM II also included simple edit mode. ANDROID HDMI wire FHD 1920x1080p 60fps Standard length 3.6M (Optional fiber cable 10M)
  • Page 32 5. Specification • Features LooksCAM II Features Function Specification Features Digital Zoom x1.5, x2.0, x3.0 Possible to configure 4 steps of digital zoom Highlight TAG Tag for important part while recording LLM82 : 19,000 / 30,000 / 39,000 LUX LLM74 : 21,000 / 32,000 / 43,000 LUX...
