Band Saw
Model BS-IT-1829-L
Item 10254
Instruction Manual
Revised - 05/25/2018
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS-IT-1829-L and is the answer not in the manual?

Questions and answers

Summary of Contents for Omcan BS-IT-1829-L

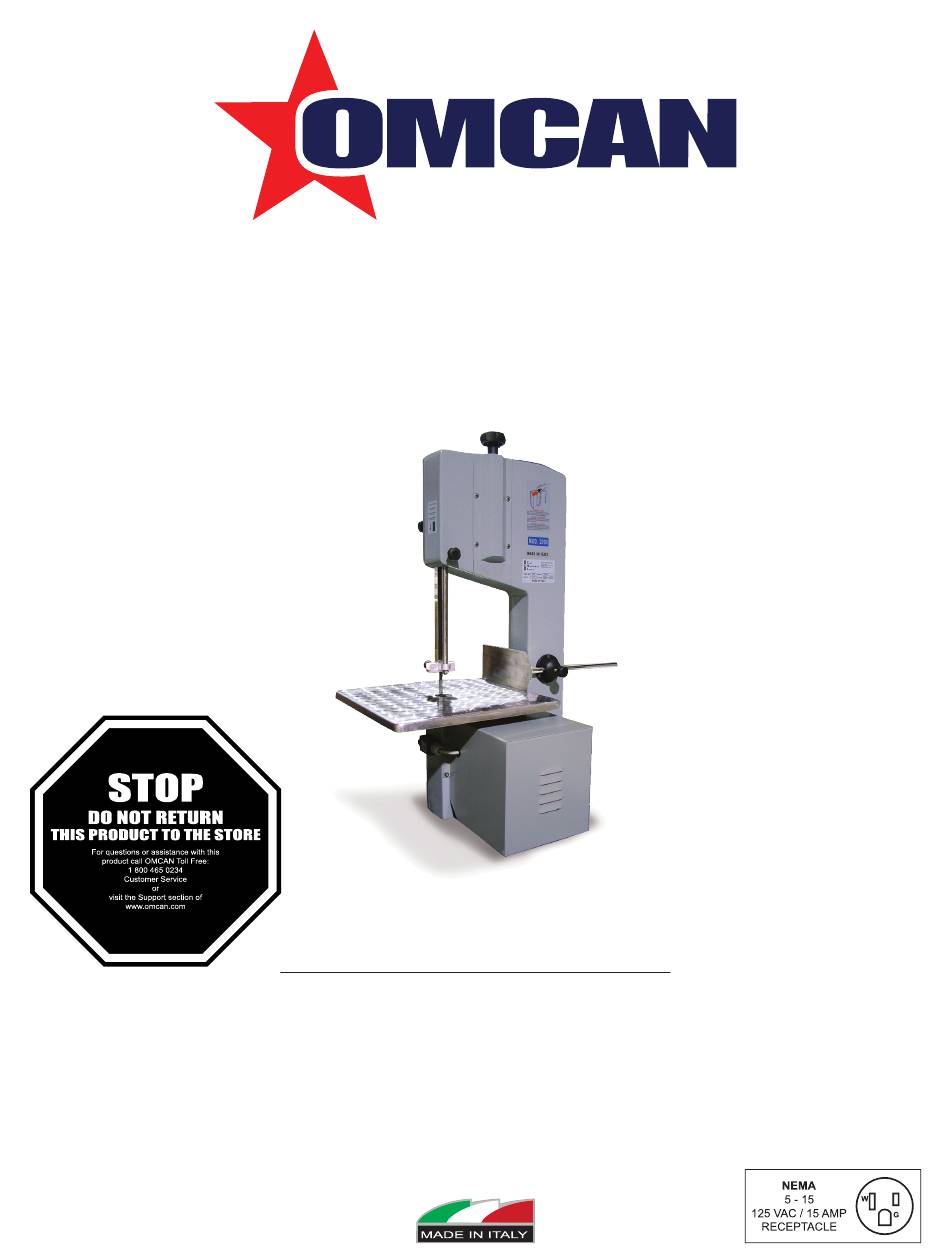

  • Page 1 Band Saw Model BS-IT-1829-L Item 10254 Instruction Manual Revised - 05/25/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
  • Page 2: Table Of Contents

    Table of Contents Model BS-IT-1829-L Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty -------------------------------------------------------------------------- 4 - 7 Technical Specifications ---------------------------------------------------------------------- 7 - 8 Installation -------------------------------------------------------------------------------------- 9 - 13 Operation ------------------------------------------------------------------------------------------- 14 Maintenance --------------------------------------------------------------------------------- 15 - 16 Troubleshooting...
  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Omcan Inc. is not responsible for the actions mentioned above and the person in charge of the machine must take care of them.
  • Page 6: Personal Protective Equipment

    Safety and Warranty PERSONAL PROTECTIVE EQUIPMENT PERSONAL PROTECTIVE EQUIPMENT IN CONFORMITY WITH CURRENT RULES: all of the following personal protective equipment (PPE) has to be in conformity with relevant technical rules in force (Directive no. 89/656/CEE and following amendments and updates) and therefore has to be EC-marked and have relevant declaration of conformity which usually refers to specific European (EN) technical rules of the harmonized type.
  • Page 7: Technical Specifications

    1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
  • Page 8 Technical Specifications C) MACHINE BODY 1) DRIVING PULLEY Q) DOOR LOCKING KNOB SCREWS D) DOOR 2) PULLEY PATH P) PORTION DEVICE L) WORKING TABLE F) EXIT WASTE OPENING V) BLADE GUIDE SCREWS N) SAW BLADE G) BLADE GUIDE T) BLADE TENSION KNOB Z) BLADE PROTECTOR R) METALLIC GRID M) MICROSWITCH...
  • Page 9: Installation

    Check that (both when the motor is running and when it is idle, but the machine is powered) the efficiency of the connection and protection of the electrical switchboard have been performed. If such checks are passed, the machine is electrically installed; if they are not, contact Omcan Inc. or the dealer for maintenance.
  • Page 10 Installation BLADE GUIDE SLIDING BLOCKS ADJUSTMENT 1. Make sure that the machine is switched off (rotational device positioned “O” = OFF); 2. Make sure that the machine is not working (blade has stopped); 3. Unscrew any of the two black (M) small knobs while paying attention not to unscrew it completely from its seat (S);...
  • Page 11 Installation BLADE GUIDE HEIGHT ADJUSTMENT 1. Make sure that the machine is switched off (rotational device positioned “O” = OFF); 2. Make sure that the machine is not working (blade has stopped); 3. Unscrew the black knob (N) (located opposite to the working table of the operator) which, through its integral screw, blocks the rod (A) of the blade guide (G) coming out from machine upper part and the working table;...
  • Page 12: Blade Tension Adjustment

    Installation BLADE TENSION ADJUSTMENT 1. Make sure that the machine is switched off (rotational device positioned “O” = OFF); 2. Make sure that the machine is not working (blade has stopped); 3. Screw the black knob (T) located on top to increase the blade tension and unscrew to decrease the blade tension;...
  • Page 13 Installation 8. Check the correct positioning of the new blade on the two pulleys; 9. Screw the black knob located on the top to increase the interaxle between the two pulleys and increasing the tension of the blade up to the desired value. It should be tight enough so that the blade cannot be extracted from the pulleys from pulling on it;...
  • Page 14: Operation

    Operation 1. Make sure that the machine is switched off (rotational device positioned “O” = OFF); 2. Make sure that the machine is not working (blade has stopped); 3. Put the material to cut on the working table; 4. Adjust the height of the blade guide according to the height of the material to cut; 5.
  • Page 15: Storage And Disposal

    If damaged or bad working components are detected, do not allow anyone to use the machine and put a warning about such prohibition; then contact the dealer or Omcan Inc. for maintenance. STORAGE AND DISPOSAL In order to preserve the machine (which is off) for a very long period the following rules must be abided by: •...
  • Page 16: Troubleshooting

    Maintenance It is also forbidden to leave or dispose the machine or any of its parts in the environment. It is also forbidden to dispose there is still solid urban waste; if the machine is no longer used, deliver it to qualified disposal facilities or authorized dealers.
  • Page 17 Troubleshooting Door is open but the machine does Damaged door safety microswitch. Contact Omcan or the dealer to not stop. have the door safety microswitch replaced. The machine is noisy (vibration, The working table or one of the Add some shims under the working creaking, whistling, etc.).
  • Page 18 One or both pulleys are damaged Check the pulleys and contact or out from their axis. Omcan Inc. or the dealer to have them repaired if they are out of their axis. Bad quality of blade.
  • Page 19: Parts Breakdown

    Parts Breakdown Model BS-IT-1829-L 10254...
  • Page 20 Parts Breakdown Model BS-IT-1829-L 10254 Item No. Description Position Item No. Description Position Item No. Description Position Cutting Guide to Subdivide to Pieces 34915 Door (Not Interchangeable) for 2000 34937 Knob Transporter Guide (n° 1) for 2000 34960 for 2000 Blade Guide Ring Nut in Aluminium (n°...
  • Page 21: Electrical Schematics

    Electrical Schematics Model BS-IT-1829-L 10254...
  • Page 22: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 23: Product Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 24 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
