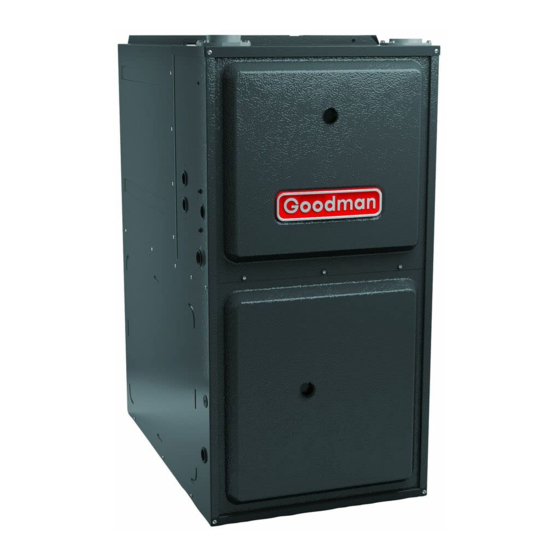

Single-stage, multi-speed ecm gas furnace up to 96% afue, heating input: 40,000-120,000 btu/h

Advertisement

Heating Input: 40,000-120,000 BTU/h
Standard Features
• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Single-stage gas valve
• Durable Silicon Nitride igniter
• Quiet single-speed induced draft blower
• Self-diagnostic control board with constant
memory fault code history output to a LED
• All models comply with California 40 ng/J
Low NOx emissions standard
• Can not be installed in California's South Coast
AirQuality Management District (SCAQMD)
and San Joaquin Valley Air Pollution Control
District (SJVAPCD).
• AHRI Certified; ETL Listed
SS-GR9S96_GD9S96-R32
Cabinet Features
• Designed for multi-position installation -
GR9S96: upflow, horizontal left or right
GD9S96: downflow, horizontal left or right
• Certified for direct vent (2-pipe)
or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting -
GR9S96/upflow models only
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (Q
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with
easy-cut tabs for effortless removal in
bottom air-inlet applications
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the Lifetime Heat Exchanger Limited Warranty (good
for as long as you own your home), 10-Year Unit Replacement Limited Warranty and 10-Year Parts Limited Warranty, online registration must be
completed within 60 days of installation. Online registration is not required in California or Québec.
Florida differs in some cases.
www.goodmanmfg.com
GR9S96 / GD9S96
Single-Stage, Multi-Speed
ECM Gas Furnace
Up to 96% AFUE
Contents
Nomenclature ............................................2
Product Specifications ............................... 3
Dimensions ................................................5
Airflow Specifications ................................7
Wiring Diagram ........................................13
Accessories ..............................................14
) ≤ 2%
Leak
The duration of warranty coverage in Texas and
05/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR9S96 and is the answer not in the manual?

Questions and answers

Summary of Contents for Goodman GR9S96

  • Page 1: Table Of Contents

    Standard Features Cabinet Features • Heavy-duty aluminized-steel tubular heat exchanger • Designed for multi-position installation — GR9S96: upflow, horizontal left or right • Stainless-steel secondary heat exchanger GD9S96: downflow, horizontal left or right • Single-stage gas valve • Certified for direct vent (2-pipe) •...
  • Page 2: Nomenclature

    Nomenclature 7,8,9 13,14 Brand Engineering G - Goodman® Brand Major/Minor Revisions A - Initial Release B - 1st Revision Configuration R - Upflow/Horizontal N = < 40 NG/J NOx D - Downflow/Horizontal Motor Cabinet Width 9 - Nine Speed ECM A - 14"...
  • Page 3: Product Specifications

    GR9S96 Product Specifications GR9S96 GR9S96 GR9S96 GR9S96 GR9S96 GR9S96 GR9S96 0403AN 0603BN 0803BN 0804CN 0805CN 1005CN 1205DN Heating Data High Fire Input¹ 40,000 60,000 80,000 80,000 80,000 100,000 120,000 High Fire Output¹ 38,440 57,660 76,880 76,880 76,880 96,100 115,320 AFUE²...
  • Page 4 GD9S96 Specifications GD9S96 GD9S96 GD9S96 GD9S96 GD9S96 0403BN 0603BN 0804CN 1005CN 1205DN Heating Data High Fire Input¹ 40,000 60,000 80,000 100,000 120,000 High Fire Output¹ 38,440 57,660 76,880 95,000 114,000 AFUE² Temperature Rise Range (°F) 25-55 35-65 40-70 40-70 45-75 Vent Diameter³...
  • Page 5: Minimum Clearances To Combustible Materials

    GR9S96 Dimensions Discharge Discharge 28¾ 6½ ¾ 2¾ 6½ ¾ Air Intake 2⅝ 1⅞ 2" Pipe 19½ Center Dimple Vent/ Flue Pipe Left-Side Alternate For Alternate 2" PVC Drain Trap Vent/ Flue Air Intake Pipe ¾ Exterior Holes 3" Location...
  • Page 6 GD9S96 Dimensions 6½ 2⅝ 2½ 18¼ 1⅝ 1⅞ 1⅜ 1⅞ Alternate Vent/ Low-Voltage 1½ Electrical Outlet Low-Voltage Electrical Outlet Alternate Gas Alternate Gas Supply High-Voltage Electrical Outlet 25⅛ 34½ 25⅛ 14⅞ 14¾ 14¾ 11⅜ 11⅜ 6⅞ 6⅞ 4⅛ High-Voltage 18⅛ Drain Trap Holes Electrical Outlet Unfolded Flanges...
  • Page 7: Airflow Specifications

    GR9S96 Heating Airflow Data CFM & Temperature Rise vs. External Static Pressure External Static Pressure, (Inches Water Column) THERMOSTAT Model TAP # CALL Rise Rise Rise Rise Rise F01^^ F02^ 1079 1055 1027 GR9S96 W/W1 0403A* F01^^ F02^ 1218 1178...
  • Page 8 GR9S96 Cooling & Circulation Airflow EXTERNAL STATIC PRESSURE (INCHES WATER COLUMN) THERMOSTAT MODEL TAP # CALL Watts Watts Watts Watts 1079 1055 1027 F04^ GR9S96 Y/Y1, Y2, G 1135 1106 1078 1049 1021 0403A* 1189 1163 1138 1111 1085 1059...
  • Page 9 GR9S96 Cooling & Circulation Airflow (Contd.) EXTERNAL STATIC PRESSURE (INCHES WATER COLUMN) THERMOSTAT MODEL TAP # CALL Watts Watts Watts Watts 1008 2026 1981 1929 1901 1858 1819 1773 1733 1921 1879 1840 1791 1751 1705 1656 1610 F04^ 1804...
  • Page 10 GD9S96 Heating Airflow Data CFM & Temperature Rise vs. External Static Pressure External Static Pressure, (Inches Water Column) THERMOSTAT Model TAP # CALL Rise Rise Rise Rise Rise F01^^ F02^ GD9S96 W/W1 0403B* F01^^ F02^ 1197 1150 1102 1057 1014 GD9S96 W/W1 0603B*...
  • Page 11 GD9S96 Cooling & Circulation Airflow EXTERNAL STATIC PRESSURE (INCHES WATER COLUMN) THERMOSTAT MODEL TAP # CALL Watts Watts Watts Watts F04^ GD9S96 Y/Y1, Y2, G 1106 1076 1044 1010 0403B* 1156 1125 1096 1063 1028 1237 1205 1174 1145 1115 1081 1050 1016...
  • Page 12 Temperature Rise Range Chart www. goodmanmfg.com SS-GR9S96_GD9S96-R32...
  • Page 13: Wiring Diagram

    Wiring Diagram TO 115 VAC/ 1 ⌀ /60 HZ SURFACE POWER SUPPLY WITH IGNITER OVERCURRENT PROTECTION DEVICE VALVE FRONT COVER WARNING: DISCONNECT 2 CIRCUIT POWER BEFORE PRESSURE CONNECTOR SERVICING. WIRING SWITCH TO UNIT MUST BE PROPERLY POLARIZED DISCONNECT AND GROUNDED FLAME ID BLOWER SENSOR...
  • Page 14: Accessories

    Accessories GR9S96 GR9S96 GR9S96 GR9S96 GR9S96 GR9S96 GR9S96 Model Description 0805CNA 1005CNA 1205DNA 0403ANA 0603BNA 0803BNA 0804CNA 72950 Concentric Vent Kit (2") √ √ ― √ √ √ √ 72951 Concentric Vent Kit (3") √ √ √ √ √ √...
  • Page 15 Notes SS-GR9S96_GD9S96-R32 www.goodmanmfg.com...
  • Page 16 Notes Our continuing commitment to quality products may mean a change in specifications without notice. ©2024 • Houston, Texas • Printed in the USA. www. goodmanmfg.com SS-GR9S96_GD9S96-R32...
