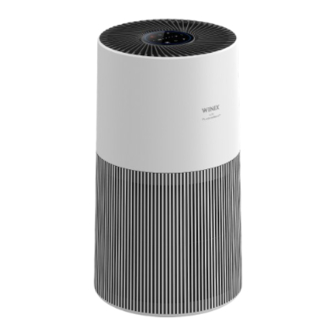

Winix C610 User Manual

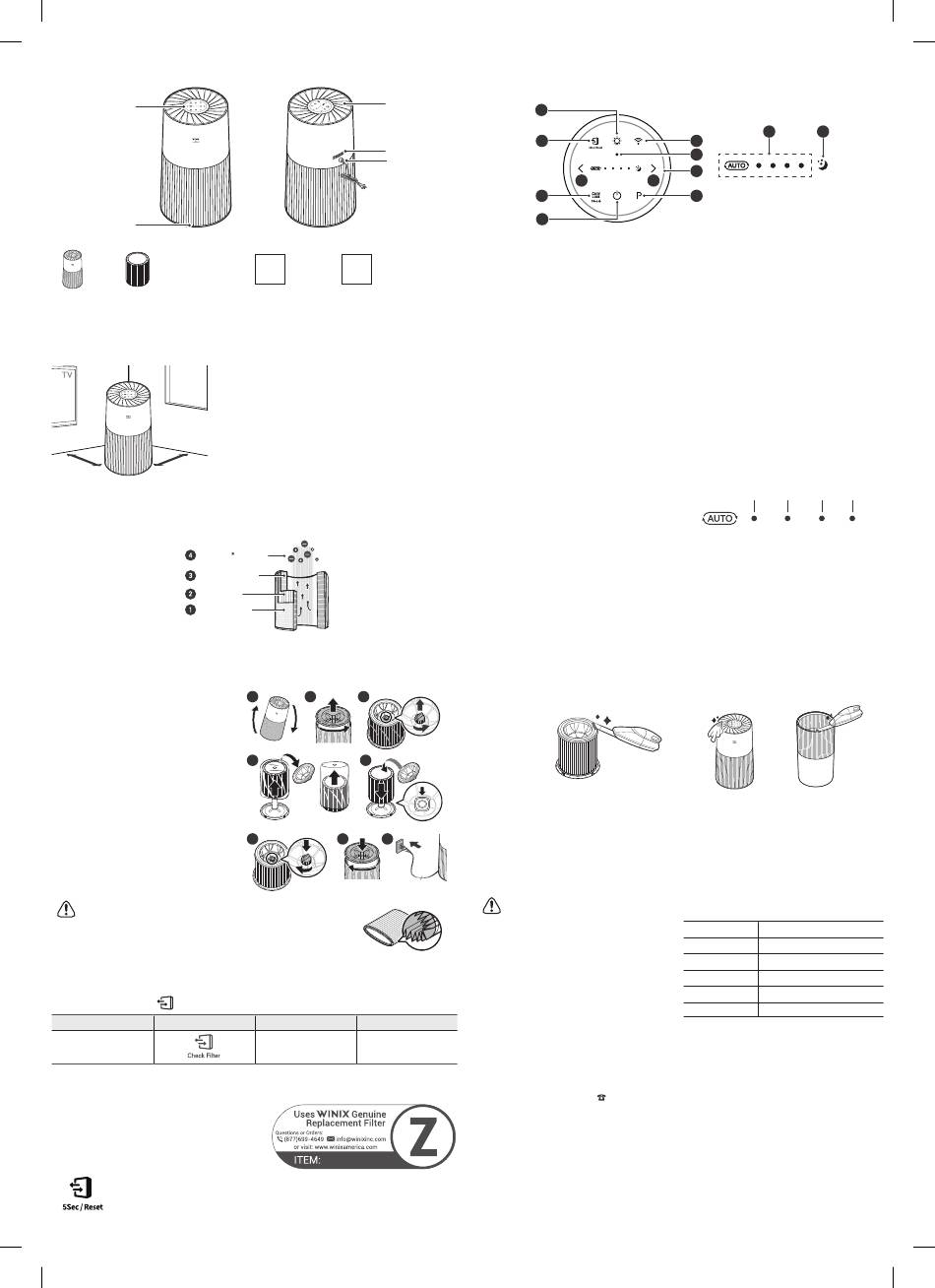

MODEL PART DIAGRAM
FRONT
Control Panel
Base
PACKAGE CONTENTS
360º All-in-One
Unit
True HEPA Filter(2)
* For a Certified Refurbished Air Purifier, there will be 1 360º All-in-One True HEPA Filter included; equivalent to a 1-year
supply.
WHERE TO USE
Allow 12 ~ 18 in. of space between TVs, radios, and other
electronics.
electronics may cause product malfunction.
Place indoors away from direct sunlight.
may cause product malfunction or failure.
Only place on hard, flat surfaces.
may result in abnormal noise and vibrations.
Allow at least 12 ~ 18 in. from walls for maximum air flow
12~18 in 12~18 in
12~18 in 12~18 in 12~18 in 12~18 in
4-STAGE AIR PURIFICATION
PlasmaWave Technology
Activated Carbon Filter
True HEPA Filter
Fine Mesh Pre-Filter
INITIAL OPERATION
01. Turn the product upside down.
02. Grab the handle at the bottom of the product, turn
counter clockwise, and pull out the filter cover.
03. Turn the upper cap of the filter counter clockwise
to separate it.
04. After disassembling the filter cover, remove the
protective vinyl in the filter.
05. After reassembling the filter, close the filter cover.
(When assembling the filter cover, insert it
according to the direction of the square hole)
06. Assemble the filter top cap by turning it
clockwise.
07. After installing the filter, turn the handle clockwise
to close the filter cover.
08. Return the product to an upright position and
resume normal operation.
N O T I C E
Cracks on both ends of the half-folded filter are not defects.If you spread it out and
assemble it into a cylindrical shape, you will have a problem-free shape.
MAINTENANCE
When to Replace Filters
Filter Indicator Light
360º All-in-One
True HEPA Filter
• When the Check Filter indicator LED is on, it is time to replace the 360º All-in-One True HEPA Filter.
• Intervals between filter replacement may vary depending on environment.
REPLACING FILTERS
Resetting Filter Life:
After replacing the 360º All-in-One True HEPA Filter While the unit is on, hold the Filter Reset
Button for at least 5 seconds until you hear the beep. After the beep, the Filter Replacement
Indicator will disappear.
BACK
Air Outlet Vent
Smart Sensor
Power Plug
User
Wi-Fi Setup Guide
Manual
Electromagnetic interference from certain
Direct exposure
Flimsy or slanted surfaces
Air Purification means it
removes inanimate particles
01 02 03
04 05
06 07 08
When to Ser vice When to Replace
Clean once every Lasts Approx.
14 days 12 months
1712-0121-00

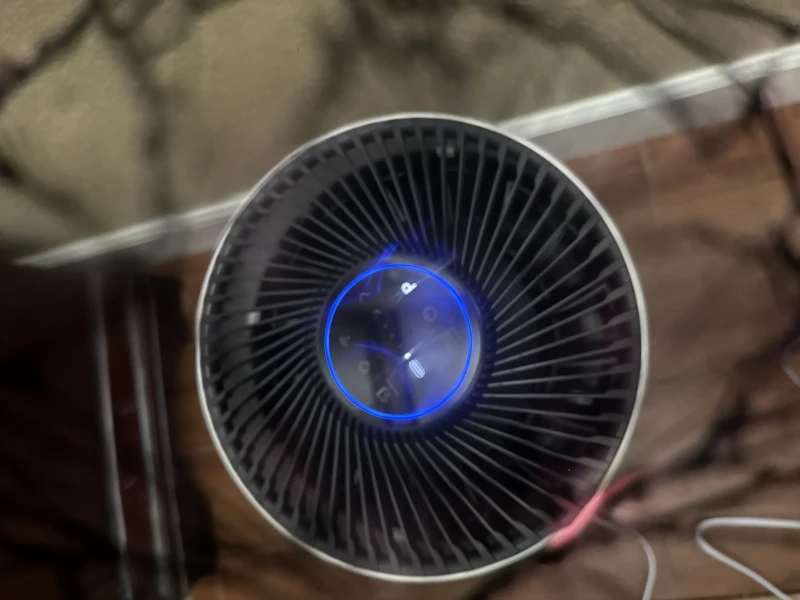

CONTROL PANEL
02
01
03 03
04
05
01. Filter Reset Button / Indicator
• After replacing the 360º All-in-One True HEPA Filter,
press and hold the Filter Reset Button for at least
5 seconds until the Filter Replacement Indicator turns
off.
• LED light indicates when it is time to change the filter.
02. Light Mode Button
Use the light button to set the desired display brightness.
The display brightness cycles in the order of 100% → 70% →
30% → OFF. Other features remain unchanged.
03. Fan Speed Indicator Buttons
Indicates the current fan speed.
• Use the Fan Speed arrow buttons to set the desired fan
speed. Fan speeds cycle over in this sequence:
Auto, Low, Medium, High, Turbo, Sleep
04. Child Lock Button / Indicator
• Child Lock Button for 3 seconds, Child Lock will be
initiated and the buttons will not operate. A chime will
sound if pressed. To cancel, press the child lock button
for 3 seconds.
• LED light indicates whether Child Lock mode is enabled
or disabled.
05. Power Button
Turns the unit on or off. During the first 30 seconds of
power, the Air. Quality Indicator will cycle through Blue,
Green, Amber and Red colors.
• Smart Sensor takes approximately 30 seconds to
detect the air quality in the environment before normal
operation begins.
06. Wi-Fi Pairing Button / indicator
• A quick press will turn Wi-Fi on/off.
• A long press of 3 seconds will activate pairing mode.
• A Wi-Fi indicator will display on the front while Wi-Fi is
active.
• Indicates whether Wi-Fi Mode is enabled or disabled.
CLEANING CARE
Cleaning the Filters:
Clean with a vacuum or a soft brush.
• Only clean the Pre-Filter.
cannot
• This filter be washed.
• Intervals between filter cleaning may vary depending on
the air quality.
N O T I C E
• When cleaning the unit, always unplug the power cord
first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is unplugged.
• Do not use benzene, alcohol, or other volatile fluids,
which may cause damage or discoloration.
Contact Winix for product related inquiries and customer service
• Dedicated Call Center: (877) 699-4649
• Website: www.winixamerica.com
To expedite service, please specify the model name and number, the nature of the problem, your
contact information, and your address.
For Troubleshooting or Frequently Asked Questions, please visit: https://winixamerica.com/faq/
10 11
06
07
08
09
07. Light Sensor
Detects the amount of ambient light in the environment.
When in Auto Mode, the light sensor detects when to put
the unit into Sleep Mode.
08. Air Quality Indicator
Color coded LED light indicates one of four levels of Air
Quality : Red (poor), Amber (fair), Green (average) and
Blue (good).
09. PlasmaWave ® Button / Indicator
• Enables or disables PlasmaWave ®
When the unit is running, you may hear a chirping or
buzzing sound. The sound is from particles passing
through. PlasmaWave ® , it is normal and does not signify
®
product failure. Press the PlasmaWave Technology
button when the unit is on to enable or disable this
feature.
• Indicates whether PlasmaWave ® is enabled or disabled.
10. Mode Indicator
Indicates whether Auto & Fan Speed Mode is enabled or
disabled.
Low Medium High Turbo
11. Sleep Mode Indicator
Indicates whether Sleep Mode is enabled or disabled.
Cleaning the Exterior & Interior:
Wipe with a soft damp cloth using room temperature
water.
• Afterwards, wipe it down with a dry cloth.
Open the front panel and clean the interior with a vacuum
cleaner.
• For optimal performance, clean every 1 - 2 months.
SPECIFICATIONS
Model
C610
Voltage
AC 120 V / 60 Hz
Power Rate
45 W
Dimensions
10.42" W × 10.42" D × 18.54" H
Weight
8.35 lbs
Filter SKU Filter Z: 1712-0121-00
Exterior design, and product specifications may be changed
without prior notice to improve product performance.
