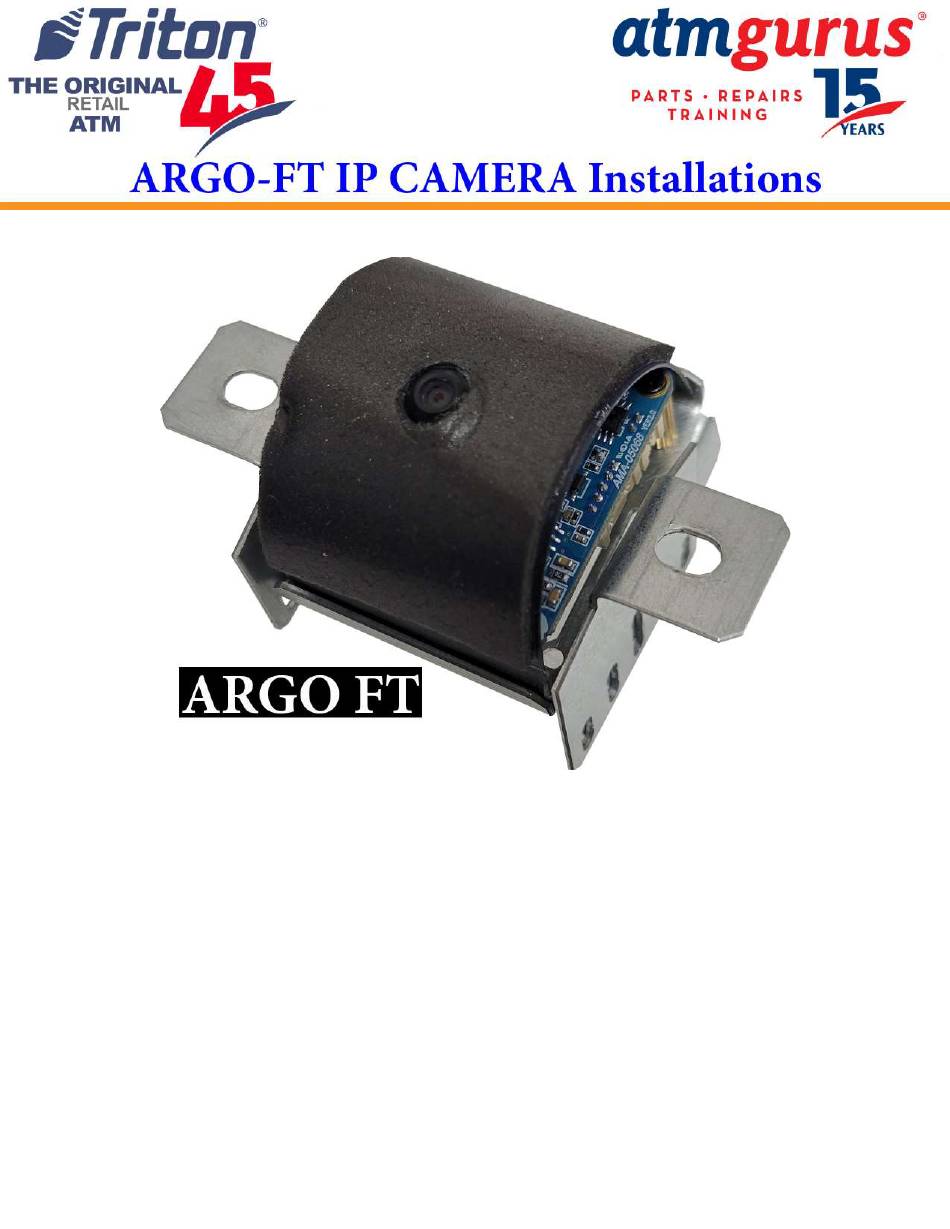

- Page 1 ©2024 Triton Systems of Delaware, LLC. All Rights Reserved. ATMGurus®, the ATMGurus logo and tag- line, Triton®, and the Triton logo are all registered trademarks of Triton Systems of Delaware, LLC. e third party trademarks that may be identi ed herein are the trademark of their respective owners. Triton disclaims any affi...
-
Page 2: Contact Information
is manual applies to all service personnel involved in installing, con guring, or upgrading components on Triton ATMs nationwide and abroad. is con guration guide provides information and easy-to-follow instructions for the ARGO-FT IP Camera basic settings and operations. TDN 07103-00457 Rev. B... -
Page 3: Tools Required
Nut | #8-32 | Hex Nut | Ext. Tooth Washer Cable Clip | 3/4” Round | Screw-In | Quick Release Camera Window Bracket | Sign Panel Retainer CD | Vendor IP Camera Instructions | Vendor IP Camera TDN 07103-00457 Rev. B Triton Systems ©... - Page 4 • Section 1, Remove Installed Camera in ARGO-FT, page 4. • Section 2, ARGO-FT without installed camera, page 5. • Section 3, Remove/Install ARGO-FT Sign Panel Bracket, page 6. • Section 4, ARGO-FT Camera Installation, page 6. **NOTE** Before starting the camera installation, perform proper shut down of the unit and disconnect the input power cord from the power supply.
- Page 5 Remove the bracket from the unit. Remove the cover over the lens hole, BLUE arrow, Le Image. Remove the smoked window from the bracket, Right Image. TDN 07103-00457 Rev. B Triton Systems ©...
- Page 6 Le Image. Obtain from kit, Secure Cable clip, Item-9, and #8-32 Hex Nut with EXT tooth washer, Item-8. Secure clip to post using nut, with 11/32” nut driver or 11/32” socket, Right Image. TDN 07103-00457 Rev. B Triton Systems ©...
- Page 7 7. Remove the backing from one side of the Velcro Loop/Hook dots, and attach one near the end of the dongle, and attach one to the other end of the dongle, Right Image. DO NOT remove the backing, until later steps. TDN 07103-00457 Rev. B Triton Systems ©...
- Page 8 9. Obtain from kit, #8-32, 3/8in, screws, Item-7. Set the camera in place and attach it to the bracket with two screws, YELLOW arrows. 10. Route the cable across the top and tuck it in the channel behind the light bracket, Le Image. Press cable into the clamp, arrow, Right Image. TDN 07103-00457 Rev. B Triton Systems ©...
- Page 9 Center Image. Go to step 18. 17. Remove the backing from the two pieces of Velcro. Press the Camera Dongle Velcro, YELLOW arrow, against the cabinet wall, Right Image. TDN 07103-00457 Rev. B Triton Systems ©...
- Page 10 22. Re-install dispenser. Remove tools and unused parts. Connect input power cord to ATM power supply. Power up the ATM and set for normal operations. 23. Use provided CD/Instructions to setup video on a PC or a program supported by the ATM service provider. E D TDN 07103-00457 Rev. B Triton Systems ©...
