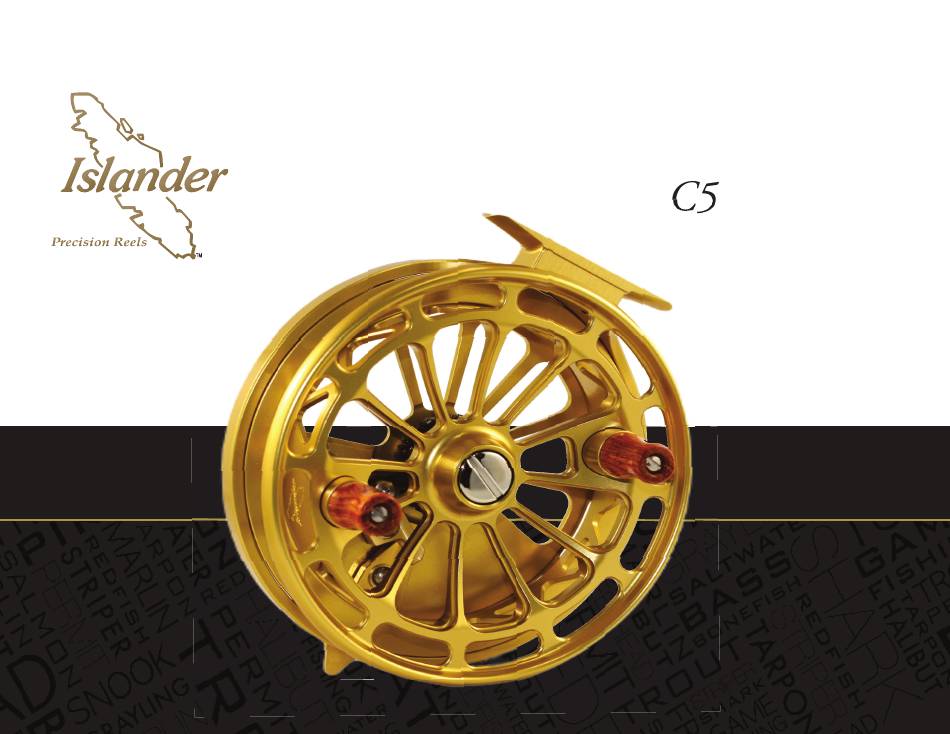

- Page 1 Maintenance Manual...
-
Page 2: Major Components
Major Components Spool Spoo Frame Spindle Screw Handle Base Handle Foot Travel Lock Knob Bearing Clicker Spindle Clicker Spring Clicker Plate Clicker Gear Free-spool Lever... -
Page 3: General Information
General Information Thank you for purchasing the Islander C5 series float reel In this manual, you will find information on how to take care of your new reel and troubleshoot any problems you may have with this reel. By following these instructions, you will get a lifetime of enjoyment out of this product. - Page 4 How to Disassemble the Reel To disassemble your reel: 1. Remove the spindle screw by turning it counterclockwise using a snug-fitting flathead screwdriver. There is a captive rubber o-ring on the underside of the spindle screw that is important to the function of the reel. Make sure it’s present and properly seated before reassembly.
- Page 5 Cleaning and Lubricating your Reel Your reel comes pre-lubricated from the factory. To maintain optimal performance, replacing this lubrication should be done periodically, after submersion, or whenever the free spool lever feels gritty or sticky Rinse the reel after every use in heavily sedimented waters to prevent buildup and potential damage to components. The brass components will slowly patina over time.
- Page 6 Cleaning and Lubricating your Reel Spool 1. Remove old grease from the clicker gear using a small brush or rag. Grease 2. Ensure gear teeth are free of any sediment. 3. Wipe the bearings of any residue, being careful not to push any contaminants inside the bearings.
-
Page 7: Specifications
Specifications Diameter Width Weight Capacity 5.0 in. 1.0 in. 11 oz. 350yds. 20# mono backing Taking Care of Your Reel When storing your reel between outings, avoid leaving it in free spool or with the travel lock engaged, as this can put unnecessary strain on the clicker spring. Please note that the Travel Lock setting is intended for transport only and fishing on this setting will cause premature wear.
