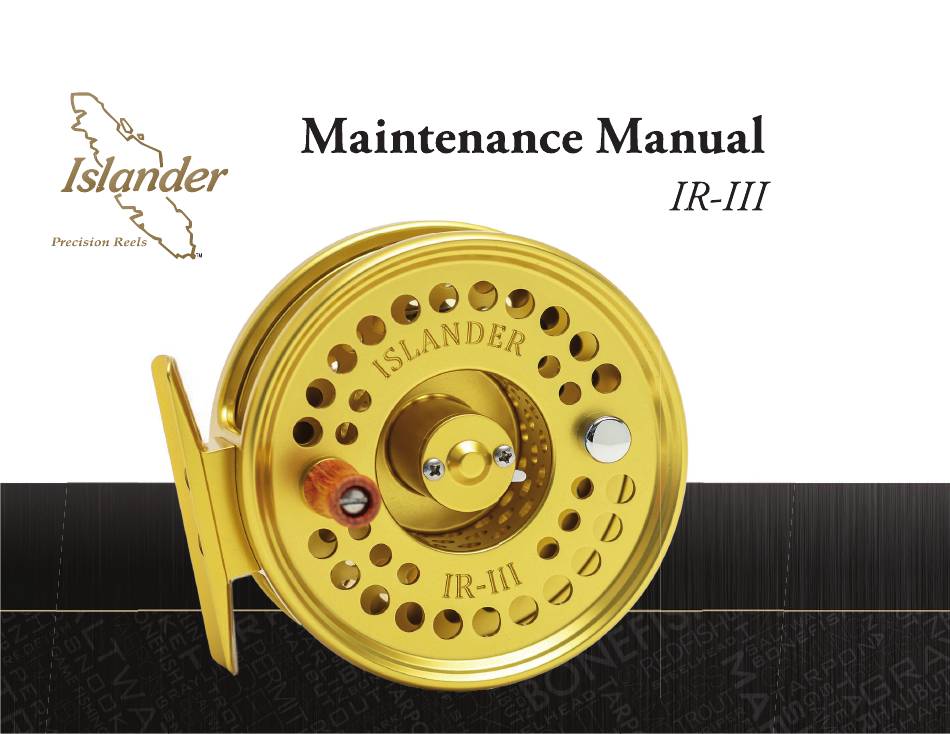

- Page 1 Maintenance Manual IR-III...
- Page 2 Major Components Major Com m ponents mponents s t t nents Frame Spool Foot Counter weight Latch Handle Adjustment knob Cover cap assembly Clicker Latch & Latch Latch & Spindle Gear Spring...
-
Page 3: General Information
• Rotation – 2 Oilite® Bushings • Machined Out of Aerospace Grade Aluminum – Every Islander reel starts as a solid puck of aluminum before CNC machines turn it into a finished product • Lifetime Limited Warranty* – The IR series is built to withstand the test of time so we stand behind it for its lifetime •... - Page 4 Lubricating Your Reel Your reel comes from the factory lubricated. Periodic lubrication is required to maintain optimum performance. D) Grease cam Note: Before oiling & greasing it’s important to E) Oil cam C) Oil post remove any grit from the external & internal components, especially the gear &...
- Page 5 Converting from Right to Left Hand Retrieve C) Clicker point A) Right-hand clicker B) Left-hand A) Right-hand B) Left-hand clicke clicker clicker Right-hand Clicker Orientation Left-hand Clicker Orientation 1) For Right-hand retrieve - rotate 2) For Left-hand retrieve - rotate right-hand clicker (A) so that its clicker left-hand clicker (B) so that its clicker point (C) faces inward towards the...
-
Page 6: Specifications
Specifications Line Weight Diameter Width Weight Capacity 5-6 wt. 3.4 in. 0.804 in. 4.94 oz. W5+100yds. backing W6+75yds. backing Taking Care of Your Reel Always change your tension adjustment to the lowest setting when storing in between outings. Please note that this IR series reel is designed for use with only one clicker engaged at a time. Using both clickers simultaneously will lead to early wear and effect the function of the reel. - Page 7 IR-III...
