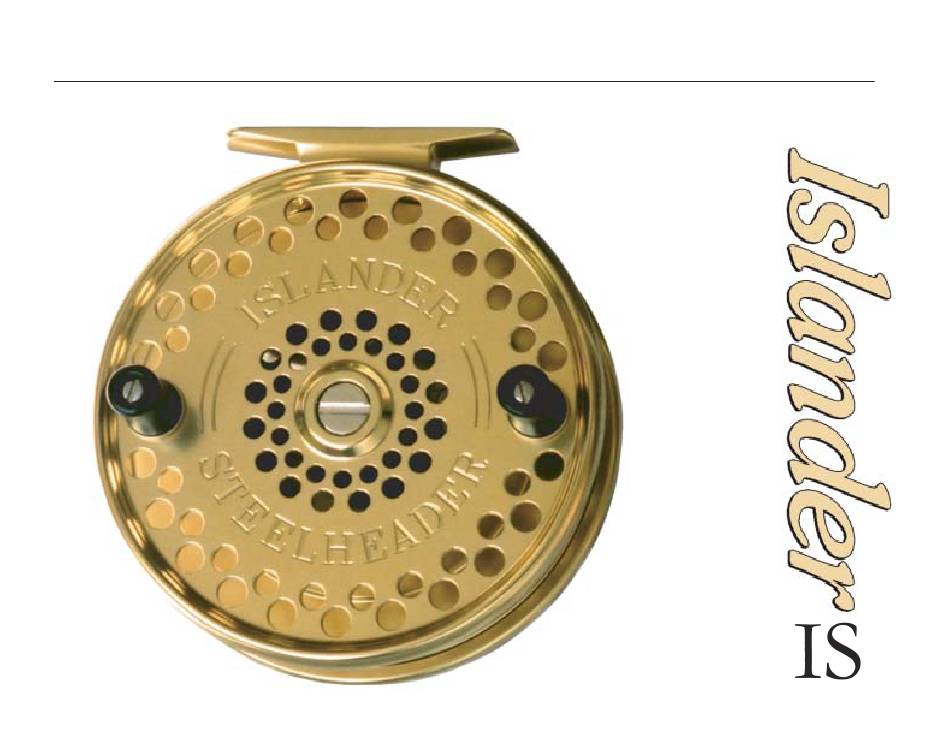

- Page 1 For parts and service Maintenance Instructions call toll free: 1-888-404-1119 www.mikesreelrepair.com For IS Float Reels...
- Page 2 Thank you for purchasing an Islander Steelheader model float reel. In this manual you will find information on how to take are of your new reel. Concise illustrations will help you identify, clean, and lubricate each important component to keep your reel performing like new.
- Page 3 For parts and service call toll free: 1-888-404-1119 How to Disassemble/Reassemble Your Reel www.mikesreelrepair.com Remove the spindle screw (2) by turning it counter- clockwise, using a snug-fitting screw driver or coin. (It is important that you choose a tool that fits well, as one that is too small may damage the spindle screw.) Once the screw is removed, you may notice that...
-
Page 4: Cleaning And Lubricating
Your reel comes lubricated from the factory . Cleaning and Lubricating Periodic lubrication is recommend to maintain Figure 3 optimum performance. 1) Clicker Spring Clean the inside of the frame (4) with a soft A) Grease cloth to remove any contaminants which Spindle may have collected. - Page 5 For parts and service call toll free: 1-888-404-1119 Remove all the old grease from the gear (6). You www.mikesreelrepair.com E) Grease may have to use a toothbrush or similar implement Figure 5 Teeth Of to accomplish this. Gear Clean the bearings (7 - there is another identical bearing opposite to the one shown) with a soft cloth to remove all the old grease and grit that has accumulated there.
- Page 6 It is possible to tune the intensity of the reels' click, to 1) Clicker Spring A) For a louder click a certain extent. For these adjustments, you will need to disassemble your reel. If you find that your reel is too quiet when the click-drag is engaged, push the clicker spring (1) in the direction indicated by the arrow marked (A) For a louder click.
-
Page 7: Major Components
For parts and service call toll free: 1-888-404-1119 Major Components www.mikesreelrepair.com Bearing Gear Clicker Assembly Foot Spool Handle Assembly Clicker Button Spindle Screw Frame... -
Page 8: Recommended Lubricants
Product Information Recommended Lubricants Islander recommends the use of Super Lube® brand oil and grease with Teflon® for all lubricating applications. Super Lube® is manufactured by: Synco Chemical Corp., N.Y. Teflon® is a registered trademark of E.I. duPont DeNemours & Co.
