3nStar PTA0130 User Manual

Hide thumbs

Advertisement

Table of Contents

USER'S MANUAL
PTA0130

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTA0130 and is the answer not in the manual?

Questions and answers

Related Manuals for 3nStar PTA0130

Summary of Contents for 3nStar PTA0130

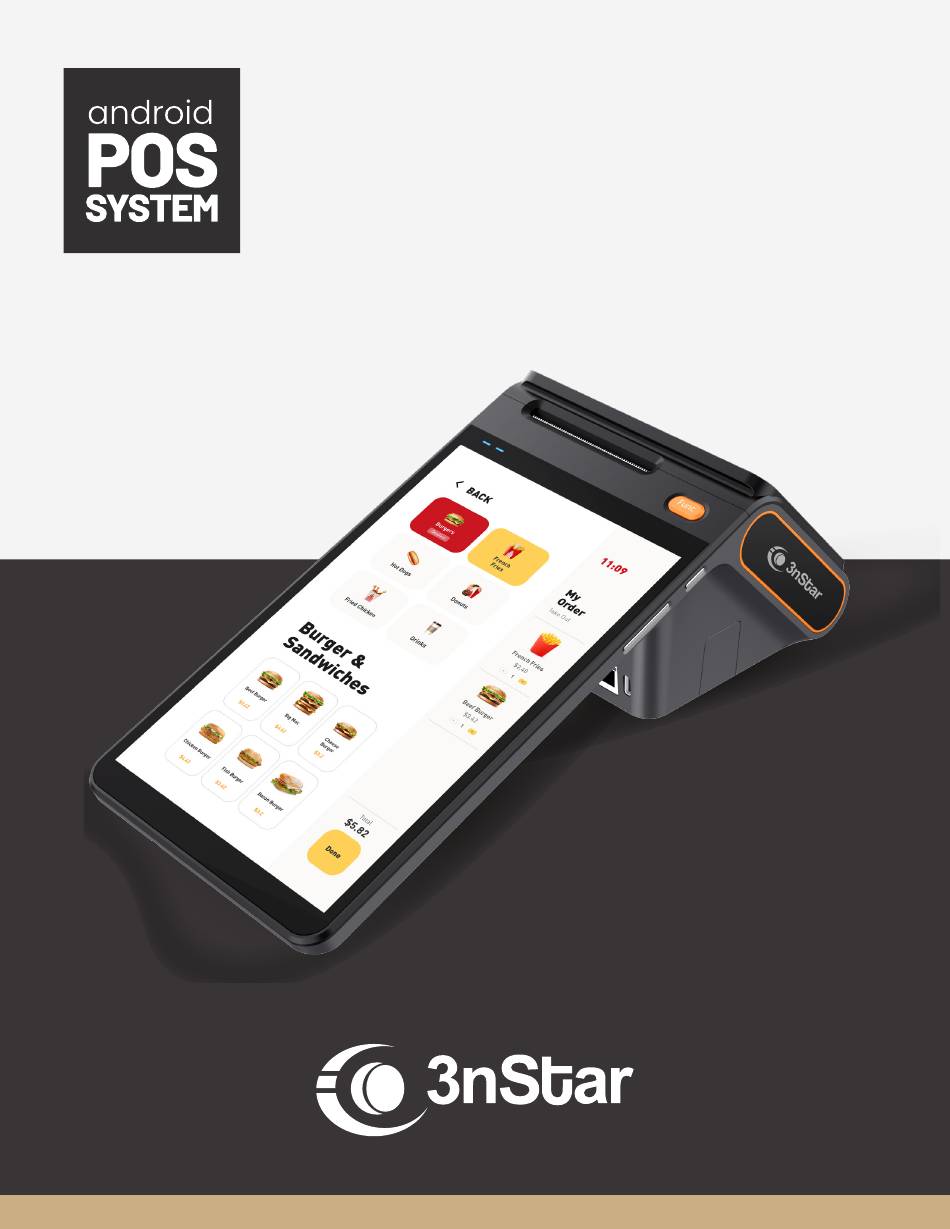

  • Page 1 USER’S MANUAL PTA0130...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS • Product Description • Battery Installation • Open the Battery Cover and Remove the Battery • Remove Insulation Strip and Align the Battery • Product SIM Installations • Printing Instructions • Product Operations Guide...
  • Page 3 DISCLAIMER DISCLAIMER To ensure the safe and correct use of this product, prevent danger, and avoid damage, please read this manual carefully before using the device and strictly follow the instructions. Check the equipment for any abnormalities before powering it on and using it. Keep this manual properly after reading for future guidance.

  • Page 4: Product Description

    Product Description: Customer display Camera Printer Funcional Key Indicator Power Key Microphone Speaker Volume Key Interface 8 - inch screen Battery Cover FEATURE DESCRIPTION A secondary screen that faces the customer, displaying transaction Customer Display details or promotional content. Integrated device for printing receipts, labels, or other Printer transaction-related documents.
  • Page 5 SIM Card Slots Fiscal memory room PSAM Card Slots TF Card Slots FEATURE DESCRIPTION Short press: wake up the screen, lock the screen. Long press: long press for 2-3 second in power off mode to Power On switch on the device. Long press for 2-3 seconds in normal operation mode to select power off or reboot.

  • Page 6: Battery Installation

    Battery Installation: Following these steps ensures the battery will be installed correctly and securely in the device. OPEN THE BATTERY COVER AND REMOVE THE BATTERY Figure 1: Slide the battery cover in the direction of the arrow to open it. Once open, take out the battery from the compartment. REMOVE INSULATION STRIP AND ALIGN THE BATTERY Figure 2: Carefully peel off the insulation strip from the battery.

  • Page 7: Product Sim Installations

    SECURE THE BATTERY Figure 5: Once the battery is in place, gently press down to ensure it is securely seated. The surrounding frame should hold the battery firmly. REINSTALL THE BATTERY COVER Figure 6: Align the battery cover over the compartment. Slide the cover in the direction of the arrow to close it.
  • Page 8 Power On Long press the power key for about 3 seconds. SIM Card, PSAM Card, & TF Card Installation 1. Take out the battery cover, and the card sockets will be shown. 2. Push the card into the socket correctly. Be sure the card is in the right position.

  • Page 9: Printing Instructions

    Printing Instructions: This device supports 58mm thermal paper with specifications of 57±0.5mm*50mm 1. Please open the paper container lightly. 2. Feed the paper correctly into the paper container in the direction as shown and pull some paper outside the cutter. 3.
  • Page 10 Scan 1D / 2D Code 1. Place the electronic 1D/2D code, as you would with your cellphone, down towards the camera vertical as shown below. Be sure that the 1D/2D code is facing the camera. Fiscal Memory Room / Interface Specification 1.
  • Page 11 Lead Seal Screw Positions Illustration: The image shows the location of the lead seal screw, which should be removed to access the fiscal memory room. Removing Screws: Remove the screws from the bottom shell. Remove the lead seal screws as indicated in the illustration. Indicator and Status Logic Long press the power key for about 3 seconds.
  • Page 12 CHARGE STATUS INDICATOR CHARGE STATUS INDICATOR LIGHT Battery Charged Steady Green Light Battery Level Warning 10% Steady Red Light Charging Steady Yellow Light NETWORK STATUS INDICATOR NETWORK STATUS INDICATOR LIGHT Connection to Network Error Red Light Networking Flashing Yellow Light Networking Connection Successful Steady Green Light Data Transfers...
  • Page 13 • Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
