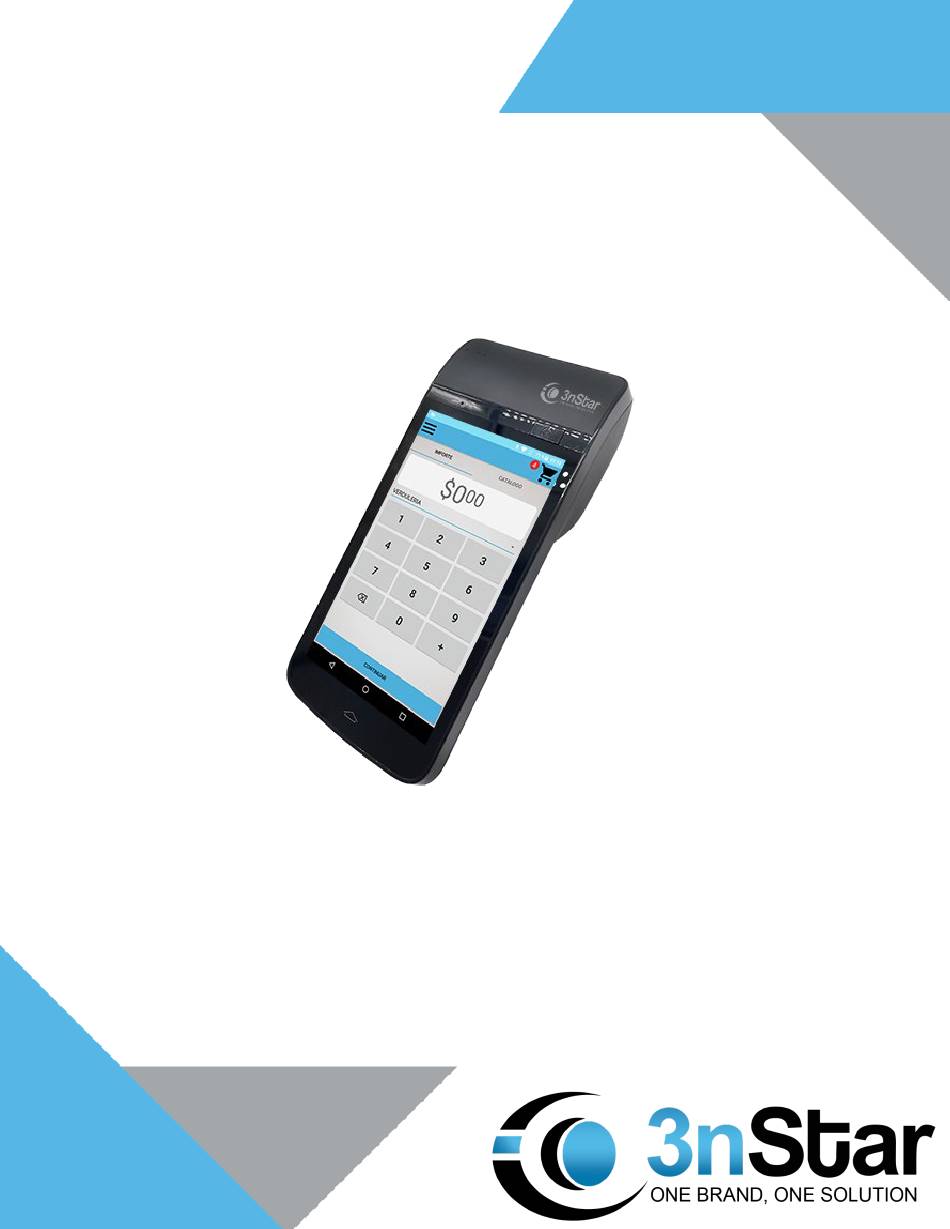

- Page 1 USER MANUAL PTA0010 User Manual PTA0010 Point of Sale Terminal...
-
Page 2: Table Of Contents
PTA0010 User Manual TABLE OF CONTEXT 1. General Description ........................1 1.1 Unique Functions ......................1 1.2 Excellent Functions ......................2 1.3 Hardware Introduction ..................... 2 1.4. Dimension ........................5 1.5. Accessories ........................5 1.6. Specifications ........................6 1.7. Power On/Off ........................7 2. - Page 3 PTA0010 User Manual Important Safety Information • Please read these safety instructions carefully. • Keep this user manual for later reference. • Before turning on the machine, please make sure that all electric power meets the requirements, (such as the electrical pressure and frequency), and that your electrical outlet is connected to the ground.
- Page 4 PTA0010 User Manual Cautions • Please use the system shutdown method to power off the machine, and please don’t pull the plug or shut off the power directly, or it will affect the normal use of the machine. • To avoid damages from high and low voltage to the machine, please pull the plug or shut off power of the plug after shutdown.
-
Page 5: General Description
PTA0010 User Manual Maintenance of the Surface and Screen • Please use soft dry cloth to clean it. o Please clean the machine when it’s in the shutdown state. o Please use slightly damp and antistatic cloth to wipe terminal screens. -
Page 6: Excellent Functions
PTA0010 User Manual 1.2 Excellent Functions • There are multi-format front desk software (optional) for retail, convenience stores, restaurants, supermarkets, etc., which can directly access remote databases through Webservice, establish a chain network, and support online upgrades. • Adopting 6'' LCD full-screen touch experience, high-definition display resolution, can realize graphical software interface, and the appearance of the device is fashionable. - Page 7 PTA0010 User Manual 1. Power key: long press to power on or power off/Short press to activate or close the screen 2. Display: Display and touch operation 3. HOME key: short press to fast return to the main interface, long press to manage tasks under operation 4.
- Page 8 PTA0010 User Manual 10. Paper Storehouse: Install printer paper, installation direction is downward 11. Camera: Can be used to scan codes and take photos 12. Battery Compartment: Insert the battery with its metal contact up and cover the battery 13. Loudspeaker: Sound broadcast 14.
-
Page 9: Dimension
PTA0010 User Manual 1.4. Dimension 1.5. Accessories 1. PTA0010 Host x1 2. Charger x1 3. User Manual x1... -
Page 10: Specifications
PTA0010 User Manual 1.6. Specifications Processor Qualcomm4*A53，1.3GHz Memory 2 GB Storage 16GB System Android10.0 LCD screen 5.98"TFT LCD,720*1280 resolution Touch screen Capacitive Bluetooth BT 4.2(BR/DDR+BLE) WIFI IEEE 802 11a/b/g/n/ac GPS+BeiDou+GLONASS LTE FDD: B1/B3/B5/B7/B8/B20/B28A LTE TDD: B38/B40/B41 Peripheral WCDMA: B1/B5/B8 GSM: 850/900/1800/1900MHz ISO/IEC 14443 A&B，ISO/IEC 15693，... -
Page 11: Power On/Off
PTA0010 User Manual 1.7. Power On/Off • Power on Long press the power key. The green indicator light on the left side is lit up. Keep to long press the power key. After about 3 seconds, it will show boot screen. -
Page 12: Battery, Sd Card, Sim Card And Thermal Paper Installation
PTA0010 User Manual 2. Battery, SD Card, SIM Card and Thermal Paper Installation 1. Open the rear cover, and inward pull it lightly in the notch area 2. Insert SD card, Sim Card 1 and Sim card 2 in the correct position... - Page 13 PTA0010 User Manual 3. Insert and pull out the battery • Insert the battery: the metal contact of the battery should be aligned to the battery contactor in the machine. Gently press the battery downward, and flat push it in. Pull out the battery: gently pull it in the notch area, meanwhile, lift the battery up and take it out.
-
Page 14: Network Settings Instruction
PTA0010 User Manual 4. Install the printer paper to the direction of the paper roll shown in the following picture below Note: The printer paper above is in thermal form. Only one side is available for printing. Please carefully refer to the picture above for installation. -
Page 15: Application Program Management
B. PTA0010 Terminal Auto-Restart (or turn off) • Reasons Analysis and Solutions The occasion of PTA0010 auto turn off or restart occurs very o�en in working status (or just a�er startup). o Please check whether the lithium battery contacts well and whether the contact point is oxidized. - Page 16 Power supplies or other high-frequency equipment (such as interphones and mobile phones) affects the screen or the machine. o Please make sure the PTA0010 terminal is away from the high-voltage and high- frequency equipment. F. USB Equipment Cannot Be Used •...
