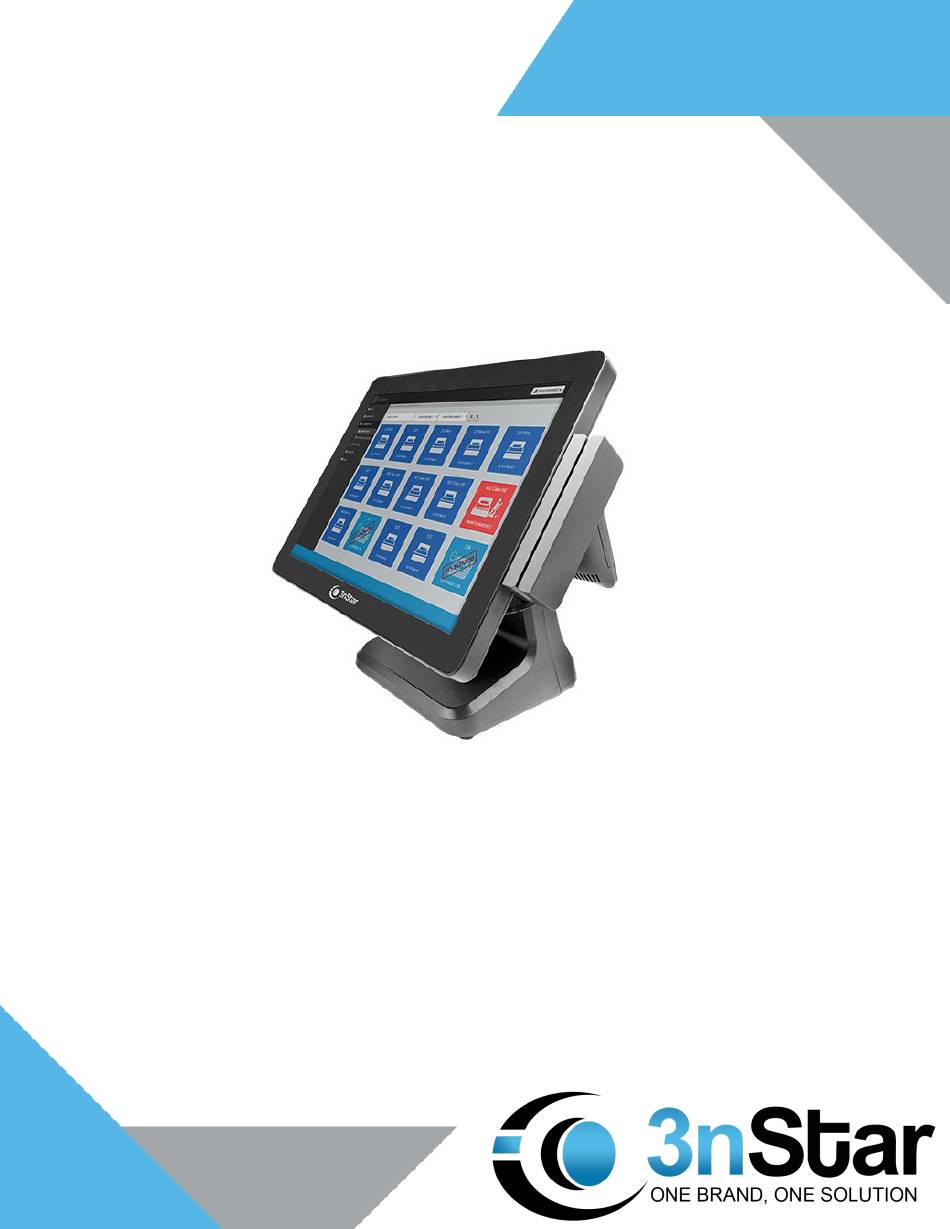

- Page 1 USER MANUAL PTE0120 Point of Sale System J6412...
-
Page 2: Table Of Contents
Table Of Contents Safety Precautions…………………………………………………………………………1 Initial Installation…………………………………………………………………………...2 Touch POS Appearance…………………………………………………………………..3 Product Description………………………………………………………………………4-9 1. 15” inch LED Screen………………………………………………………………………..4-5 2. Touch Screen Parameter …………………………………………………………………..5 3. Motherboard Parameter……………………………………………………………………..6-7 4. Mainboard & I/O Port…………………………………………………………………………8-9 Dual Screen Settings………………………………………………………………………10-11 Appendix: Names of toxic and harmful substances or elements and their contents.. -
Page 3: Safety Precautions
PTE0120 User Manual Safety Precautions 1. Select a flat and vibration-free table to place the terminal 2. The location of the terminal should be chosen to avoid direct sunlight, and exposure to water and dust 3. Please keep terminal away from strong electromagnetic fields. -
Page 4: Initial Installation
PTE0120 User Manual Initial Installation Unpacking Immediately after unboxing the terminal, please verify if all products are none damaged. If product contains damaged hardware, please make sure to report the issue to the shipping company. Once reported the shipping company will immediately report the claim to the manufacturer. -
Page 5: Touch Pos Appearance
PTE0120 User Manual Touch POS Appearance PTE0120 POS 15-inch main display (resistance touch display) Power button 9.7-inch custom display - 3 -... -
Page 6: Product Description
PTE0120 User Manual Product Description 1. 15-inch LED display parameter Item Specification Unit Screen Diagonal Inch Active Area 304.128(H)×228.096(V) Pixel Pitch 0.099(H)×0.297(V) Resolution 1024(H)×768(V) Pixel Arrangement R.G.B. Vertical stripe Display Mode Normally Black LED life 50000 Hour White Luminance 350(Typ) -
Page 7: Touch Screen Parameter
PTE0120 User Manual Items Symbol Min. Max. Unit Conditions Supply Voltage -0.5 Operating Note ℃ Temperature Storage Note ℃ Temperature 15-inch touch screen parameter Size 326mm x 252mm Visual Area 304mm x 228mm（4：3） Resolution 1024 x 768 Refresh rate 60Hz Dot pitch 0.297mm x 0.297mm... -
Page 8: Motherboard Parameter
PTE0120 User Manual 3. Motherboard parameter Item Specification Form Factor Special Dimensions 190*140mm Layer 6 Layers Color Green Processor Intel Celeron J6412 2.0GHz Burst To 2.6GHz Processor （Elkhart Lake) Socket FCBGA1493 Heat dissipation No FAN Chips CPU_PWM MP2940+MP2941 Super I/O... - Page 9 PTE0120 User Manual Memory Type DDR4 2400MHz Max Memory 16GB Controller Intel® HD Graphics 1*DB15，1*Header Graphics EDP/LVDS 1，LVDS，Colay EDP Multi Display Connector 1*RJ45 PXE/RPL Boot Rom Wake Up On LAN USB2.0 USB3.0 BUZZER Other CMOS Battery COM1 Signal - 7 -...
-
Page 10: Mainboard & I/O Port
PTE0120 User Manual Main board & I/O Port Label Components JSPK Speaker JMIC SATA SATA SSD SATA-PWR 4 pin Hard disk power-supply port CLR_COMS Clean COMS setting JUSB USB2.0 JUSB USB2.0 JCOM2 COM2 port JCOM3 COM3 port F-PANEL Turn on/off ,Hard disk indicator... - Page 11 PTE0120 User Manual LVDS Connect LVDS display WIFI/BT Connect to WI-FI or Bluetooth MINI SATA Mini hard disk port JUSB USB 2.0 port JUSB USB 2.0 port SO-DIMM Memory port JUSB USB 2.0 port CPU-FAN CPU fans port VGA port(inside)
-
Page 12: Dual Screen Settings
PTE0120 User Manual 5. Dual screen settings A) Open the folder in turn ,Install VGA driver. Then reboot the computer. - 10... - Page 13 PTE0120 User Manual In the Desktop, Click the right mouse button, in turn , select ” Graphics Options” - “ Output To”-“Extended Desktop”-“Built-in Display +Monitor” - 11...
- Page 14 Warm Tips: 3nStar does not provide any data restoration and the backup service. 3nStar is not responsible for damage or loss of data, programs, or storage media. Please make sure you are in time to backup any information or programs that you consider valuable. Thank you for...
- Page 15 Appendix: Names of toxic and harmful substances or elements and their contents Hazardous substance Part Cr(Ⅵ) External × × ○ ○ ○ ○ device Cable part × ○ ○ ○ ○ ○ Switching × × ○ ○ ○ ○ power supply Mainboard ×...
- Page 16 - 4 -...
