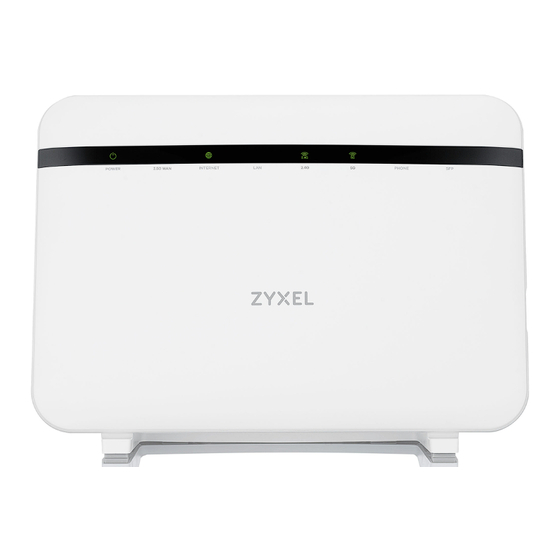

Zyxel EX5601 Detailed User Guide
1.
Accessing Hyperhub manager web configurator ........................................................................................................... 2
2.
Changing WiFi name (SSID) and password ..................................................................................................................... 3
3.
Enabling Guest WiFi ........................................................................................................................................................... 4
4.
Changing WiFi channel ...................................................................................................................................................... 6
5.
Connecting device with WPS ............................................................................................................................................ 7
6.
Changing DNS ..................................................................................................................................................................... 9
7.
UPnP ..................................................................................................................................................................................... 9
8.
Parental Control and URL Filtering ................................................................................................................................ 10
9.
Changing admin password ............................................................................................................................................... 10
10.
Reboot / Factory Reset ..................................................................................................................................................... 11
11.
Configuring USB Storage ................................................................................................................................................. 13
12.
Port Forwarding ................................................................................................................................................................. 15
13.
DMZ .................................................................................................................................................................................... 16
14.
Configuring static IP to client DHCP Binding ............................................................................................................. 17
15.
Dynamic DNS ..................................................................................................................................................................... 18
Confidential
Zyxel EX5601 Detailed User Guide / Jan 2024
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZyXEL Communications EX5601
Summary of Contents for ZyXEL Communications EX5601
-
Page 1: Table Of Contents
Reboot / Factory Reset ..............................11 Configuring USB Storage ..............................13 Port Forwarding ................................. 15 DMZ ....................................16 Configuring static IP to client DHCP Binding ......................17 Dynamic DNS ..................................18 Zyxel EX5601 Detailed User Guide / Jan 2024 Page 1... -
Page 2: Accessing Hyperhub Manager Web Configurator
(on the back of WiFi details card or device label), then click Login. Note: during first login, you will be asked to change the password. This is optional. 4. Click the menu icon and Connection Status to go to status dashboard. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 2... -
Page 3: Changing Wifi Name (Ssid) And Password
To change the WiFi password, navigate to Security Level in General page. Uncheck Generate password automatically and enter your desired password in the Password field. Press Apply on the bottom of the page to apply the change. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 3... -
Page 4: Enabling Guest Wifi
Guest/More AP page. Press the modify button on the first Guest WiFi Modify the Wireless Network Name field. Press OK on the bottom of the page to apply the change. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 4... - Page 5 To change the Guest WiFi password, navigate to Security Level. Uncheck Generate password automatically and enter your desired password in the Password field. Press OK on the bottom of the page to apply the change. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 5...
-
Page 6: Changing Wifi Channel
Network Setting → Wireless → General page. To change the WiFi channel, select the desired channel on the Channel dropdown menu. Press Apply on the bottom of the page to apply the change. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 6... -
Page 7: Connecting Device With Wps
2. Alternatively, after logging into the Hyperhub manager (refer to Section 1), click the menu icon and navigate to Network Setting Wireless WPS page. → → To connect, press the WPS button on the page, then press the WPS button on Zyxel EX5601 Detailed User Guide / Jan 2024 Page 7... - Page 8 Confidential the device you wish to connect within 120 seconds. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 8...
-
Page 9: Changing Dns
Network Setting Home Networking UPnP page. → → Toggle the UPnP switch to enable / disable UPnP. Press Apply on the bottom of the page to apply the changes. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 9... -
Page 10: Parental Control And Url Filtering
After logging into the Hyperhub manager (refer to Section 1), click the menu icon and navigate to Maintenance → User Account page. Press the modify button on the first row. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 10... -
Page 11: Reboot / Factory Reset
To reboot your Hyperhub router, after logging into the Hyperhub manager (refer to Section 1), click the menu icon and press Restart on the right-side bar. Then click OK to confirm. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 11... - Page 12 After logging into the Hyperhub manager (refer to Section 1), click the menu icon and navigate to Maintenance → Backup/Restore page. At the bottom of the page, select the type of reset you require, then press OK to confirm. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 12...
-
Page 13: Configuring Usb Storage
Here you will see File Sharing (via SMB) and Media Server (via DLNA) pages. To share USB storage across the network, after plugging in your USB storage device to the USB port, switch on File Sharing Services. Then, press Add New Share. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 13... - Page 14 Click OK to confirm, then Apply to confirm the changes. To share video, music and photo from the USB storage, switch on Media Server and click Browse to select the folder to share. Press Apply to confirm. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 14...
-
Page 15: Port Forwarding
At the page, enter the rule name in Service Name field, the preferred port or port range to forward or translate, and protocol (TCP or UDP or both). Press OK to confirm the configuration. Note: TCP port 7547 is reserved for system use. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 15... -
Page 16: Dmz
To deactivate DMZ, remove the IPv4 address, and press Apply. Note: Placing LAN devices in DMZ can pose a cybersecurity risk if the IPv4 address is incorrectly set. Please proceed with caution. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 16... -
Page 17: Configuring Static Ip To Client Dhcp Binding
Select the device that is connected via LAN or Wi-Fi from the Select Device Info menu; or b. Manually enter the device MAC address Then, enter the desired IPv4 address for the device. Press OK to confirm. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 17... -
Page 18: Dynamic Dns
Select from one of the supported Dynamic DNS service providers on the Service Provider list and enter the host name (the URL to be handled by the service provider) and login credentials. Press Apply to confirm. Zyxel EX5601 Detailed User Guide / Jan 2024 Page 18...
