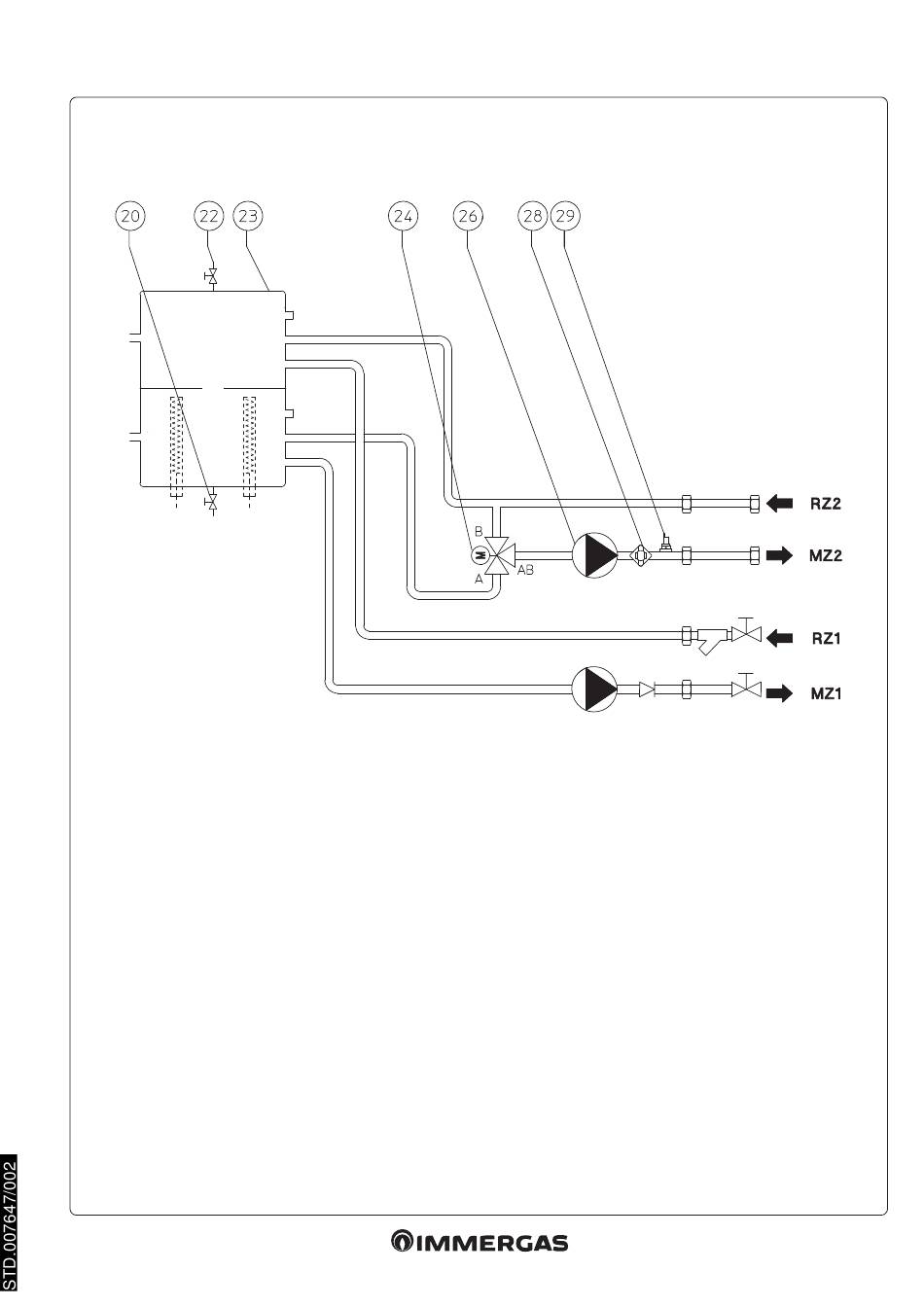

Hydraulic diagram.

Key:
20 - Hydraulic manifold draining valve (present on the product)
22 - Air vent valve (present on the product)
23 - Hydraulic manifold (present on the product)
24 - Mixed zone 2 mixer valve motor
26 - Mixed zone 2 circulator
28 - Mixed zone 2 safety thermostat
29 - Zone 2 mixed flow probe
Fig. 4
