Safety Instructions:
LIGHTNING PROTECTION
If installed outdoors, be sure the antenna system is grounded so
as to provide protection against voltage surges and built-up static
charges. Section 810 of the National Electrical Code ANSI/NFPA70, or
CSA C22.1 sections 10, 16, and 54, of the Canadian Electrical Code,
provide information with respect to proper grounding of the mast
and supporting structure, grounding of the antenna lead-in wire to
an antenna discharge unit, size of grounding conductors, location
of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode (see fi gure and
instructions).
Mount the lightning arrestor or 75 ohm coaxial grounding block as
close as possible to where the 75 ohm coaxial cable down lead enters
the house.
The ground wires for both the mast and the down lead should be
copper or aluminium wire, number eight (8) or larger.
The down lead wire from the antenna to the lightning arrestor and
the mast ground wire should be secured to the house, spaced from
four (4) to six (6) feet apart.
In the case of a "ground up" antenna installation it may not be
necessary to ground the mast if the mast extends four or more feet
in the earth. Consult a TV serviceman for the proper depth in your
location.
WARNINGS
To prevent fi re or shock hazard, do not expose the included power
supply to rain or moisture.
Installation of off -air antennas near power lines is dangerous. For
your safety, follow the installation instructions.
Any alteration or modifi cation to the product or usage not in
accordance with product instructions voids the warranty.

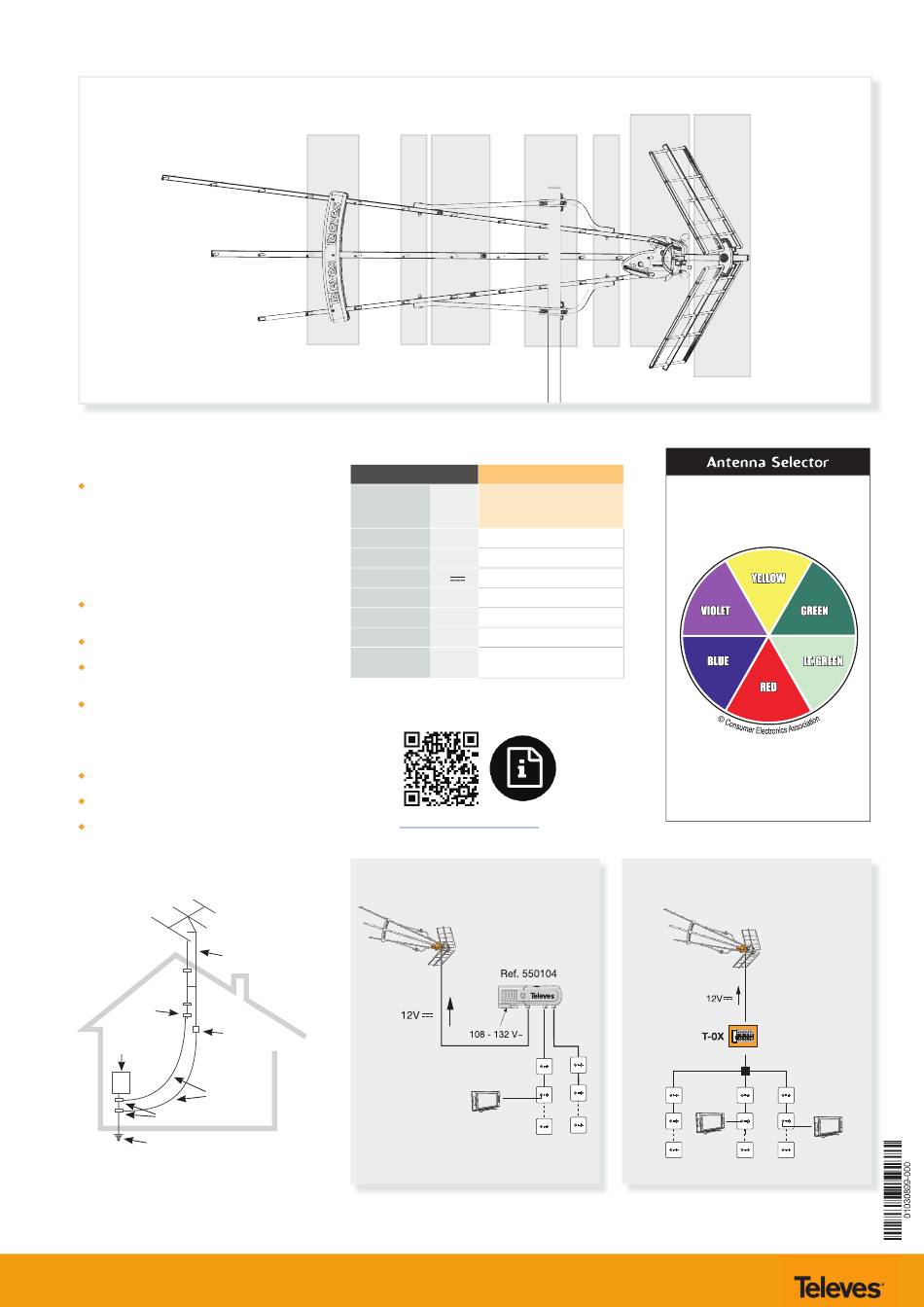

Example of antenna grounding as per
National Electrical Code, ANSI/NFPA 70
Antenna Lead
in Wire
Ground
clamp
Antenna Discharge Unit
Electric Service
(NEC Section 810-20)
Equipment
(May substitute a 75 ohm
Coax Grounding Block)
Grounding Conductors
(NEC Section 810-21)
Ground clamps
Power service Grounding Electrode System
(NEC Art 250, Part H)
NEC - National Electrical Code
Televes USA LLC. Norfolk Tech Center 16596 E. 2nd Avenue Aurora, CO 80011
2023 © Copyright, Televés S.A.U.
3 5 1
Technical specifi cations
BOSS ON (Active)
Operating band MHz
Gain dBi
Output level
Power supply V
Consumption mA
Weight lb / g
Dimensions in / mm 76.8 x 29 x 22 / 1952 x 735 x 560
120 (@ 80 miles/h)(@ 130Km/h)
Wind load N
165 (@ 93 miles/h)(@ 150Km/h)
* The gain is automatically adjusted according to the level of output.
https://qr.televes.com/A82742
2, 8, 10
4, 9 5
UHF
This antenna provides optimal reception
470 - 608
CH14 - CH36
46 max.*
Auto*
12
40 max
7 / 3200
See www.antennaweb.org for the list
of broadcasters in each reception zone
televes.usa@televes.com www.televes.com
6, 7
for the following zone(s)
where you live.
