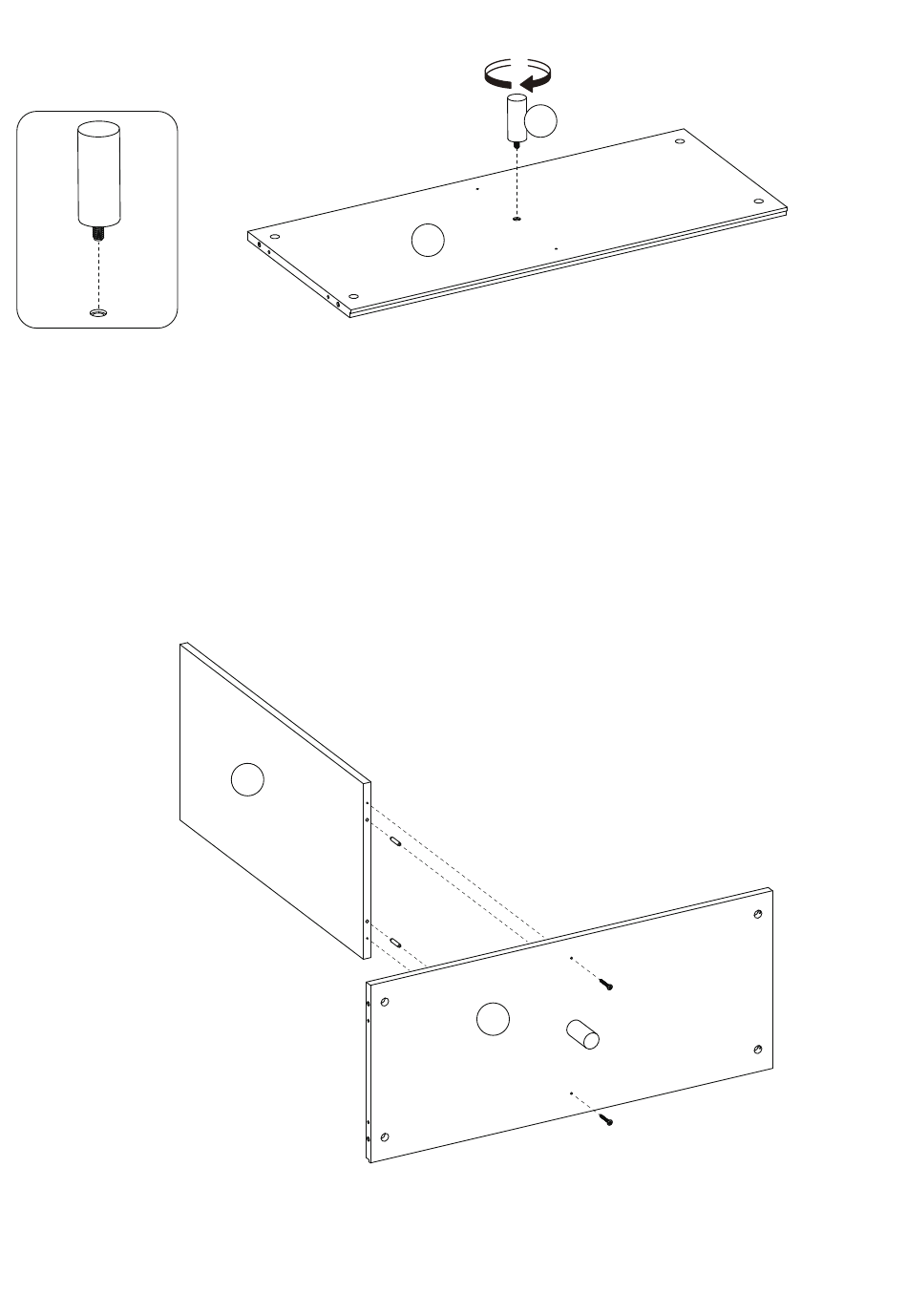

STEP 6
1. Attach middle support leg (15) to bottom board (13) by inserting screw into hole on bottom board
(13), then tighten clockwise until secure. Do not over-tighten/
STEP 7
1. Insert 2 wood dowels (C) into wood dowel holes on middle support panel (16).
2. Attach middle support panel (16) to bottom board (13) by inserting wood dowels (C) into wood dowel
holes on bottom board (13) and inserting 2 screws (P) through holes on bottom board (13), then
tighten to middle support panel (16).
16
C
C
15
13
13
P
P
