Sourcing Solutions RiverRidge Ellsworth 06-134 Assembly Instructions Manual

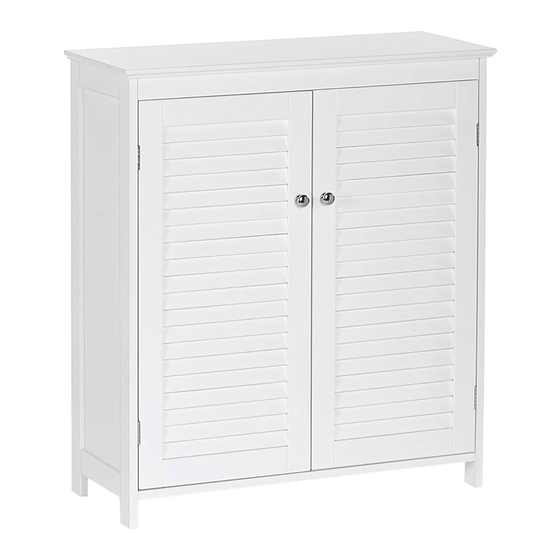

Two-door floor cabinet, white
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
RiverRidge
Ellsworth Two-Door Floor Cabinet
®
ITEM#: 06-134 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RiverRidge Ellsworth 06-134 and is the answer not in the manual?

Questions and answers

Related Manuals for Sourcing Solutions RiverRidge Ellsworth 06-134

Summary of Contents for Sourcing Solutions RiverRidge Ellsworth 06-134

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Ellsworth Two-Door Floor Cabinet ® ITEM#: 06-134 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR A TOTAL OF 80 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 80 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 80 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top Board Left Side Panel Right Side Panel Bottom Board Cross Bar Block 2PCS Adjustable Shelf Left Back Panel Right Back Panel Left Door Right Door...
  • Page 4 PARTS LIST PARTS DESCRIPTION 8PCS Cam Bolt 8PCS Cam Lock 12PCS Wood Dowel 1 SET Magnet 18PCS Screw (3x12mm) 20PCS Screw (2.5x10mm) 2PCS Magnet Plate 2PCS Knob 8PCS Shelf Holder 2PCS Plastic Anchor 2PCS Adjustable Anchor Bracket 4PCS Hinge 2PCS Screw (4x10mm) 2PCS Screw (4x30mm)
  • Page 5 STEP 1 Screw 2 cam bolts (A) into cam bolt holes on left side panel (2). Screw 2 cam bolts (A) into cam bolt holes on right side panel (3). STEP 2 Attach magnet (D) to block (6) by inserting 2 screws through holes on magnet (D), then tighten to block (6).
  • Page 6 STEP 3 Insert 4 wood dowels (C) into wood dowel holes on right side panel (3). Attach bottom board (4) and cross bar (5) to right side panel (3) by inserting cam bolts (A) into cam lock holes and wood dowels (C) into wood dowel holes on bottom board (4) and cross bar (5).
  • Page 7 STEP 5 Screw 4 cam bolts (A) into cam bolt holes on top board (1). Attach 2 adjustable anchor brackets (K) to top board (1) by inserting 2 screws (M) through holes on adjustable anchor brackets (K), then tighten to top board (1). STEP 6 Insert 4 wood dowels (C) into wood dowel holes on top board (1).
  • Page 8 STEP 7 Add 1 plastic connection strip (R) between left back panel (8) and right back panel (9); make sure 2 back panels slide into the grooves on plastic connection strip (R). Attach left back panel (8) and right back panel (9) to back of cabinet by inserting 20 screws (F) through holes on left back panel (8) and right back panel (9), then tighten to back of cabinet.
  • Page 9 STEP 9 Attach 2 hinges (L) to left door (10) by inserting 4 screws (E) through holes on 2 hinges (L), then tighten to left door (10). Attach magnet plate (G) to left door (10) by inserting 1 screw (E) through hole on magnet plate (G), then tighten to left door (10).

  • Page 10: Care Instructions

    STEP 11 STEP 11 OPTION #1 OPTION #2 OPTION #1 OPTION #2 DRYWALL DRYWALL DRYWALL DRYWALL WOOD WOOD STUD STUD SCREW SCREW WAL ANCHOR WAL ANCHOR ONLY ONLY WITH SCREW WITH SCREW Option #1: Securing to Drywall Position cabinet against wall in desired location. Using a pencil, make 2 small marks on wall through holes on brackets (K).
  • Page 11 To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States. If purchased outside of the United States, please contact retailer where purchased. RiverRidge ® is a registered trademark of Sourcing Solutions, Inc., Hudson, WI 54016...
