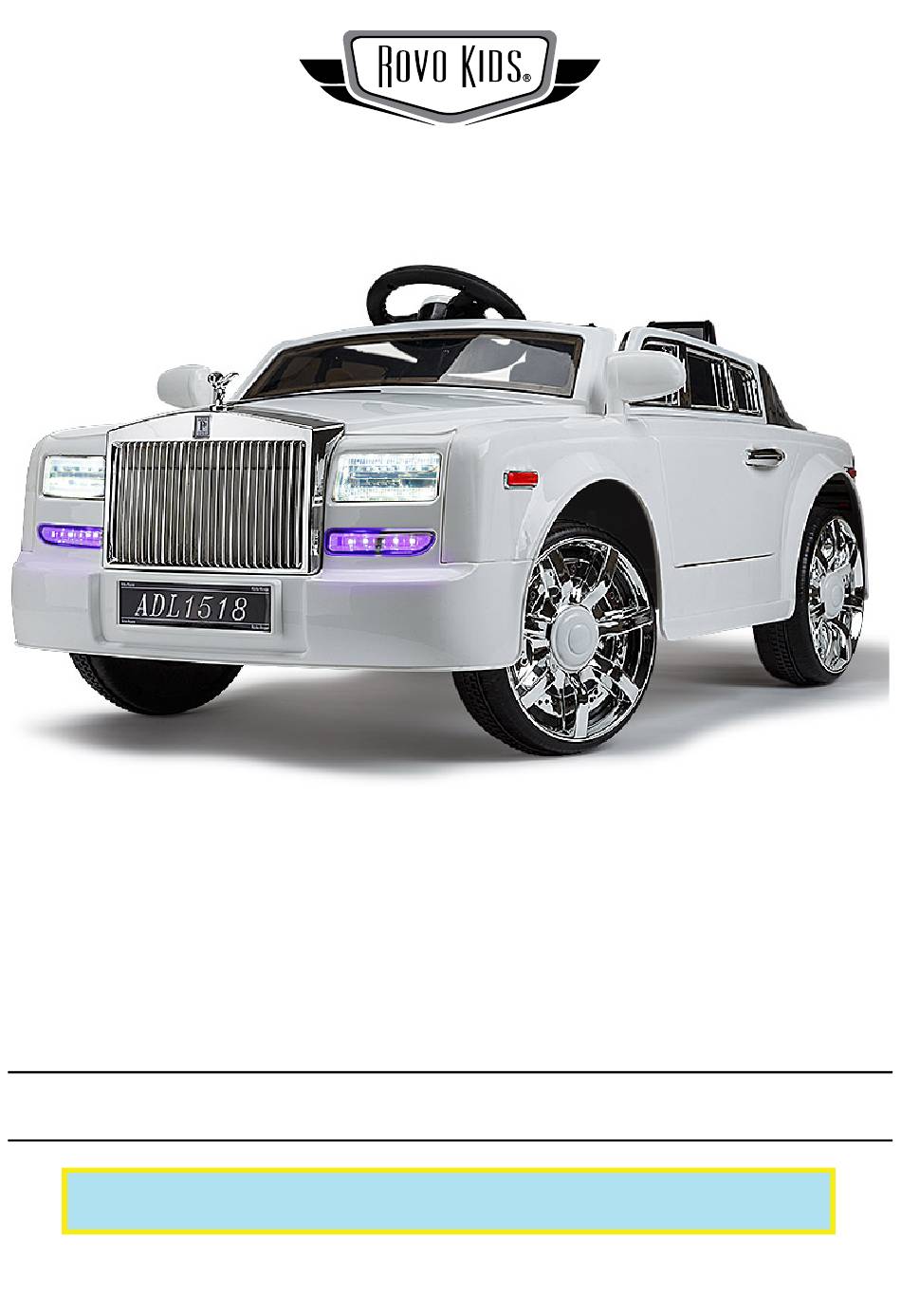

Kids Battery Powered Electric Ride-On
Car Phantom Inspired
User Manual
[Revision 7.0 May 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
THE BATTERY MAY HAVE SOME CHARGE ON ARRIVAL, IT IS IMPORTANT
HOWEVER THAT THE BATTERY IS CHARGED PRIOR TO USE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rovo Kids Phantom
Summary of Contents for Rovo Kids Phantom
- Page 1 Kids Battery Powered Electric Ride-On Car Phantom Inspired User Manual [Revision 7.0 May 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Table Of Contents
Kids Battery Powered Electric Ride-On Car Phantom Inspired Table of Contents Safety................................1 Included Items ..............................2 Assembly ................................. 3 Installing the Rear Axle............................. 3 Installing the Rear Wheels............................4 Installing the Front Wheels ............................4 Installing the Support Frames ........................... 4 Installing the Side Mirrors ............................ -
Page 3: Safety
Kids Battery Powered Electric Ride-On Car Phantom Inspired Safety Please read these directions carefully before assembling and using. After reading, please keep this manual in a mindful place for safe keeping. • Assembly, charging and adjustments must be performed by an adult •... -
Page 4: Included Items
Kids Battery Powered Electric Ride-On Car Phantom Inspired Included Items No. Description No. Description No. Description No. Description Car body Seat Front wheel Split pin Badge Rear support frame Wheel cover Side window Windscreen Front support frame Wheel cover decal... -
Page 5: Assembly
Kids Battery Powered Electric Ride-On Car Phantom Inspired Assembly Video Tutorial: Typical Ride-On Car Assembly Tools needed for assembly: • Screwdriver (Included) • Vice (Included) Before assembling, please check all part quantities. NOTE: Please remove the terminal cover first when assembling the battery (see image below). -
Page 6: Installing The Rear Wheels
Kids Battery Powered Electric Ride-On Car Phantom Inspired Installing the Rear Wheels Place the drive motor onto the rear axle, ensuring that they go on the correct left/right sides (The gear/cog of the motor should face out to rear wheel can fit into it). -
Page 7: Installing The Side Mirrors
Kids Battery Powered Electric Ride-On Car Phantom Inspired Installing the Side Mirrors Insert side mirrors into fittings near bonnet, ensuring the correct sides are inserted and facing correct way. Installing the Steering Wheel Remove screw and bolt from steering wheel Connect wires together (this connection will ensure that the buttons on the steering wheel will work). -
Page 8: Connecting The Power
Kids Battery Powered Electric Ride-On Car Phantom Inspired Connecting the Power Connect the wires and connectors together. Ensuring black connects to black and red connects to red. Installing the Seat Remove the 4x15 self-tapping screws. Align the seat clips into car body and firmly press seat in. -
Page 9: Operation
Kids Battery Powered Electric Ride-On Car Phantom Inspired Operation WARNING! • When changing directions, please ensure that the foot pedal is released before changing! • Do not hold foot pedal down while changing directions! Moving Forward 1. Press “ON/OFF Switch” to ON. -
Page 10: Remote Control
Kids Battery Powered Electric Ride-On Car Phantom Inspired Remote Control Setup 1. Screw in the metal antenna onto controller (as shown below). 2. Insert 2x AA batteries (included). Operation 1. Turn Remote Switch to Remote (in car). 2. Push ON/OFF Switch to ON, ON light will come on. -
Page 11: Charging
Kids Battery Powered Electric Ride-On Car Phantom Inspired Charging 1. Ensure that vehicle is switched OFF. 2. Plug charger into wall (as pictured in 1). 3. Insert charger into vehicle’s charging port (as pictured in 2). Please consider the following when charging: •... -
Page 12: Troubleshooting
Kids Battery Powered Electric Ride-On Car Phantom Inspired Troubleshooting Symptom Possible Cause Possible Solution Battery not Please connect battery. connected RC/TC Switch is on Turn Switch to "Manual." Switched off Turn power switch to ON. Not moving at all when Battery is flat Battery has an average running usage of 1-2 hours. -
Page 13: Specifications
Kids Battery Powered Electric Ride-On Car Phantom Inspired Specifications Gears Forward and reverse Engine Start Sound Seat Belts Adjustable Battery 12V 7Ah Battery Charger AC240V Charge time 8-12hrs (full charge) Range 1-2hrs (full charge) Remote Operation Remote Battery 2 AAA (Included) E&OE... - Page 14 ©2018 Rovo Kids. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
