Mercedes Benz S63 AMG
Electric Ride-On Car
User Manual
[Revision 6.0 January 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
THE BATTERY MAY HAVE SOME CHARGE ON ARRIVAL, IT IS IMPORTANT
HOWEVER THAT THE BATTERY IS CHARGED PRIOR TO USE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mercedes Benz S63 AMG and is the answer not in the manual?

Questions and answers

Bob Mayo
April 7, 2025

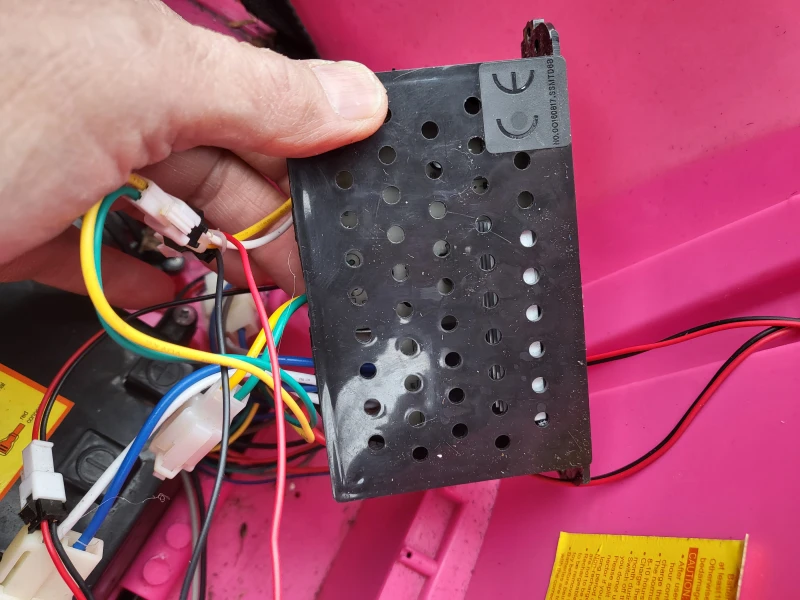

At what frequency does the remote work? Trying to find a replacement for my car. Not sure which remote to buy. This number is on the receiver: NO. 00160817.SSMTD68. Thanks.

User image 67f3b6ef653d7

Summary of Contents for Rovo Kids Mercedes Benz S63 AMG

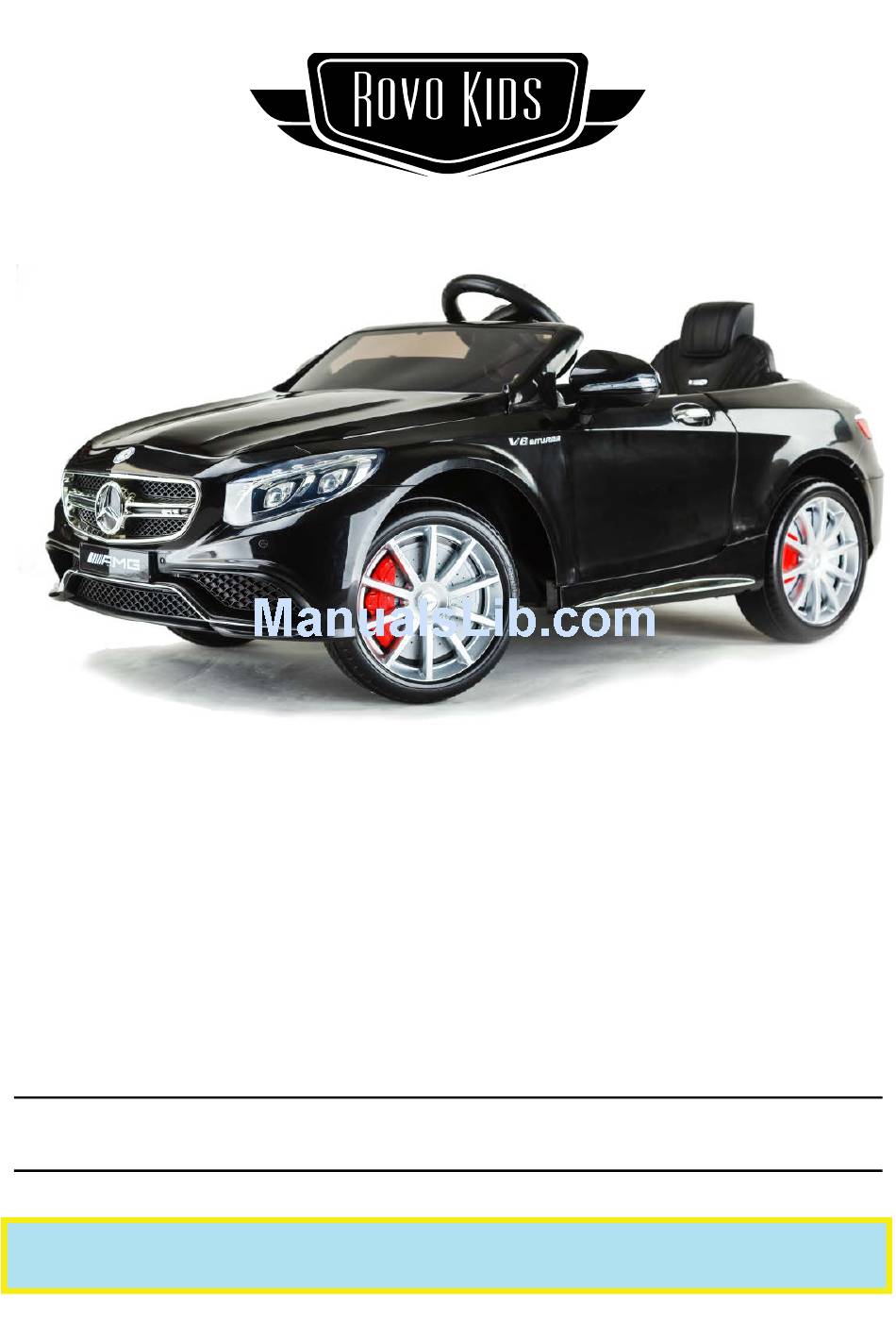

  • Page 1 Mercedes Benz S63 AMG Electric Ride-On Car User Manual [Revision 6.0 January 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
  • Page 2: Table Of Contents

    Mercedes Benz S63 AMG Electric Ride-On Car Table of Contents Safety ..............................3 Battery Information ..........................5 Battery Charging and Replacement ......................5 Charging the Battery ..........................6 Replacing the Battery .......................... 6 Battery Care and Disposal ......................... 6 Battery Care ............................6 Battery Disposal ..........................
  • Page 3: Safety

    Mercedes Benz S63 AMG Electric Ride-On Car Safety It is very important to read the instructions here carefully before using the electric ride-on car. The instructions not only specify the assembly process and proper operation, but also help you to avoid injuries or damaging the product due to incorrect operation.
  • Page 4 Mercedes Benz S63 AMG Electric Ride-On Car • If the ride-on car malfunctions, do not use it until it is repaired. • CAUTION! When charging or replacing the vehicle battery, pay attention to the following: • Failure to follow instructions on correct battery maintenance may permanently damage the battery and will void the warranty.
  • Page 5: Battery Information

    Mercedes Benz S63 AMG Electric Ride-On Car Battery Information WARNING! PREVENT FIRE • Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. • Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury. Only batteries of the same or equivalent type as recommended are to be used.
  • Page 6: Charging The Battery

    Mercedes Benz S63 AMG Electric Ride-On Car • Do not short-circuit the battery or battery supply terminals. Charging the Battery NOTE: The first battery charge requires approximately 12 hours. Subsequent charges require 8 to 10 hours. 1. Open the battery charger port cover (located on the dashboard).
  • Page 7: Battery Disposal

    Mercedes Benz S63 AMG Electric Ride-On Car • Charge a new battery for at least 12 hours before first use. • Never charge the battery longer than 24 hours continuously. • Over-charging or under-charging the battery may shorten battery life and decrease vehicle running time.
  • Page 8: Included Items

    Mercedes Benz S63 AMG Electric Ride-On Car Included Items NOTE: Identify all parts before assembly and save all packaging material until assembly Is completed to ensure that no parts are discarded. • Metal parts may be coated with lubricant for protection during shipment.
  • Page 9: Assembly

    Mercedes Benz S63 AMG Electric Ride-On Car Assembly WARNING! Children may be harmed by small parts, Video Tutorial: sharp edges and points or electrical components when the vehicle is unassembled. Care should be taken to not allow Typical Ride-On Car Assembly children near parts when unpacking and assembling the vehicle.
  • Page 10 Mercedes Benz S63 AMG Electric Ride-On Car 2. Install the rear wheel hubcaps. • Align the hubcap so that widest locating tab is aligned with the slot in the wheel above the “brake caliper”. • Push the hubcap down onto the wheel until all tabs are located into the wheel and it “snaps” into place.
  • Page 11 Mercedes Benz S63 AMG Electric Ride-On Car 4. Install the front wheel hubcaps as described for the rear wheels. 5. Install the steering wheel. • Plug the vehicle and steering wheel electrical connectors together. Feed excess wire into the steering column.
  • Page 12 Mercedes Benz S63 AMG Electric Ride-On Car • Place each wing mirror into position and push it into the hole until it “clicks” into place. 8. Connect the battery. • Align the battery and car wiring harness connectors, then push them together until the connectors “click”.
  • Page 13 Mercedes Benz S63 AMG Electric Ride-On Car 9. Install the seat (this also acts as a secondary battery cover). • Ensure no wires are sitting on the seat posts (circled in figure 8). Unbuckle the seat belt if required and move it to the edges of the car.
  • Page 14: Operation

    Mercedes Benz S63 AMG Electric Ride-On Car Operation Controls Name Description ON/OFF button Press to “start”/”stop” the vehicle. When the vehicle has been started, lights and controls illuminate and sounds play. Direction control Push/pull to set the desired direction of travel: F –...
  • Page 15: Driver Mode Operation

    Mercedes Benz S63 AMG Electric Ride-On Car Driver Mode Operation 1. Ensure the “driver” is correctly and safely seated in the vehicle and the seat belt is buckled. 2. Press the ON/OFF button to “start” the vehicle. On starting, the vehicle will play various sounds.
  • Page 16: Music System Operation

    Mercedes Benz S63 AMG Electric Ride-On Car CAUTION! When stopped using the remote control, the vehicle will immediately become available in driver mode when the remote control handset stick is released. This means that if the child is still pressing the accelerator, when you release the remote control stick, the car will continue moving. • When using the remote control handset to steer the vehicle, the child may still use the steering wheel to also change direction.
  • Page 17: Troubleshooting

    Mercedes Benz S63 AMG Electric Ride-On Car Troubleshooting Malfunction Analysis Solution Car not running or Fuse tripped. Vehicle being overloaded or driven on unsuitable car was running but surfaces. Fuse resets after 10 seconds. Unload vehicle Electrical connections suddenly stopped (30kg max.) and/or move to suitable surface.
  • Page 18: Maintenance

    Mercedes Benz S63 AMG Electric Ride-On Car Maintenance • If the ride-on car is damaged, do not use it until it is repaired by an authorized service center. • An adult should inspect the ride-on car at regular Intervals for wear or loose hardware and tighten as required.
  • Page 19 ©2018 Rovo Kids. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
