Kids Ride-On 3-Wheel Motorcycle
User Manual
[Revision 4.0 January 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
THE BATTERY MAY HAVE SOME CHARGE ON ARRIVAL, IT IS IMPORTANT
HOWEVER THAT THE BATTERY IS CHARGED PRIOR TO USE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rovo Kids KIDBIKROVAHAB
Summary of Contents for Rovo Kids KIDBIKROVAHAB

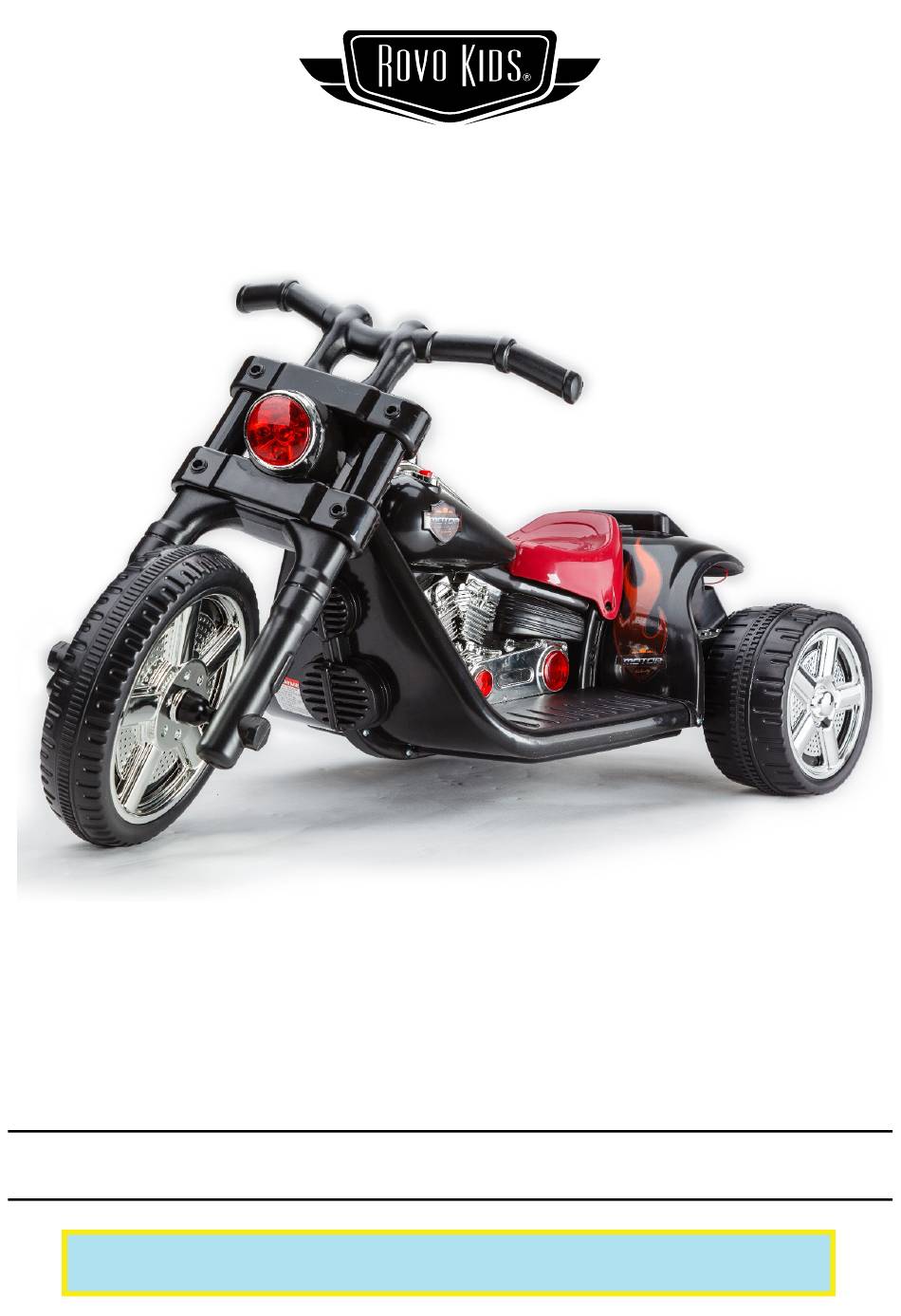

- Page 1 Kids Ride-On 3-Wheel Motorcycle User Manual [Revision 4.0 January 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Table Of Contents
Kids Ride-On 3-Wheel Motorcycle of Contents Safety................................1 General Safety Precautions ............................1 Charging Precautions ............................... 1 Operation Precautions .............................. 2 Maintenance Precautions ............................2 Included Items ..............................3 Set-Up ................................4 Troubleshooting .............................. 9 Specifications ..............................10 E&OE © 2018 Rovo Kids... -
Page 3: Safety
When the motorcycle is left idle for a long time, it should be charged at least once a month. • Be sure to remove the charger lead from the port on the bike before turning the bike on. E&OE © 2018 Rovo Kids... -
Page 4: Operation Precautions
• The motorcycle should be periodically cleaned. Do not clean it with water to avoid damaging any electric wirings. The product should be cleaned with a dry cloth. E&OE © 2018 Rovo Kids... -
Page 5: Included Items
No. Part Name Qty. Front wheel iron Main body Shock absorbers shaft Charger Screws Rear iron shaft Fork Back wheel Bolt Handlebar Front wheel Gasket Battery Seat Sticker Locking arm of Lamp shade Driving motor handlebar E&OE © 2018 Rovo Kids... -
Page 6: Set-Up
1. Put the support saddle of the front wheels in to the hole of the main body (Figure 1). 2. Fit the handlebar to the top of the main body (Figure 2). 3. Fit the back of the handlebar (Figure 3). E&OE © 2018 Rovo Kids... - Page 7 Kids Ride-On 3-Wheel Motorcycle 4. Fit the headlight (Figure 4). 5. Insert two screws to tighten the handlebar (Figure 5). 6. Insert four screws into the headlight and tighten them (Figure 6). E&OE © 2018 Rovo Kids...
- Page 8 7. Fir a headlight retainer into the back of the headlight, as shown (Figure 7). 8. Insert two screws into the headlight retainer and tighten them. Repeat this procedure to assemble the other headlight retainer (Figure 8). 9. Place the labels exactly as shown topside in Figure 9. E&OE © 2018 Rovo Kids...
- Page 9 11. Place the battery upright into the battery compartment and connect the battery with the battery line. Red to red and black to black (Figure 11). 12. Fit the seat onto the main body (Figure 12). E&OE © 2018 Rovo Kids...
- Page 10 15. Connect the plug to the socket on the main body of the motorcycle. Then, insert the back wheel axle to the centre hole of the motor. Set the motor well into the space of the main body (Figures 15 and 16). E&OE © 2018 Rovo Kids...
-
Page 11: Troubleshooting
Please switch over rear wheels so that Left switched around / Forward swapped around (Left on Right and is on the Left side and Right is on the Right moves backwards and Right on Left) side. backwards moves forwards E&OE © 2018 Rovo Kids... -
Page 12: Specifications
100cm Width 63cm Gross Weight 10.5kg Net Weight 8.6kg Carton Dimension (L x W x H) 70 x 46 x 40cm Battery Type DC6V4.5AH Range 1-2 hours Max Rider Weight 25kg Suitable For 3-8 Years E&OE © 2018 Rovo Kids... - Page 13 ©2018 Rovo Kids. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
