HYOSUNG 9T Quick Reference Manual

HYOSUNG 9T Quick Reference Guide
8 CSM60 Jam
 How to remove jam from Bundle section
• Open the Cover of Bundle and remove the
check.
8-1
 How to remove jam from Align section
• Turn the Align Lever (A) and release the Lock.
Then open the Top Cover and remove the
check.
8-2
9 SPR Jam
 Release the lever by moving it to the left. (①)
Listen for a click.
 Gently pull paper away from the print head.
(②)
9-1
2
1
Note Print this guide on the both sides of paper (turning page to short side
fold this in half.
 Removing jam from lower transport
section
• Open the rear cover and remove the
check of the lower section.
• Open the rear cover and remove the
check from the entrance of TE
• Open the rear cover and remove the
check from the exit of TE.
8-3
 How to remove Jam from upper
transport section
• Open the upper cover and remove the
check.
8-4
 Search for jammed paper and carefully
remove it. Rotate the wheel to assist in
removing jammed paper. (③)
 Push the lever to lock it back in place.
(④)
 Reinsert the paper back into printer.
9-2
3
4
) and
PAGE 4 OF 4

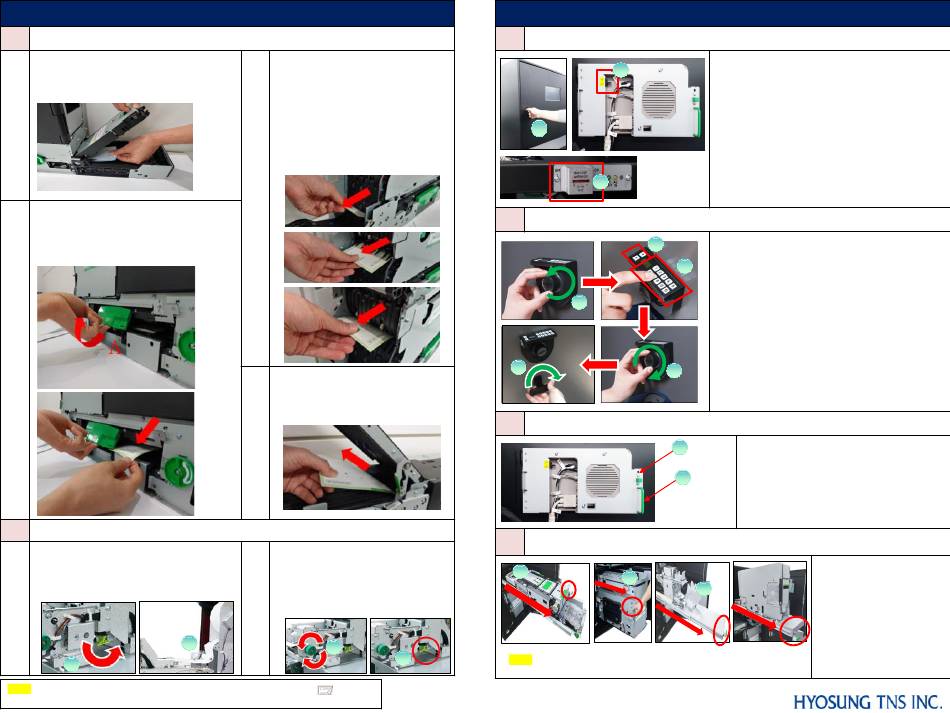

HYOSUNG 9T Quick Reference Guide
1 ATM Power On/Off
2
1
3
2 Locking Device Open/Close
2
1
5
4
3 Accesing the ATM Servicing Screen when the Hood is in the open Position
1
4 Accessing the Main Devices of HYOSUNG 9T
a
b
Note To undock BMU, BMD, SPR and CSM , press the button in the
red circle and pull the handle in the arrow direction.
PAGE 1 OF 4
 ATM Power On
• Open the rear door. (①)
• Press the standby switch to "ON" side (②) (Main
power switch should be "ON" (③)).
• The system will be turn on automatically.
 ATM Power Off
• Press the standby switch to "OFF" side for 1 second.
(Make sure that Main Switch is turned on.
Do NOT operate Main Switch.)
 Locking Device Open
• Turn the dial (①) counter clockwise
3
until "EC" appear on the LCD (②).
• Enter the password. (③) Then "Opr" will be displayed.
(Factory Default Password : 50-25-50)
• Turn the dial clockwise (④) until it stops.
• Turn the handle (⑤) and open the security door.
 Security Door Close
• Close the security door and turn the handle .
• Turn the dial a minimum of one complete rotation
counter clockwise.
Make sure the door close by turning the handle.
 To open, press the button (①) and pull the
handle of (②) toward you.
2
 To close, swing the panel back in the original,
closed position
 Devices of HYOSUNG 9T
ⓐ BMU (Body Module
c
Upper) of BRM160
ⓑ BMD (Body Module
Lower) of BRM160
ⓒ SPR (Receipt Printer)
ⓓ CSM60 (Check Single
Deposit Module)
