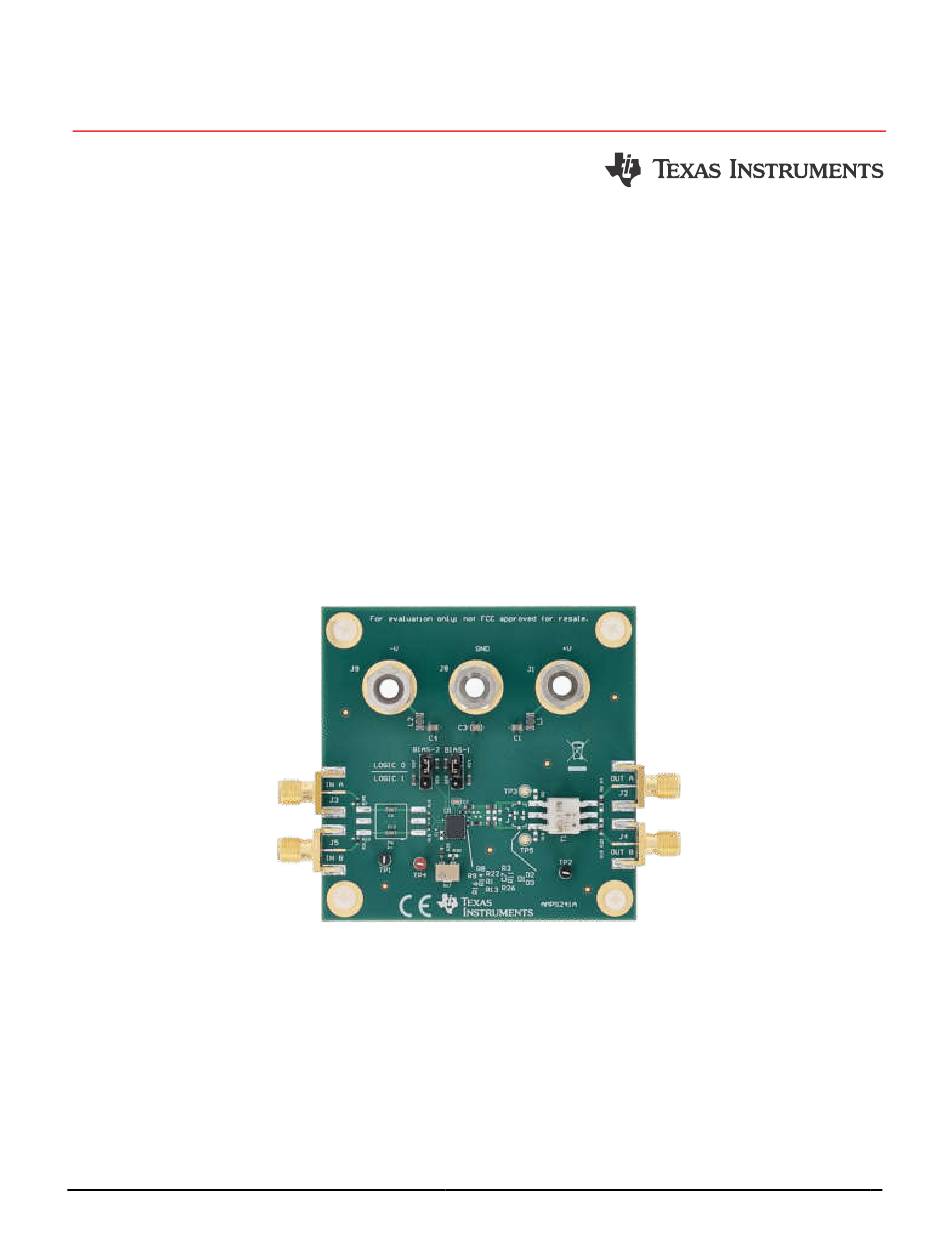

EVM User's Guide: THS6232RHFEVM
THS6232RHF Evaluation Module
Description

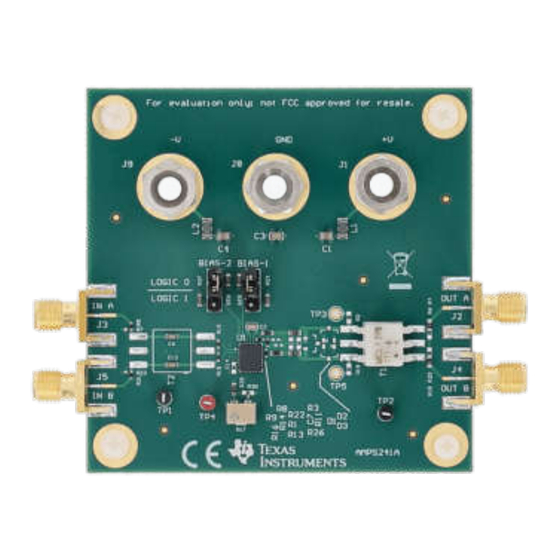

This THS6232RHF evaluation module (EVM) is
designed to quickly and easily demonstrate the
functionality and versatility of the amplifier. The EVM
is ready to connect to power, signal sources, and test
instruments through the use of onboard connectors.
The EVM comes configured for easy connection with
common 50Ω laboratory equipment on the inputs and
outputs. The amplifier is configured for a differential
input with a gain of 10V/V to a differential output. The
board includes jumpers to easily switch the device
between different bias modes and a potentiometer
to set the value of the IADJ pin. The EVM can be
easily configured for other gains and for single- or
split-supply operation. The output transformer and
SBOU317 – SEPTEMBER 2024
Submit Document Feedback
resistors can be configured to present a 50Ω single-
ended output.
Features
•
Configured for split-supply operation and easily
modified for single supply
•
Default gain of 10V/V configuration can easily be
reconfigured for other gains
•
Designed for easy connection to standard 50Ω
input and output impedance test equipment
•
Quick setup board for THS6222 devices, with an
optional pad for VCM pin capacitor
•
Potentiometer and nearby resistors allow for
precise setting of IADJ pin, including for ultra-low
bias mode
THS6232RHFEVM
Copyright © 2024 Texas Instruments Incorporated
Description
THS6232RHF Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments THS6232RHF
Summary of Contents for Texas Instruments THS6232RHF
- Page 1 EVM User's Guide: THS6232RHFEVM THS6232RHF Evaluation Module Description resistors can be configured to present a 50Ω single- ended output. This THS6232RHF evaluation module (EVM) is designed to quickly and easily demonstrate the Features functionality and versatility of the amplifier. The EVM •...
-
Page 2: Kit Contents
24-pin VQFN package with a 5mm x 4mm footprint. See the THS6232 7V-to-40V, Differential HPLC Line Driver with Common-Mode Buffer Data Sheet for more information. THS6232RHF Evaluation Module SBOU317 – SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 3 Connect both the V- connector and the GND connector to ground; apply the positive supply voltage to V+. • Optionally, use TP1 (red) to confirm the input common mode is at ((V+)+(V-))/2. SBOU317 – SEPTEMBER 2024 THS6232RHF Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 4: Input And Output Connections
VCM capacitor can be added to help filter common-mode noise if needed by the application. The THS6232 does not have a VCM pin, so VCM is not populated by default on the EVM. THS6232RHF Evaluation Module SBOU317 – SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 5 100kOhmsor greater . With thedefaultR17potentiometer , themaximumvalue is 100kOhms.For all otherbiasmodesthevalueof R17should be zero, or shorted to GND. Figure 3-1. THS6232RHFEVM Schematic SBOU317 – SEPTEMBER 2024 THS6232RHF Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 6: Board Layout
The board layers, in top to bottom order, are illustrated in Figure 3-2 through Figure 3-5. Figure 3-2. Top Layer Figure 3-3. Ground Layer Figure 3-5. Bottom Layer Figure 3-4. Power Layer THS6232RHF Evaluation Module SBOU317 – SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 7 C11, C12, C14 Diode, TVS, Uni, 27V, 38 Vc, SOT-23 SOT-23 MMBZ27VCL-7-F Diodes Inc. D2, D3 Diode, Schottky, 30V, 0.2A, SOT-23 SOT-23 BAT54S-7-F Diodes Inc. SBOU317 – SEPTEMBER 2024 THS6232RHF Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 8 Yageo America RF Transformer, 50ohm, 0.004 to 300MHz, SMT 7.62x6.86mm TT1-6-KK81+ Minicircuits TP3, TP5 Test Point, Miniature, Red, TH Red Miniature Test point 5000 Keystone THS6232RHF Evaluation Module SBOU317 – SEPTEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 9: Additional Information
All trademarks are the property of their respective owners. 5 Related Documentation For related documentation, see the following: • Texas Instruments, THS6232 7V-to-40V, Differential HPLC Line Driver with Common-Mode Buffer, data sheet SBOU317 – SEPTEMBER 2024 THS6232RHF Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 10 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 11 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 12 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 13 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 14 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
- Page 15 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
