(25A-)VPX400 Series
3 port solenoid valve /
Specific Product Precautions 8
Be sure to read before handling.
5.2 Electric connection
• When electric power supply is connected to the valve, make sure
to apply an appropriate voltage. Inappropriate voltage may cause
malfunction or coil breakage.
• After wiring of all wires has completed, check whether the
connections are correct.

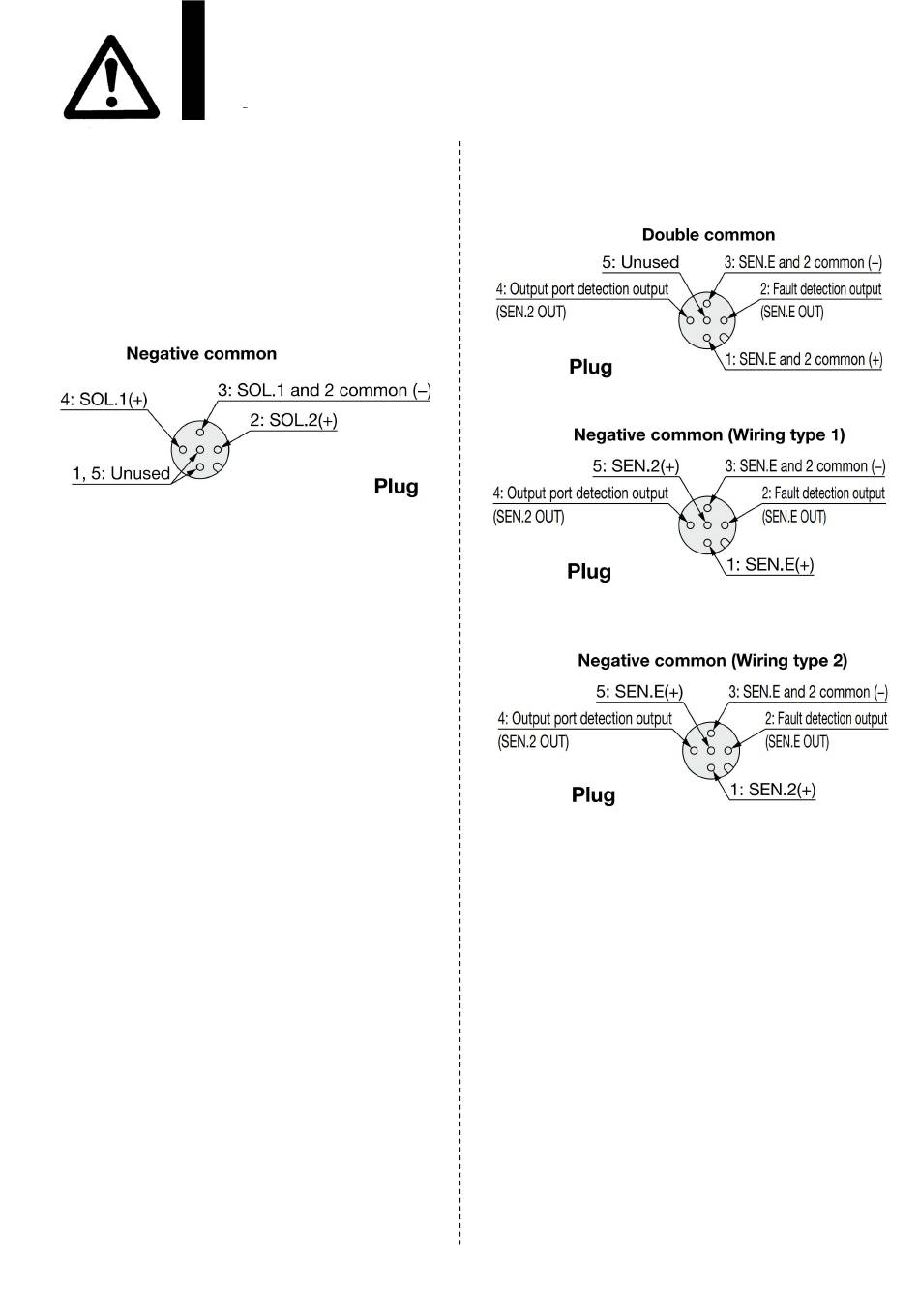

5.2.1 Valve wiring diagram
M12 connector for solenoid (for SOL.1/SOL.2)
•
Pin arrangement (A cord, plug)
Connector pin assignment (A cord, plug) for pressure
•
sensor (SEN.E/SEN.2)
- 15 -
No. DOC1092179
