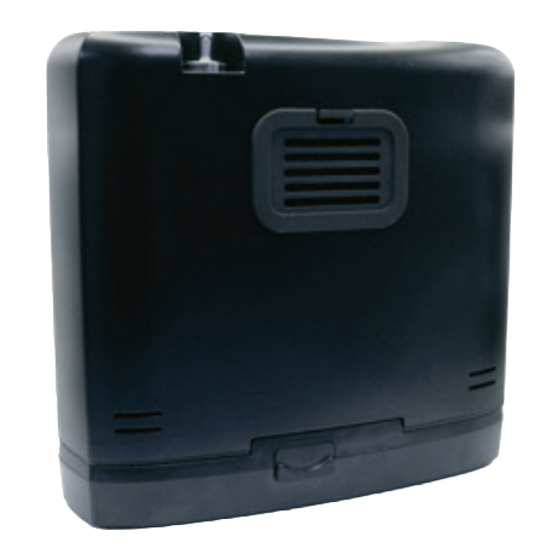

- Page 1 DISCOV R ™ DISCOV-R Portable Oxygen Concentrator USER-MANUAL Live Life. Breathe Easy. Go X-PLO ™ ®...
-
Page 2: Table Of Contents
SECTION 3. Operating the DISCOV-R ....7 Turning the DISCOV-R ON & OFF ... 7 Audible Alarm . -
Page 3: Discov-R Quick Start Guide Checklist
Carry Bag Carry Bag Carry Bag Handle Shoulder Strap Do not use the DISCOV-R or any accessory if they show any WARNING: sign of damage. Call your equipment provider for replacement. IMPORTANT: While the box or packaging may look to have damage, such as tears or dents, the device may still be in a usable condition. -
Page 4: Quick Start Guide
Quick Start Guide It is quick and easy to get your DISCOV-R started, but please read the entire User Manual before using your unit. DO NOT TURN ON DISCOV-R UNTIL STEP 4. 1. REMOVE DUST CAPS & INSERT CARTRIDGES •... -
Page 5: Introduction
1. Introduction This user manual serves as a reference for users of the DISCOV-R and should be read in its entirety before operating the DISCOV-R. The term “POC” (Portable Oxygen Concentrator may be used to refer to the DISCOV-R. “Patient” and “User” are used interchangeably. -
Page 6: Safety Information
2. Safety Information This section describes the warnings and cautions for the use of the DISCOV-R. The following guidelines apply to this document: WARNING: Indicates possibility of serious adverse reactions & potential safety hazards. CAUTION: Indicates possibility of damage to the equipment. -
Page 7: Warnings
4. Water spilled into the enclosure 5. Broken enclosure • Use only with the DISCOV-R batteries, AC and DC power supplies and cords. • Use of unauthorized parts and accessories could cause injury, invalidate the warranty, or result in costly damage. -
Page 8: Cautions
• Use DISCOV-R within its carry bag for ease of use. The insulation in the carry bag will keep the maximum surface temperature of the device for patient contact to less than 48˚C. -
Page 9: Operating The Discov-R
0.5 LPM to 2.0 LPM. No Breath Detected Mode: If the DISCOV-R does not detect a breath from the user for 45 seconds, a No Breath Detect alarm icon will display and an alarm (beep) will sound. After another 45 seconds... -
Page 10: Audible Alarm
UP/DOWN button to set the oxygen flow level 0.5 LPM to 2.0 LPM.. No Breath Detected Mode: If the DISCOV-R does not detect a breath from the user for 45 seconds, a No Breath Detect alarm icon will display and an alarm (beep) will sound. After... -
Page 11: Battery
4. Battery DISCOV-R comes with an 8-cell lithium ion battery that powers the DISCOV-R with or without an external power supply connected. Fully charge the battery before using the DISCOV-R. Charge the DISCOV-R battery only with the power supplies provided with the DISCOV-R. - Page 12 Each of the five horizontal yellow bars represents approximately 20% of the total battery charge. • When the DISCOV-R is using an external AC or DC power supply, the icon will appear on the LCD screen. If there is no icon, the battery is working without external power.
-
Page 13: Charging The Battery
DC power supply source provided. STEPS TO CONNECT & DISCONNECT THE BATTERY Connect the battery to the bottom of the DISCOV-R by sliding the battery into place until the latch returns to the locked position. To disconnect, push the release latch down and slide the battery toward you. -
Page 14: User-Replaceable Cartridges
Your DISCOV-R may have cartridges inserted into your unit. Cartridges not inserted will arrive in a Mylar bag in the box with your DISCOV-R. You have to insert the cartridges into the unit before using the DISCOV-R. Do not remove the dust caps until it is time to install the cartridges. - Page 15 (See image 6) Connect a charged battery to the DISCOV-R. Turn on the DISCOV-R by pressing the power button for 2 seconds. Set the Flow Setting to your prescribed setting and use normally. DUST CAPS STEPS FOR CARTRIDGES REPLACEMENT...
-
Page 16: Nasal Cannula
The proper placement and positioning of the nasal cannula in the nose is critical to the consistent operation of the DISCOV-R. The length of the cannula should not exceed 25 feet in length. Tubing lengths greater than 25 feet may impede proper flow. -
Page 17: Troubleshooting
Remove AC power cord if installed. Detach Switch is defective battery. Discontinue use and contact your equipment provider. DISCOV-R is not turned Press the power for two seconds. Device will not trigger a pulse of Make sure the tubing is connected properly to... -
Page 18: Alarms
8. Alarms NOTIFICATIONS The DISCOV-R has only one type of alarm (an icon on the display combined with an audible tone): that arises when monitored equipment functions indicate that the user’s attention is required. Alarm notifications are audible at levels ranging from 65 dB(A) to 85 dB(A), depending on the equipment condition and the user’s position. - Page 19 MESSAGE DISPLAY & TEXT ICONS CONDITION/ACTION/EXPLANATION When the DISCOV-R has not detected a breath for 45 seconds, this alarm will alert the user. If the DISCOV-R is left idle, the alarm will continue for another 45 seconds before transitioning into No No breath detected Breath Detected Mode (Auto pulse 15 BPM at current setting).
-
Page 20: Accessories & Replacement Parts
9. Accessories and Replacement Parts DISCOV-R accessories available to order: PICTURE # ACCESSORY NAME MODEL # 8-Cell Battery 70188 Cartridges 70073 Air filter 70351 Carry Bag 72191 AC Power Supply 73011 DC Power Supply 73021 Backpack 72291 Cart 72391 8-Cell Battery... -
Page 21: Maintenance & Cleaning
As long as it is charged or powered the DISCOV-R will operate 24 hours/7 days per week, daytime/ nighttime. However, in order to preserve the life of the POC this type of use should be limited to situations when you are traveling, on vacation, or other short term situations where your primary oxygen source is not immediately available. - Page 22 Dampen a cloth in a mild liquid detergent and water solution at room temperature. Then wipe the outside surface of the bag. Allow time for the bag to completely dry before placing the DISCOV-R back inside. AC & DC POWER SUPPLY CORDS The AC and DC power supplies should be cleaned as needed.
-
Page 23: Labeling Symbols
11. Labeling symbols SYMBOLS MEANING SYMBOLS MEANING Refer to instruction manual/ Do Not Disassemble (Contact booklet. your equipment provider for servicing by authorized personnel). A warning indicates that the personal safety of the patient WARNING may be involved. Disregarding Do Not Dispose of In Unsorted a warning could result in Municipal Waste. - Page 24 USER INTERFACE LABEL SYMBOLS MEANING ON/OFF Button Increase Flow Setting Decrease Flow Setting Audible Alarm Enable / Disable Button POWER STATUS ICONS SYMBOLS MEANING Battery charge level is 0-19%. The actual percentage will be displayed next to the icon. Battery charge level is 20-39%. The actual percentage will be displayed next to the icon.
-
Page 25: Specifications
12. Specifications CONCENTRATOR Dimensions: L / W / H : 9.3 in. (23.6 cm.) / 4.1 in. (10.4 cm.) / 9.9 in. (25.2 cm.) With 8-cell battery Weight of unit with: Without battery: 6.5 lbs; with 8-cell battery: 7.1 lbs Warm-Up Time: Less than 2 minutes Flow &... -
Page 26: Flow Settings & Pulse Volume
CLASSIFICATIONS MODE OF OPERATION CONTINUOUS DUTY Type of Protection Against Class II Electrical Shock: Degree of Protection to Concentrator Components Type BF Against Electrical Shock: IP22 - Vertically falling drops of water shall have no harmful effects when enclosure is tilted at any angle up to 15˚on Degree of Protection to either side of the vertical. -
Page 27: Electromagnetic Interference
These limits are specified to provide reasonable protection against typical RF interference. Conversely, the electromagnetic emissions of the DISCOV-R are related only to its internal function, and it is unlikely to interfere with other equipment. - Page 28 80-2700MHz equipment marked with symbol: The DISCOV-R is intended for use in an electromagnetic environment in which radiated RF distur- bances are controlled. The customer or the user of the DISCOV-R can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communication equipment (transmitters) and the DISCOV-R as recommended below, according to the maximum output power of the communications equipment.
-
Page 29: Traveling With The Discov-R
TRAVELING IN A CAR OR MOTORIZED VEHICLE You can charge your DISCOV-R battery using your vehicle’s cigarette lighter/auxiliary DC power supply. You can continue using your DISCOV-R while it is running from a DC power source. CAUTION: Make sure the vehicle has been started before plugging in your DC power supply to help avoid draining the battery. - Page 32 To contact customer service, reorder accessories, or more: Please visit Belluscura.com or call (877)-GO-XPLOR Belluscura Company Address: 15 Fetter Lane - London, United Kingdom EC4A 1BW 5504 Democracy Drive, Suite 200, Plano, TX 75024 ® ©2024 Belluscura LLC. All rights Reserved LBL 300-05-10-0040-ENG REV A...
