Belluscura X-PLO2R User Manual

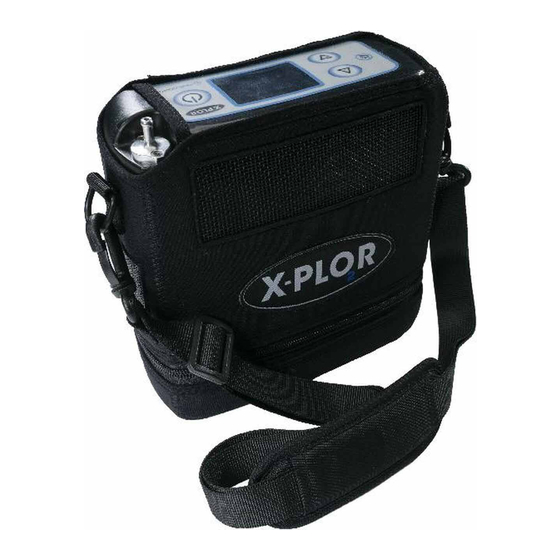

Portable oxygen concentrator
Hide thumbs Also See for X-PLO2R:
Table of Contents

Advertisement

Quick Links

Download this manual
®®
X-PLO
R
PORTABLE OXYGEN CONCENTRATOR
TM
2
USER MANUAL
®
LIVE LIFE BREATHE EASY GO X-PLO
1-877-774-9271 | www.oxygenconcentratorstore.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-PLO2R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Belluscura X-PLO2R

Summary of Contents for Belluscura X-PLO2R

  • Page 1 ®® X-PLO PORTABLE OXYGEN CONCENTRATOR USER MANUAL ® LIVE LIFE BREATHE EASY GO X-PLO 1-877-774-9271 | www.oxygenconcentratorstore.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS X-PLO Checklist Quick Start Guide SECTION 1 Introduction SECTION 2 Safety Information Contraindications General Precautions Warnings Cautions SECTION 3 Operating the X-PLO Turning the X-PLO R ON & OFF Audible Alarm Flow Setting LCD Screen Air Intake & Exhaust Carrying Bag SECTION 4 Battery...
  • Page 3 X-PLO R INCLUDES THE FOLLOWING ONE 4-CELL OR X-PLO CARTRIDGE 8-CELL BATTERY AIR INTAKE FILTER AC POWER SUPPLY DC POWER SUPPLY CARRYING BAG CARRYING BAG CARRYING BAG HANDLE SHOULDER STRAP QUICK START GUIDE USER MANUAL WARNING: Do not use the X-PLO R or any accessory if they show any sign of damage Call your equipment provider for replacement IMPORTANT: While the box or packaging may look to have damage, such as tears or...

  • Page 4: X-Plor

    QUICK START GUIDE It is quick and easy to get your X-PLO R started, but please read the entire User Manual before using your X-PLO R DO NOT TURN ON X-PLO R UNTIL STEP 4. 1 REMOVE DUST CAP & INSERT CARTRIDGE •...

  • Page 5: Introduction

    INTRODUCTION This user manual serves as a reference for users of the X-PLO R and should be read in its entirety before operating the X-PLO R The term “POC” will be used to refer to the X-PLO R “Patient” and “User” are used interchangeably The term sieve cartridge and cartridge will be used interchangeably throughout the document X-PLO R enables patients who need a POC to be treated at home according to a...

  • Page 6: Safety Information

    Consult your equipment provider for type of back-up system recommended WARNING: It is the responsibility of the patient to make back-up arrangements for alternative oxygen supply when traveling Belluscura® assumes no liability for persons choosing not to adhere to manufacturer recommendations CONTRAINDICATIONS...

  • Page 7: Warnings

    • Use only approved X-PLO R parts and accessories to maintain the efficacy of oxygen therapy for prescribed settings • Use of accessories other than those approved by Belluscura could result in increased electromagnetic emissions or decreased electromagnetic immunity of X-PLO R Either of these results could affect operation of your unit •...
  • Page 8 • The settings of other models or brands of oxygen therapy equipment do not correspond with the settings of the Belluscura X-PLO • Wind or strong drafts can adversely affect accurate delivery of oxygen therapy • This device produces enriched oxygen gas which accelerates combustion DO NOT ALLOW SMOKING OR OPEN FLAMES within 10 feet of this device while in use •...

  • Page 9: Cautions

    CAUTIONS • When the POC is used in an automobile, disconnect it from the DC auto adapter outlet when the automobile is turned off • Do not operate the POC in a non-running vehicle for an extended period of time, as this may deplete the vehicle’s battery and prevent the vehicle from starting •...

  • Page 10: Operating The X-Plo

    OPERATING THE X-PLO The X-PLO R is a Pulse Mode POC Each time you inhale through your nose, you will feel a pulse of oxygen that the POC provides, determined by your breath rate and the setting number As soon as you begin breathing through the cannula, the X-PLO R will sense you are breathing from it and begin delivering pulses of oxygen based on your breathing When a breath is detected, a breath icon...

  • Page 11: Audible Alarm

    AUDIBLE ALARM BUTTON • Pressing this button will toggle the X-PLO R breath detection audible alarm on and off The corresponding icon will be displayed on the screen • Pressing this button during an active alarm will acknowledge and mute the audible alarm This will not remove the visual message on the POC display For more information on the Alarms see Chapter 8 FLOW SETTING CONTROL BUTTONS...

  • Page 12: Battery

    • Up to 5 hours of battery life with the 8-cell battery WARNING: Use only with Belluscura X-PLO R Use only the power supply listed in the manual There is a risk of fire, burns, explosion, and release of toxic material if the battery and the power supply are not used properly Do not crush or heat above 176˚F (80˚C) Do not short circuit or reverse polarity...
  • Page 13 BATTERY INDICATOR ON LCD SCREEN • When POC is turned on, the battery indicator will show the level of the battery charge • Each of the five horizontal yellow bars represents approximately 20% of the total battery charge • When the X-PLO R is using an external AC or DC power supply, the icon will appear on the LCD screen If there is no icon, the battery is working...

  • Page 14: Charging The Battery

    STEPS TO CHARGING THE BATTERY Connect the power supply to the X-PLO R power receptacle on the front of the battery (image 1) Plug the other end of the AC power supply (image 2) into a power outlet, or start the car and plug in the DC (image 3) power supply into the car's DC outlet...

  • Page 15: User-Replaceable Cartridges

    USER-REPLACEABLE CARTRIDGES A cartridge will arrive in a Mylar bag in the box with your X-PLO R You have to insert the cartridge into the unit before using the X-PLO R Do not remove the dust cap until it is time to install the cartridge To insert the cartridge, first ensure the POC is powered off and then disconnect the battery (see Chapter 4) Remove the dust cap from the top of the cartridge (see page 14) Push the cartridge top first into the unit until it is fully inside and the handle lays...
  • Page 16 CARTRIDGE REPLACEMENT Turn off the X-PLO R by pressing the power button to shut down the POC Remove the X-PLO R from the carrying bag, if applicable Remove the battery from the X-PLO Place the X-PLO R on its side to access the underside of the POC (see image 1) Pull the cartridge assembly out of the POC by pulling on the cartridge pull handle...
  • Page 17 STEPS FOR CARTRIDGE REPLACEMENT INSTALLING CARTRIDGE REMOVING CARTRIDGE 1-877-774-9271 | www.oxygenconcentratorstore.com...

  • Page 18: Nasal Cannula

    NASAL CANNULA Nasal cannula is not included with the X-PLO R and must be purchased separately. The proper placement and positioning of the nasal cannula in the nose is critical to the consistent operation of the X-PLO R The length of the cannula should not exceed 25 feet in length Tubing lengths greater than 25 feet may impede proper flow Take care that any hose lying on the floor is not trapped under heavy items or allowed to kink Ensure the tubing is not laid across the floor where it can be a tripping hazard...

  • Page 19: Troubleshooting

    TROUBLESHOOTING The table below lists common problems and actions you can take If you are unable to resolve a problem, please contact your equipment provider PROBLEM POSSIBLE CAUSE WHAT YOU SHOULD DO Use the AC or DC power cord to operate the device (with the battery Battery charge is inserted) to recharge the battery If...

  • Page 20: Alarms

    ALARMS NOTIFICATIONS X-PLO R incorporates alarms (a message on the display combined with an audible tone) of only one type: those that arise from monitored equipment functions, which indicate that the user’s attention to the alarm condition is required Audible notifications, ranging from 65 dB(A) to 85 dB(A), depending on equipment conditions and the user’s position, are to alarm the user of problems To ensure that audible notifications may be heard, the maximum distance that the user can move away from it must be determined to suit the surrounding noise level...
  • Page 21 These alarms can result in the shutdown of the POC. MESSAGE DISPLAY & TEXT CONDITION/ACTION/EXPLANATION POC has not detected a breath for 15 seconds Check that cannula is connected to POC, there are no kinks in the tubing and cannula is positioned properly in your nose The alarm will sound again 30 seconds after No breath detected the first alarm if the condition is not corrected If the...

  • Page 22: Accessories & Replacement Parts

    ACCESSORIES & REPLACEMENT PARTS Some of the accessories are included with your X-PLO R All are also available to order: PICTURE # ACCESSORY NAME MODEL # 4-Cell Battery 50084 8-Cell Battery 50188 Cartridge 50073-1 Air Intake Filter 50351-1 Carry Bag 52191-1 AC Power Supply 53011-1...

  • Page 23: Maintenance & Cleaning

    DISPOSAL Belluscura expects end users to dispose of the POC in an environmentally friendly way and in accordance with local laws and regulations Electrical and electronic equipment is labeled with the crossed-out wheeled bin symbol indicating that the equipment should be...
  • Page 24 X-PLO R & RECHARCHEABLE BATTERY The exterior shell of the X-PLO R and the rechargeable battery should be cleaned as needed X-PLO To clean the exterior: wipe the outside surface of the case with a cloth dampened with a mild liquid detergent and water solution at room temperature BATTERY To clean the exterior: wipe the outside surface of the case with a cloth...

  • Page 25: Labeling Symbols

    LABELING SYMBOLS SYMBOLS MEANING SYMBOLS MEANING Refer to instruction manual/ Do Not Disassemble (contact booklet your equipment provider for servicing by authorized A warning indicates that the personnel) personal safety of the patient WARNING may be involved Disregarding Do Not Dispose of In Unsorted Municipal Waste a warning could result in significant injury...
  • Page 26 USER INTERFACE LABEL SYMBOLS MEANING ON / OFF Button Increase Flow Setting Decrease Flow Setting Audible Alarm Enable / Disable Button POWER STATUS ICONS SYMBOLS MEANING Battery charge level is 0-19% The actual percentage will be displayed next to the icon Battery charge level is 20-39% The actual percentage will be displayed next to the icon Battery charge level is 40-59% The actual percentage will be...

  • Page 27: Specifications

    SPECIFICATIONS CONCENTRATOR Dimensions: L / W / H : 7 3 in (18 5 cm ) / 2 9 in (7 4 cm ) / 6 5 in (16 5 cm ) With 4-cell battery L / W / H : 7 3 in (18 5 cm ) / 2 9 in (7 4 cm ) / 7 in (17 8 cm ) With 8-cell battery L / W / H : 7 3 in (18 5 cm ) / 2 9 in (7 4 cm ) / 7 6 in (19 3 cm ) Weight of unit with:...

  • Page 28: Flow Settings & Pulse Volume

    CLASSIFICATIONS MODE OF OPERATION: CONTINUOUS DUTY: Type of Protection Against Class II Electrical Shock: Degree of Protection to Concentrator Type BF Components Against Electrical Shock: IP22 - Vertically falling drops of water shall have no harmful effects when enclosure is tilted at any angle up Degree of Protection to to 15˚...

  • Page 29: Electromagnetic Interference

    ELECTROMAGNETIC INTERFERENCE X-PLO R provides supplemental oxygen and it will display an alarm message if there is a condition that interferes with its function It is designed for use in environments that are within a public low-voltage power supply network used for homes and businesses, in which radio frequency (RF) disturbances are controlled It has been tested according to the requirements of IEC 60601-1-2 and it complies with the electromagnetic compatibility limits contained in that standard These limits are specified to provide...
  • Page 30 TEST/ IEC 60601 TEST COMPLIANCE ELECTROMAGNETIC STANDARD LEVEL LEVEL ENVIRONMENT- GUIDANCE Electro-Static Floors should be wood, concrete or ceramic tile If 8kV contact/ 15kV Air 8kV contact/ 15kV Air Discharge Immunity floors are covered with synthetic material, the relative discharge discharge IEC 61000-4-2 humidity should be at least 30%...

  • Page 31: Traveling With The X-Plo

    TRAVELING WITH X-PLO When you travel with your X-PLO R, make sure you pack the following: • Fully charged battery • Enough fully charged batteries to last at least 150% of the length of your flight or the period of time when you will not be able to charge your battery •...
  • Page 32 E-mail: sales@amsrco.com How to Contact Belluscura: customerservice@belluscura.com / 1-888-469-7567 To return a POC, contact your equipment provider. If you need to contact Belluscura directly, email the customer service team at customerservice@belluscura.com. You can also use the following address: Belluscura...
