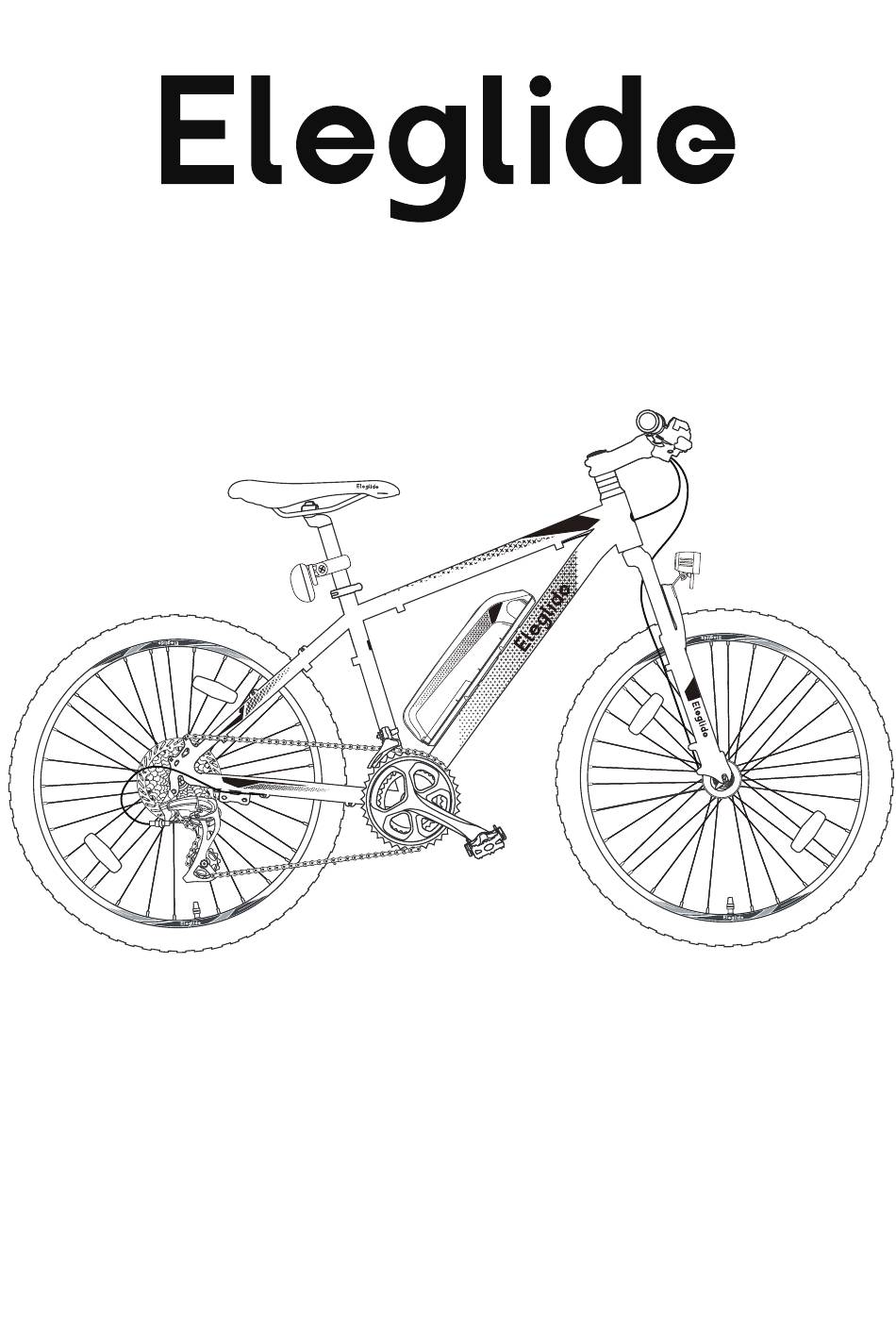

  • Page 1 User Manual...
  • Page 2 Pedelec and Pedal Assist A pedelec (from pedal electric cycle) or EPAC  (Electronically Power Assisted Cycles), is a type of  electric bicycle where the rider's pedalling is assisted  by an electric motor.  Pedal assist is a mode on your moped bike that provides power from the motor to help you pedal more easily and move faster.
  • Page 3 CATALOGUE ENGLISH 1~18 ITALIANO 19~36 FRANÇAIS 37~54 DEUTSCHE 55~72 ESPAÑOL 73~90 POLSKI 91~108...

  • Page 4: Table Of Contents

    2. Warning 3. Diagram 4. Specification 5. Package List 6. Assembly Guide 7. Battery Indicator Light Instruction 8. Display Guide (M1) 9. Display Guide (M1 Plus) 10. App Guide 11. Maintenance 12. Troubleshooting 13. Warranty 14. Compliance Statements 1. Note Before your first ride, it is important for you to know your new pedelec well, so that you can get the best...

  • Page 5: Diagram

    When braking on a wet road, the braking distance is usually longer than on a dry road. Therefore, brake earlier for a safer stop. When you have to brake urgently, please hit the right hand brake first to stop the rear wheel, and then hit the left hand brake, especially when you brake at a high speed.
  • Page 6 A. 70.5" G. 23" C. 43" E. 40.5" B. 41" H. 27.5" D. 33" F. 30" M1 Plus M1 Plus (27.5") M1 Plus (29") A. 70.5" D. 33.5" G. 21.2" A. 71.3" D. 34.3" G. 21.2" B. 41" E. 41.3"...

  • Page 7: Specification

    4. Specification Model M1 Plus (27.5") M1 Plus (29") Unfolded Size 1790 1041mm 1810x700x1080mm Width of Handlebar 680mm 700mm N.W. 21.3kg 21.7kg 22.8kg Waterproof Level IPX4 Material Basic Spec. Aluminium Alloy Max. Range Assist Mode 67km 104km Manual Mode No Limit...

  • Page 8: Package List

    Note: the max speed and range data are provided by the Eleglide lab. The max range is achieved under the following conditions: a full charge, a 75kg load, 26°C temperature, 15km/h constant speed, on flat roads with no strong wind.
  • Page 9 Step 3 Install The Front Wheel A) Put the bike upside down. B) Loose the nut to remove the temporary protected bar. C) Insert the wheel between the fork blades so that the axle can seat firmly at the fork dropouts (the slots at the tip of the fork blades).
  • Page 10 Step 5 Install The Pedals Pedal Left Right Step 6 Install The Seat A) Put the seat post into the support frame. B) Adjust the seat to a suitable height and fix it by locking the quick-release clip. Step 7 Install The Battery A) Put the battery in the right position and unlock the battery before you use it.

  • Page 11: Battery Indicator Light Instruction

    Step 8 Install The Reflectors Step 9 Turn The Power on A) Press the on/off button on the control panel to turn the power on. Then it’s ready to go! 7.Battery Indicator Light Instruction...

  • Page 12: Display Guide (M1)

    Number of Lights On Battery Level 81%-100% 51%-80% 11%-50% 0-10% (Only red light on) 8. Display Guide (M1) Power on/off Headlight on/off Press the ON/OFF button to turn the LED When the display is turned on, press the display on/off.

  • Page 13: Display Guide (M1 Plus)

    When the display is on, long press the on/off button for 8 seconds till the display flashes. The ODO data will be removed when the display reboots. Restoring Factory Settings When the display is on, long press the on/off button and for 5 seconds till the display flashes. Or restore the factory settings via the Eleglide app.
  • Page 14 3. The password can only be altered via the Eleglide app. 4. If you forget the password, you can restore the factory settings via the Eleglide app. And the password will be changed back to 111.
  • Page 15 Error Tracking MODE TRIP Error Codes Causes Solutions a.Replace the motor; The motor is out of phase. b.Replace the motor adapter cable; c.Replace the controller; a.Re-connect the display and controller; Communication error; b.Replace the display; c.Replace the controller; Both E01 and E04 are occurring. Check the above solutions of E01 and E04.

  • Page 16: App Guide

    10. App Guide Your Eleglide bike can be controlled with an app that is available on Apple iOS (11.0+) and Android devices (5.0+). More functions can be checked and activated via the app, such as setting the bike lock code and changing the speed unit.

  • Page 17: Maintenance

    11. Maintenance Cleaning Use a soft and wet cloth to wipe the mainframe clean. Dirt that is hard to remove can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft and damp cloth. Do not wash your pedelec with alcohol, gasoline, acetone, or other corrosive/volatile solvents.
  • Page 18 C) Other Parts Head Sets Remove, clean and lubricate the rims annually. Replace them if necessary. Joints Continuously check all nuts, bolts and quick-release devices for tightness. Lubricate the brake cables slightly with oil monthly. Check the adjustment and replace the brake parts (blocks, shoes, pads) in time Brakes if they are worn.

  • Page 19: Troubleshooting

    12. Troubleshooting Please check the following issues and solutions before sending the product to designated repair offices. Problem Possible Causes Solutions a. No power supply; a. Charge the battery; The display fails to work b. The electric wire is not plugged in b.

  • Page 20: Warranty

    13. Warranty Eleglide provides an easy, reliable and efficient service for all products under our warranty. Please refer to the chart below for the warranty periods of various products and accessories starting from the date of purchase. Our distributors, partners, sellers and re-sellers should provide after-sale services directly to their customers.

  • Page 21: Compliance Statements

    Valid Proof of Purchase The order number of your online purchase from the Eleglide's authorized reseller; Sales invoice; Dated sales receipt from the authorized Eleglide's reseller; Note: more than one type of proof of purchase may be required to process a warranty claim (such as receipt of money transfer and confirmation of address that the item was originally shipped to).
  • Page 22 HUIZHOU JIYUN E-COMMERCE CO.,LTD. Room 03, 17th Floor, Unit 1, Building 16, Dong'anGarden North District, No.288 Longhai 2nd RoadDaya Bay West District, Huizhou, Guangdong, China http://www.eleglide.com/ support@eleglide.com CET PRODUCT SERVICE LTD. CET Product Service Ltd. Osterholzallee 144, 71636 Ludwigsburg Germany Beacon House Stokenchurch Business Park, E-mail：...
