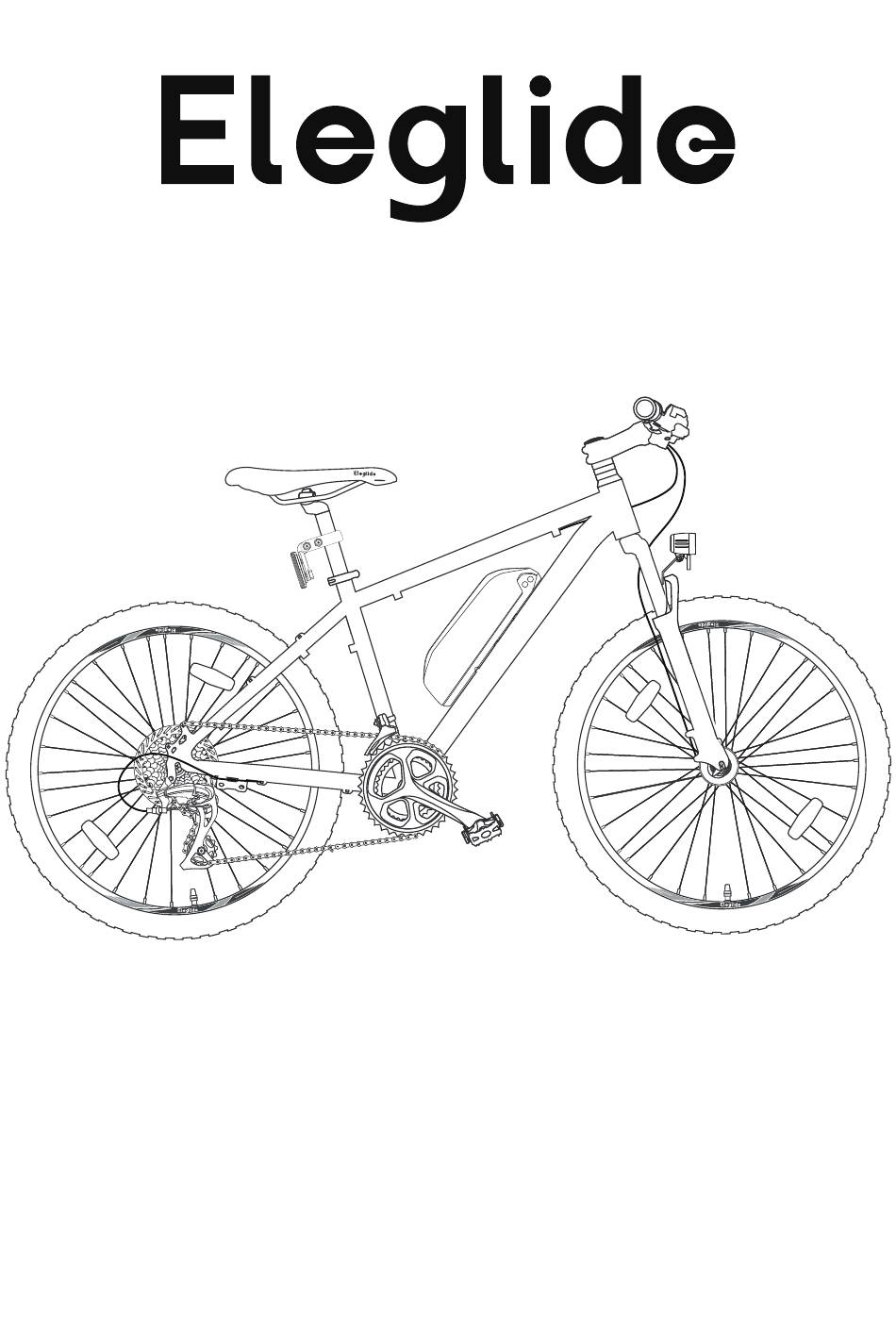

- Page 1 User Manual...
- Page 2 Pedelec and Pedal Assist A pedelec (from pedal electric cycle) or EPAC (Electronically Power Assisted Cycles), is a type of electric bicycle where the rider's pedalling is assisted by an electric motor. Pedal assist is a mode on your moped bike that provides power from the motor to help you pedal more easily and move faster.
- Page 3 *Before your first operation, please read the user manual carefully! Contents 1. Note 2. Warning 3. Diagram 4. Specification 5. Package List 6. Assembly Guide 7. Battery Indicator Light Instruction 8. Display Guide 9. App Guide 10. Maintenance 11. Troubleshooting 12.
- Page 4 When braking on a wet road, the braking distance is usually longer than on a dry road. Therefore, brake earlier for a safer stop. When you have to brake urgently, please hit the right hand brake first to stop the rear wheel, and then hit the left hand brake, especially when you brake at a high speed.
- Page 5 1. Brake Lever 2. Handle 3. Front Derailleur Lever 4. Rear Derailleur Lever 5. Bell 6. Display M2 (27.5”) M2 (29”) A. 70.9” F. 31.1” K. 53.4° A. 72.8" F. 32.4" K. 51.2° B. 42.5” G. 23.4” L. 27.2” B. 42.5"...
- Page 6 4. Specification Model M2 (27.5”) M2 (29”) Unfolded Size 1800x680x1060mm 1865x680x1070mm Width of Handlebar 680mm (Without Grip Covers), 700mm (With Grips Covers) N.W. 22kg 23kg Waterproof Level IPX4 Basic Spec. Material Aluminium Alloy (AL6061) Assist Mode 130km Max. Range Manual Mode...
- Page 7 Note: the max speed and range data are provided by the Eleglide lab. The max range is achieved under the following conditions: a full charge, a 75kg load, 26°C temperature, 15km/h constant speed, on flat roads with no strong wind.
- Page 8 Step 3 Install The Front Wheel A) Put the bike upside down. B) Loose the nut to remove the temporary protected bar. C) Insert the wheel between the fork blades so that the axle can seat firmly at the fork dropouts (the slots at the tip of the fork blades).
- Page 9 Step 5 Install The Pedals Pedal Left Right Step 6 Install The Seat A) Put the seat post into the support frame. B) Adjust the seat to a suitable height and fix it by locking the quick-release clip. Step 7 Install The Battery A) Put the battery in the right position and unlock the battery before you use it.
- Page 10 Step 8 Install The Reflectors Step 9 Turn The Power on A) Press the on/off button on the control panel to turn the power on. Then it’s ready to go! 7.Battery Indicator Light Instruction...
- Page 11 Correspondence between battery indicator lights and battery level under 1C current discharge: Number of Lights On Battery Level 66%-100% 51%-65% 11%-50% 0-10% (Only red light on) 8.Display Guide Contents on The Display On/off Button Light Mark Speed/ Speed Level Error Code Push Mode Brake/ Malfunction Mark...
- Page 12 Restoring Factory Settings When the display is on, long press the on/off button and for 5 seconds till the display flashes. Or restore the factory settings via the Eleglide app. Hidden Menu First, long press both to enter the hidden menu. Second, short press to shift among different menu pages.
- Page 13 3. The password can only be altered via the Eleglide app. 4. If you forget the password, you can restore the factory settings via the Eleglide app. And the password will be changed back to 111.
- Page 14 To download the app, please scan the QR code with your Apple/Android device or search for "Eleglide" in the app store. To control your Eleglide bike via the app, you will need to enter a password. The default password is 000000.
- Page 15 10. Maintenance Cleaning Use a soft and wet cloth to wipe the mainframe clean. Dirt that is hard to remove can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft and damp cloth. Do not wash your pedelec with alcohol, gasoline, acetone, or other corrosive/volatile solvents.
- Page 16 C) Other Parts Head Sets Remove, clean and lubricate the rims annually. Replace them if necessary. Joints Continuously check all nuts, bolts and quick-release devices for tightness. Lubricate the brake cables slightly with oil monthly. Check the adjustment and replace the brake parts (blocks, shoes, pads) in time Brakes if they are worn.
- Page 17 11. Troubleshooting Please check the following issues and solutions before sending the product to designated repair offices. Problem Possible Causes Solutions a. No power supply; a. Charge the battery; The display fails to work b. The electric wire is not plugged in b.
- Page 18 12. Warranty Eleglide provides an easy, reliable and efficient service for all products under our warranty. Please refer to the chart below for the warranty periods of various products and accessories starting from the date of purchase. Our distributors, partners, sellers and re-sellers should provide after-sale services directly to their customers.
- Page 19 Valid Proof of Purchase The order number of your online purchase from the Eleglide's authorized reseller; Sales invoice; Dated sales receipt from the authorized Eleglide's reseller; Note: more than one type of proof of purchase may be required to process a warranty claim (such as receipt of money transfer and confirmation of address that the item was originally shipped to).
- Page 20 HUIZHOU JIYUN E-COMMERCE CO.,LTD. Room 03, 17th Floor, Unit 1, Building 16, Dong'anGarden North District, No.288 Longhai 2nd RoadDaya Bay West District, Huizhou, Guangdong, China http://www.eleglide.com/ support@eleglide.com CET PRODUCT SERVICE LTD. CET Product Service Ltd. Osterholzallee 144, 71636 Ludwigsburg Germany Beacon House Stokenchurch Business Park, E-mail：...
