Numbering System - RCA SelectaVision VideoDisc SJT 400 Basic Service Data

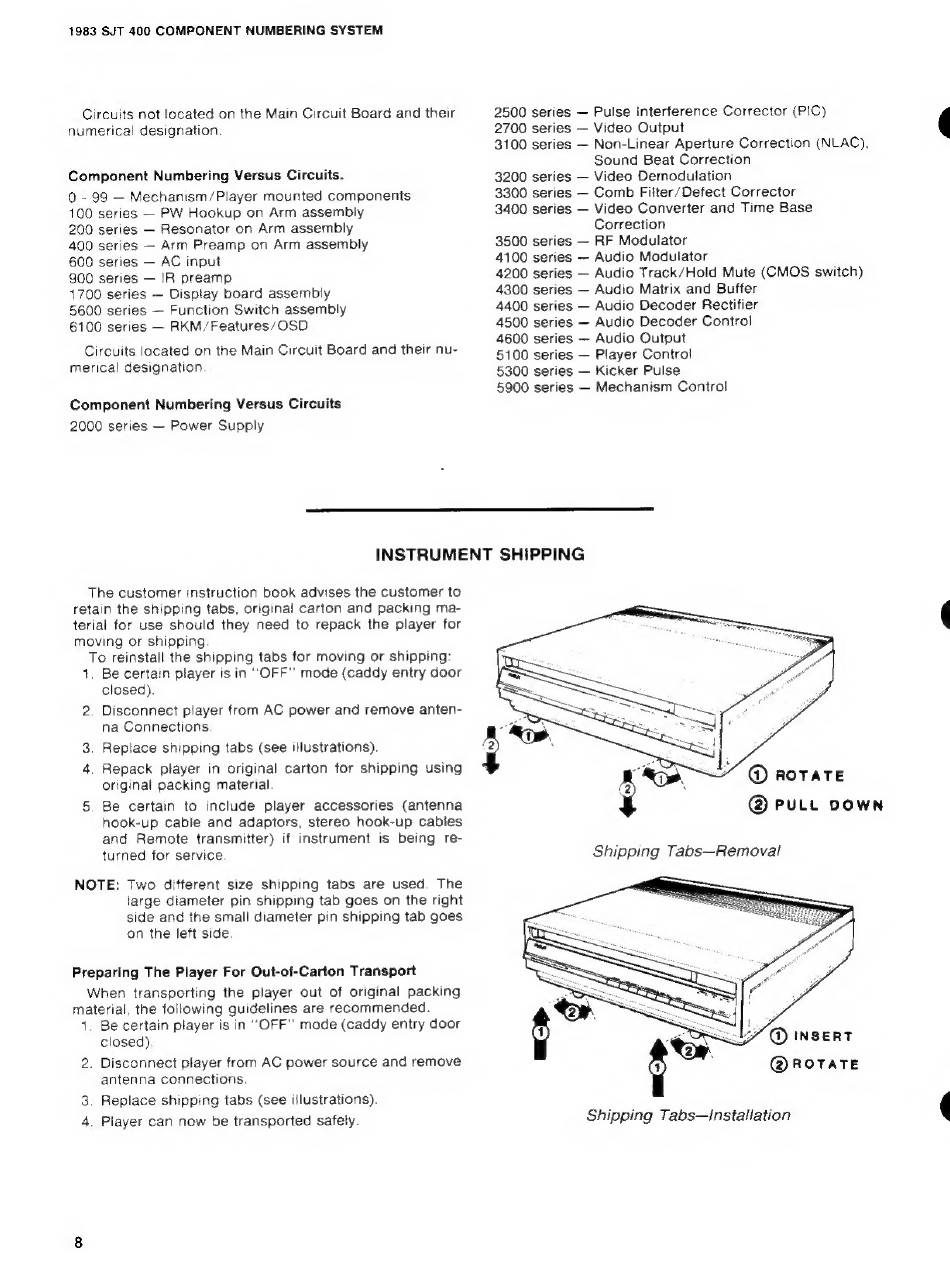

1983 5ЈТ 400 COMPONENT NUMBERING SYSTEM
Circuits not located on the Main Circuit Board and their
numerical designation.
Component Numbering Versus Circuits.
0 - 99 — Mechanism /Player mounted components
100 series — PW Hookup on Arm assembly
200 series — Resonator on Arm assembly
400 series — Arm Preamp on Arm assembly
600 series — AC input
900 series — IR preamp
1700 series — Display board assembly
5600 series — Function Switch assembly
6100 series — RKM/Features/OSD
Circuits located on the Main Circuit Board and their nu-
merical designation
Component Numbering Versus Circuits
2000 series — Power Supply
2500 series — Pulse Interference Corrector (PIC)
2700 series — Video Output
3100 series — Non-Linear Aperture Correction (NLAC),
Sound Beat Correction
3200 series — Video Demodulation
3300 series — Comb Fiiter/Defect Corrector
3400 series — Video Converter and Time Base
Correction
3500 series — RF Modulator
4100 series — Audio Modulator
4200 series — Audio Track/Hold Mute (CMOS switch)
4300 series — Audio Matrix and Buffer
4400 series — Audio Decoder Rectifier
4500 series — Audio Decoder Control
4600 series — Audio Output
5100 series — Player Contro!
5300 series — Kicker Pulse
5900 series — Mechanism Control
INSTRUMENT SHIPPING
The customer instruction book advises the customer to
retain the shipping tabs, original carton and packing ma-
terial for use should they need to repack the player for
moving or shipping
To reinstall the shipping tabs for moving or shipping:
1. Be certain player is in "ОРЕ" mode (caddy entry door
closed).
2. Disconnect player from AC power and remove anten-
na Connections
3. Replace shipping tabs (see illustrations).
4. Repack player in original carton for shipping using
original packing material.
5. Be certain to include player accessories (antenna
hook-up cable and adaptors, stereo hook-up cables
and Remote transmitter) if instrument is being re-
turned for service
NOTE: Two different size shipping tabs are used. The
large diameter pin shipping tab goes on the right
side and the small diameter pin shipping tab goes
on the left side
Preparing The Player For Out-of-Carton Transport
When transporting the player out of original packing
material, the following guidelines are recommended.
1. Be certain player is in "OFF" mode (caddy entry door
closed)
2. Disconnect player from AC power source and remove
antenna connections.
3. Replace shipping tabs (see illustrations).
4. Player can now be transported safely.
@ PULL DOWN
Shipping Tabs—Removal
@ROTATE
Shipping Tabs—installation
