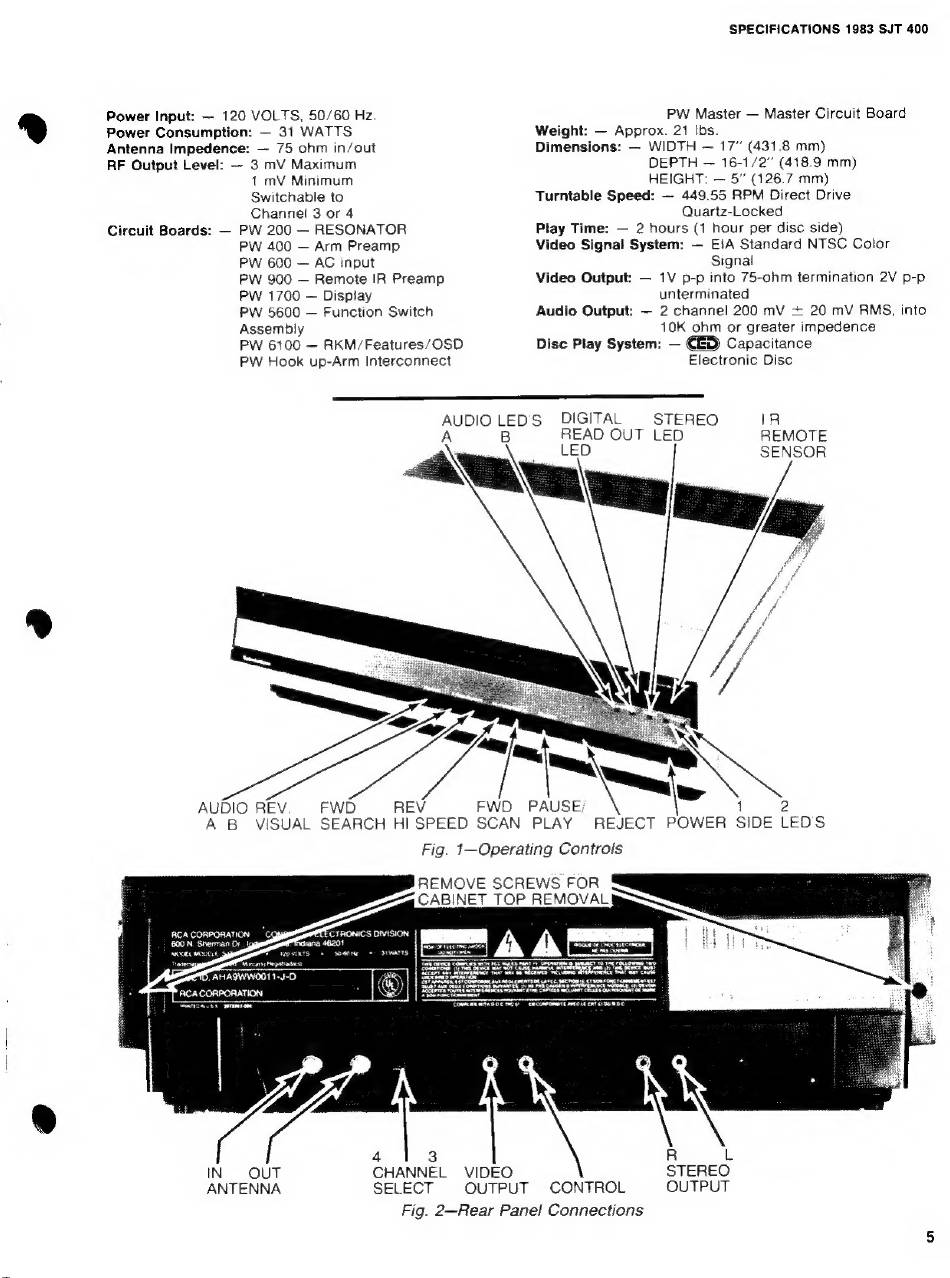

SPECIFICATIONS 1983 5ЈТ 400
Power Input: — 120 VOLTS, 50/60 Hz. PW Master — Master Circuit Board
9 Power Consumption:
- 31 УУАТТ5
Weight: — Approx. 21 Ibs.
Antenna Impedence:
— 75 ohm in/out
Dimensions:
— WIDTH — 17" (431.8 mm)
RF Output Level: — 3 mV Maximum
DEPTH — 16-1/2" (418.9 mm)
1 mV Minimum HEIGHT: — 5" (126.7 mm)
Switchable to Turntable Speed: — 449.55 RPM Direct Drive
Channel 3 or 4 Quartz-Locked
Circuit Boards: —
PW 200 — RESONATOR
Play Time: — 2 hours (1 hour per disc side)
PW 400 — Arm Preamp Video Signal System: — EIA Standard NTSC Color
PW 600 — AC input Signal
PW 900 — Remote IR Preamp Video Output: — 1V p-p into 75-ohm termination 2V p-p
PW 1700 — Display unterminated
PW 5600 — Function Switch Audio Output: — 2 channel 200 mV -- 20 mV RMS, into
Assembly 10K ohm or greater impedence
PW 6100 — RKM/Features/OSD Disc Play System: — Capacitance
PW Hook up-Arm Interconnect Electronic Disc
AUDIO LEDS DIGITAL STEREO IR
READ OUT LED REMOTE
SENSOR
- Wy
j
AUDIO REV FWD REV FWD PAUSE
A В VISUAL SEARCH HI SPEED SCAN PLAY REJECT POWER SIDE LED'S
Fig. 1—Operating Controls
REMOVE SCREWS FOR
CABINET TOP REMOVAL
ЯСА CORPORATION `
600 М. Sherman Dr log мө ۴
IN OUT CHANNEL VIDEO STEREO
ANTENNA SELECT OUTPUT CONTROL OUTPUT
Fig. 2—Rear Panel Connections
