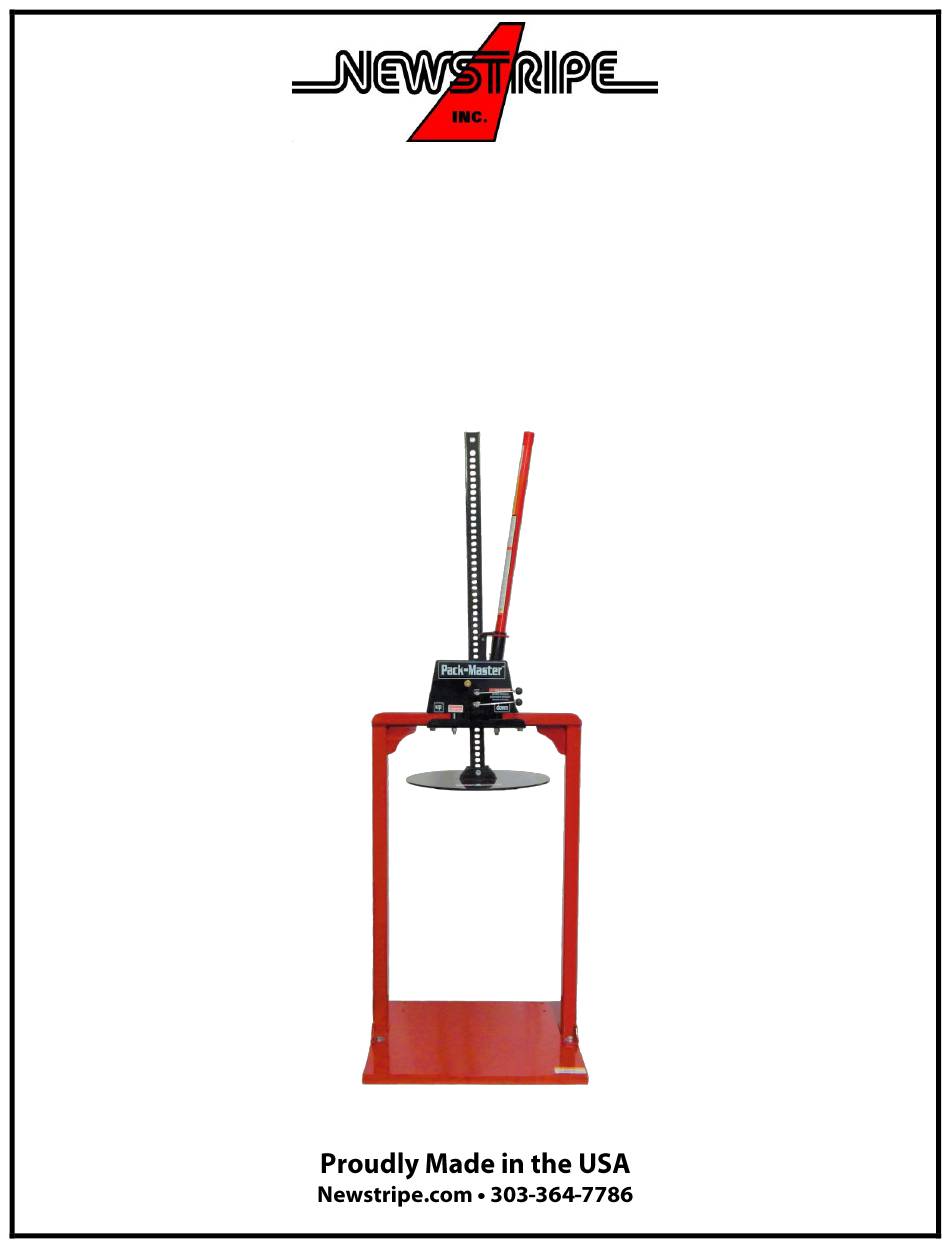

- Page 1 Product Manual PackMaster Manual Compactor 10001258 1258.0924...
-
Page 2: Table Of Contents
Warranty……………………......Page 6 Please check the serial number on your unit. This manual is for units with serial number 1025739 and above only. For units with serial numbers below 1025739, please contact Newstripe for the correct manual. -
Page 3: Precautionary Warnings
PackMaster Manual Compactor PRECAUTIONARY WARNINGS • PLEASE read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or severe injury to personnel. • DO NOT crush glass containers, items that may shatter, or items that contain volatile vapors. -
Page 4: Assembly
PackMaster Manual Compactor Your PackMaster Manual package contains the following: In Box In Parts Bag • Base Plate • (6) ½-13 x 1 ½” Long Bolts • Upright Arms (2) • (6) ½-13 Nylock Nuts • Jack Assembly • (12) ½” Flat Washers •... -
Page 5: Operation
PackMaster Manual Compactor OPERATION 1. Engage the handle lock hook as shown to hold the 4. Disengage the handle lock hook, and then pump handle in the upright position when rotating levers. the jack handle up and down to lower the ram plate for compaction. -
Page 6: Parts List
PackMaster Manual Compactor PARTS LIST Part Part Item Description Item Description Number Number Upright 10000988 Handle Socket 10001093 Base Plate 10004752 Jack Pin Spring 10001305 Jack Assembly 10001017 Pitman Pin 10001094 Ram Plate (20” Diameter) 10001428 Pitman Arm 10001095 Optional Ram Plate (17” Diameter) 10001288 Handle Socket Bolt 10004921... - Page 7 PackMaster Manual Compactor View From Front of Unit #5 Handle Lock Hook #10 Handle Socket #12 Pitman Pin #14 & 15 Handle Socket Bolt & Nut #11 Jack Pin Spring #13 Pitman Arm #6 Jack Support Stud #8 3” Jack Pin w/ Lever #9 Shear Pin w/ Nut #7 4”...
-
Page 8: Warranty
Return Materials Authorization (RMA) from Newstripe and then ship the defective part or parts of the equipment, transportation prepaid by the purchaser, to Newstripe together with a written description of any claimed defect and proof of purchase date of the materials being returned.
