Newstripe Aerovent 3X Installation Manual
Hide thumbs
Also See for Aerovent 3X:
- Product manual (11 pages) ,
- Product manual (10 pages) ,
- Product manual (11 pages)
Advertisement
Quick Links

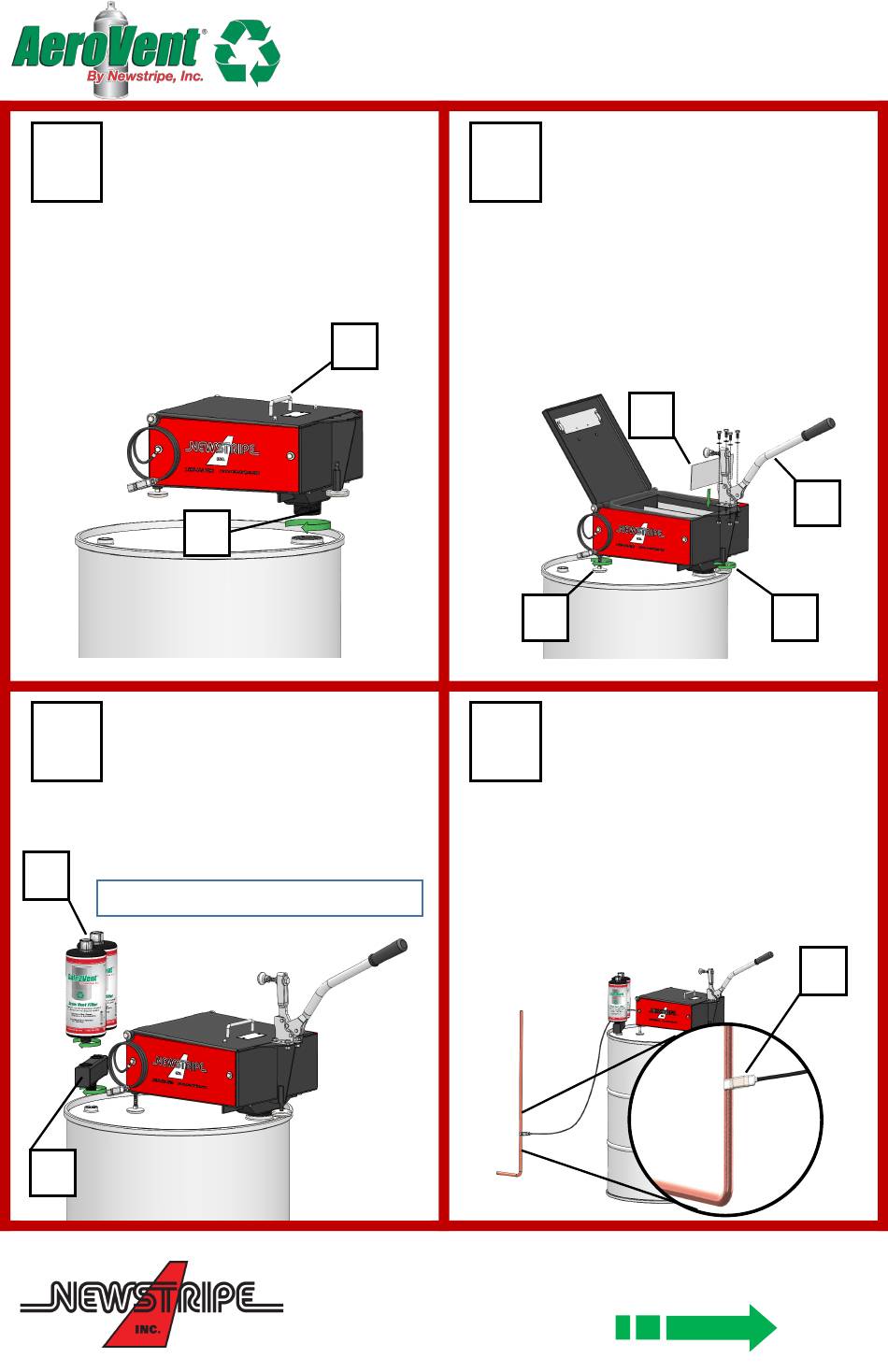

Install Unit on Drum
1
Place pipe end (A) in large drum opening
(rotate unit clockwise until it stops)
Install lid handle (B) on lid with 2 screws
A
Install Filter Housing
3
Install filter manifold (G) in small drum
opening
Rotate clockwise until it stops
Install both filters into manifold
H
* For replacement filters use part #10004703
G
3X Installation Guide
B
1-800-624-6706
www.newstripe.com
Assemble Parts &
2
Secure Unit
Lower rear foot (C) on top of drum, next
to drum edge (turn unit as needed)
Lower front foot (D) onto drum edge
Install lid clamp (E) using 4 bolts, washers
and nuts
Insert can stop (F) into slot at front of tray
F
C
Install Grounding
4
Clamp & Cable
Attach grounding clamp (I) to grounding
source (example: metal water pipe)
Over for Operation Guide
