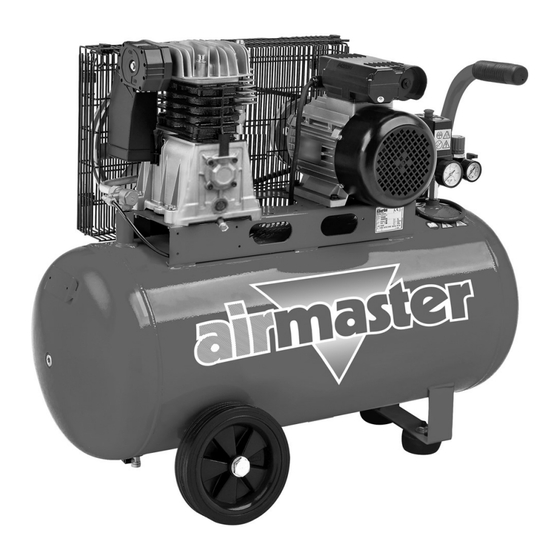

100L BELT DRIVEN AIR COMPRESSOR MODEL NO: AIRMASTER 14/100P PART NO: 2245307 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0824 Rev 2...
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
2. DO NOT operate your compressor with the guard removed. 3. Repairs must only be carried out by a qualified engineer. If problems occur, contact your CLARKE dealer. 4. Before carrying out any maintenance make sure that the pressure is released from the air reservoir and that the compressor is disconnected from the electrical supply.
SAFETY SYMBOLS Read this instruction booklet carefully before positioning, operating or adjusting the compressor. Risk of electric shock. The compressor must be disconnected from the mains supply before removing any covers. DO NOT use in a damp environment. Risk of accidental start-up. The compressor could start automatically in the event of a power cut and subsequent reset.
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE COMPRESSOR TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below.
ASSEMBLY CAUTION: TO PREVENT INJURY, GET ASSISTANCE WHEN LIFTING THIS COMPRESSOR. ATTACH THE WHEELS 1. Slide the axle through the wheel and hole in the wheel frame. • Use the same hole on each side and make sure that the machine is horizontal to the floor.
• Only use CLARKE -ISO100 (SAE30) compressor oil, available from your CLARKE dealer Part No. 3050796. • Take care not to overfill. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
OPERATION If the compressor has not been used for more then 24 hours, open the drain valve (on the bottom of the reservoir) and drain any condensate which has collected. See page 11. MOVING THE AIR COMPRESSOR • Stop the compressor and disconnect it from the power supply before you move it.
TURNING THE COMPRESSOR ON 1. Plug the compressor into the power supply. 2. Lift the On/Off button. • The compressor will operate until the reservoir is fully pressurised. It will then shut down. • The compressor will start up again when the pressure in the reservoir decreases.
REMOVING TOOLS FROM THE AIR HOSE WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU REMOVE OR REPLACE A TOOL. 1. Push down on the On/Off button to stop the compressor. 2. Turn the outlet valve handle to the off position.
4. Switch on the pressure switch (lift the knob or twist switch). If the overload trips repeatedly it may indicate a fault with the compressor. In this case you should contact the Clarke service department. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
Ensure the oil level is between the min and max marks on the dipstick. See “Check the Oil level” on page 7 and top-up if necessary - (use SAE30 compressor oil available from your CLARKE dealer). CLEAN THE AIR FILTER The air filter must be examined monthly or more often in dusty conditions.
REPLACING THE OIL After the first 100 hours use, replace the oil using CLARKE ISO100 (SAE30) compressor oil. Then replace the oil after every 500 hours of operation or every 6 months. To empty the oil from the engine, remove the oil drain plug from the crankcase.
REPLACING THE DRIVE BELT WARNING: MAKE SURE THAT THE COMPRESSOR IS DISCONNECTED FROM THE ELECTRICAL SUPPLY BEFORE REPLACING THE DRIVE BELT. 1. Rotate the clips on the front of the safety cage. 2. Remove the front of the cage and remove the damaged drive belt.
TROUBLESHOOTING CAUTION: DO NOT TRY TO REPAIR OR ADJUST IF YOU ARE UNCERTAIN. IF YOU HAVE ANY QUERIES, CONTACT YOUR CLARKE DEALER. PROBLEM PROBABLE CAUSE REMEDY The compressor Bad electrical connections. 1. Check electrical connections. has stopped and 2. Clean and tighten if necessary.
PARTS LIST NO DESCRIPTION NO DESCRIPTION Screw & Spring Washer Aftercooler Front Cover Screw & Spring Washer Front Cover Gasket Aftercooler Gasket Ball Bearing Screw & Spring Washer Oil Sightglass Set Head Cover Breather (M16 x 1.5) Air Filter Crank Case Hex Screw Baseplate Seal Gudgeon Pin...
Wheel Fixing Parts Plastic Cowling Motor Pulley Bracket Bracket Fixing Parts V Belt SPECIFICATIONS MODEL AIRMASTER14/100P Part Number 2245307 Motor Size 3 HP Voltage 230 VAC (50Hz) Air Displacement 394 L/min (14 cfm) Max Pressure 10 Bar (145 psi) Receiver Capacity...
