Mod.
3000
DS3000-024A
TESTER IP
Sch./Ref. 3000/060
GUIDA RAPIDA
QUICK GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for urmet domus 3000

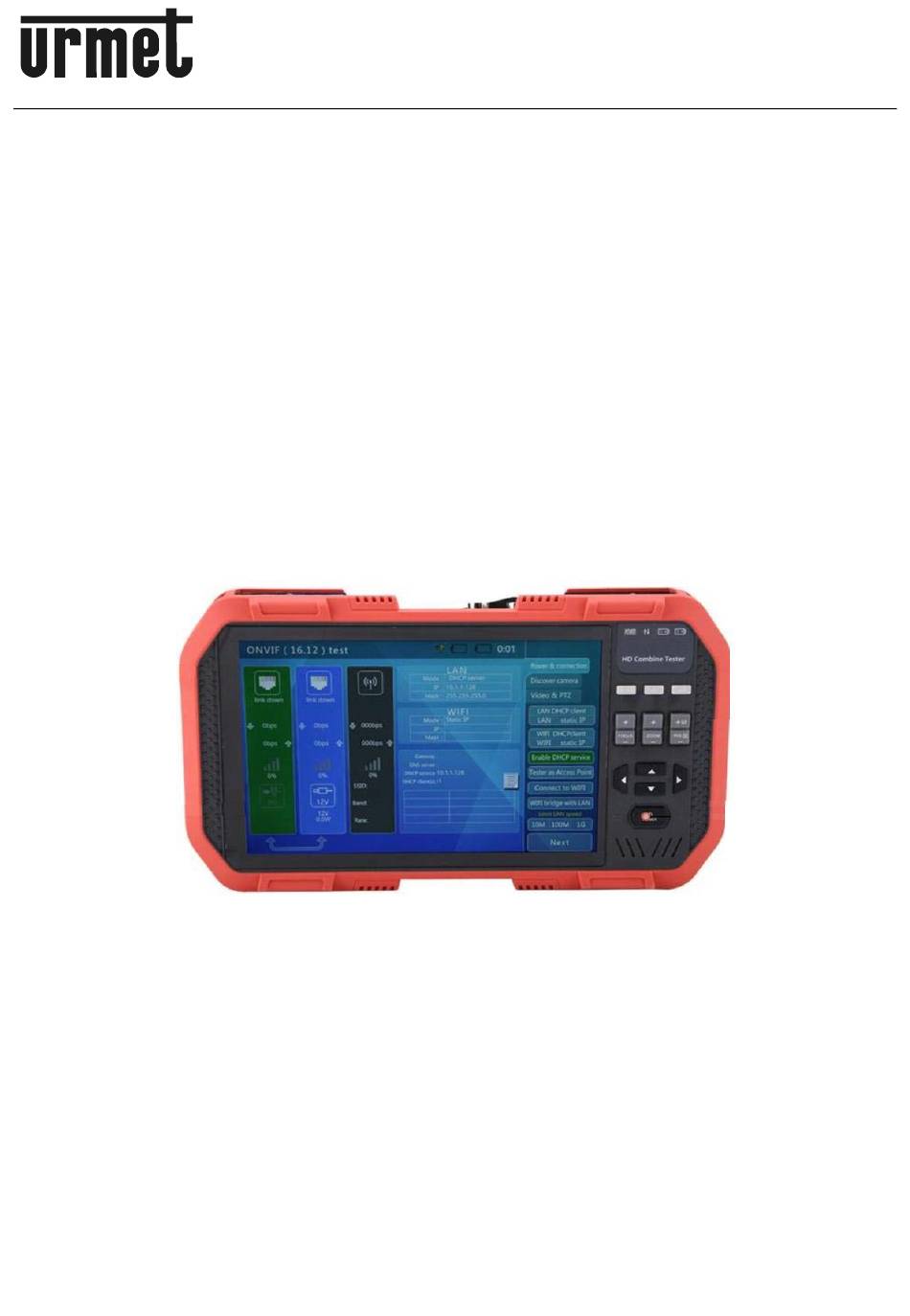

  • Page 1 Mod. 3000 DS3000-024A TESTER IP Sch./Ref. 3000/060 GUIDA RAPIDA QUICK GUIDE...
  • Page 2: Comandi E Regolazioni

    COMANDI E REGOLAZIONI Indicatore alimentazione Indicatore scambio dati in corso quando lampeggia. Indicatore di carica in corso per la batteria 1: si spegne quando la batteria è completamente carica. Indicatore di carica in corso per la batteria 2: si spegne quando la batteria è completamente carica Barra del display con indicazione della modalità...
  • Page 3 Pulsante di "Reset". Ingresso Audio. Ingresso alimentazione 12V/2A Fusibile. Non usato Non usato Non usato Non usato Uscita HDMI di test Ingresso HDMI di test Antenna RF Vano batteria 2 Vano batteria 1 Staffa Antenna WIFI Base di raffreddamento DS3000-024A...
  • Page 4 Non caricarlo oltre 8 ore DICHIARAZIONE DI CONFORMITÀ UE SEMPLIFICATA Il fabbricante, URMET S.p.A., dichiara che il tipo di apparecchiatura: TESTER IP 3000/060 è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: www.urmet.com...
  • Page 5: Informazioni Sulla Batteria

    INFORMAZIONI SULLA BATTERIA ➢ Il dispositivo è dotato di due batterie contenute al suo interno che vengono ricaricate tramite alimentazione esterna. Non rimuovere le batterie. Caricamento e scaricamento Nota Bene • Non utilizzare il dispositivo senza aver prima effettuato la prima carica. •...
  • Page 6 ENGLISH OPERATING FEATURES Power indicator light: Il is ON when the tester starts up. Data sending / receiving indicator light: When RS485/COAXION sending / receiving the data, il flashes (red). Battery 1 {lefl) light: lt is ON (red) when charging. The indicator light will be automatically OFF When the battery is fully charged.
  • Page 7 "Reset" button: lf necessary, use ball-point pen or other appropriate small tools to press down the keys inside the small hole lo restar! the tester. Audio input pori: 3.5MM Audio input pori. 12V/2A charging interface Multimeter fuse: Il can be replaced afler having been fused. Digitai multimeter, Headset and extension interface Digitai multimeter, Measuring current (AC / DC) Digitai multimeter, Common interface...
  • Page 8: Simplified Eu Declaration Of Conformity

    8 hours SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, URMET S.p.A. declares that the radio equipment type: TESTER IP 3000/060 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.urmet.com...
  • Page 9: Battery Information

    BATTERY INFORMATION The device has 2 batteries inside which are recharged by receiving external power. Do not remove the batteries. Loading and unloading Important note: • Complete the initial charge before using the device. • An initial charge of approximately 8 hours is recommended to optimise battery performance.
  • Page 10 Guida rapida e manuale completo del dispositivo sono scaricabili puntando il seguente QR code. 3000/060 Guida rapida e manuale completo sono altresì disponibili per il DOWNLOAD dal sito URMET nella sezione LIBRETTI DI ISTRUZIONE. Quick guide and complete user manual of the product are available at the following QR code.
  • Page 11 DIRETTIVA 2012/19/UE DEL PARLAMENTO EUROPEO E DEL CONSIGLIO del 4 luglio 2012 sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE). Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente dagli altri rifiuti.
  • Page 12 DS3000-024A URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39. 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com Telef. +39. 011.24.00.000 (RIC.AUT.) e-mail: info@urmet.com +39. 011.24.00.300 - 323 MADE IN CHINA Prodotto in Cina su specifica URMET Made in China to URMET specification DS3000-024A...
