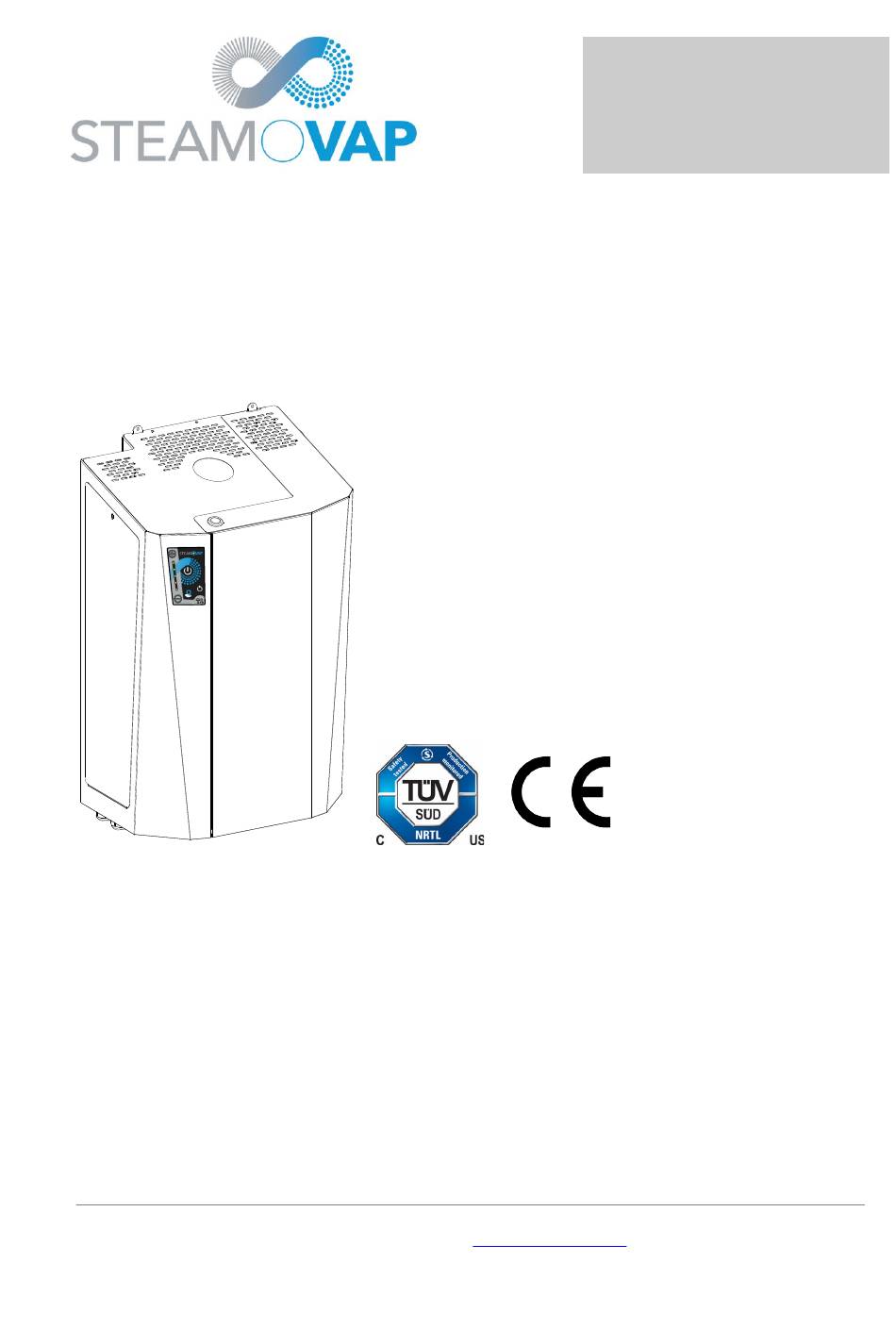

- Page 1 STEAMORES ELECTRIC STEAM HUMIDIFIER Installation and Operation Manual Please read and save this manual steamOvap technologies inc, 1490 Mazurette, Montreal, Qc, H4N 1H2, Canada Tel.: 1-844-357-4477 • www.steamOvap.com Rev.240901...
-
Page 2: Introduction
End of life disposition Ensure that RES electric steam humidifier is empty from water, if not proceed same way as for a standard drain for service. Disconnect RES electric steam humidifier from power supply, electrical control signal, water main supply, Steam line, and drain. -
Page 3: Ec Declaration Of Conformity
F O R E W O R D EC Declaration of conformity Manufacturer: steamOvap technologies inc. Address: 1490 Mazurette, Montreal, Qc, H4N 1H2, Canada Product description: Residential electric steam humidifier list of Models: RES230-23, RES230-29, RES230-37, RES230-42 The products described above are in conformance with the provisions of the following European directives:... -
Page 4: Table Of Contents
Introduction........................2 EC Declaration of conformity..................3 Table of content......................4 Safety warnings......................5 Before to proceed to Installation..................6 RES Overview......................7 Installation overview....................9 Step 1 - Positioning & Mounting................10 Step 2 - Water supply installation................12 Step 3 - Drain installation...................13 Step 4 - Steam distribution..................14 Step 5 - Power supply installation................17... -
Page 5: Safety Warnings
Risk of burnt, flooding or malfunction. Do not block steam outlet ! Risk of flooding. In order to avoid any risk of flooding steamOvap recommends a Hi limit humidity switch installed in the air duct downstream of the steam distribution ramp. -
Page 6: Before To Proceed To Installation
2. Verify that model of the humidifier matches the purchase order and that all accessories are included. 3. Any missing item should be reported as soon as possible to steamOvap or its representative and within 5 business days after receipt. -
Page 7: Res Overview
O V E R V I E W RES Overview Figure 1 – RES Overview RES product designation & name plate steamOvap technologies inc. Electric resistive steam humidifier RES230-23 MODEL YY-DDDXXX 2.3kW 230Vac POWER VOLTAGE 10.0A CURRENT NB OF PHASE... - Page 8 3.0kg/h RES230-29 2.9kW 12.8A 4.0kg/h RES230-37 3.7kW 16.0A 5.0kg/h RES230-42 4.2kW 18.0A 5.6kg/h Dimensions Steam Outlet 1-1/2in [DN40] Figure 3 – RES dimensions Dimensions Qty Steam Model Outlet + Ø weight RES230-23 to 42 30cm 45cm 25cm X1 DN40 10kg...
-
Page 9: Installation Overview
Drain line (by others) Figure 4 – installation overview with steam distribution in duct Installation steps : 1. Positioning & mounting of RES steam humidifier 2. Water supply installation 3. Drain installation 4. Steam line installation for duct humidification 5. Power supply installation... -
Page 10: Step 1 - Positioning & Mounting
CAUTION. Risk of malfunction due to vibration. Do Not mount RES electric steam humidifier directly on ventilation duct. CAUTION. Risk of flooding. Ensure that the local where RES steam humidifier will be installed is equipped with floor drain. In case of no floor drain is available; installation of a water leak detector is required in order to prevent any flooding in case of abnormal operation or service. - Page 11 5. Hung the RES steam humidifier onto the mounting bracket and install the 2 supplied screws holding the RES humidifier onto the mounting bracket. RES humidifier can be installed directly onto the air ventilation duct in case this duct is not vibrating or oscillating due to very high air velocity or unbalanced fan.
-
Page 12: Step 2 - Water Supply Installation
1. Install a manual; shut off valve on the water main line. 2. If RES humidifier is supplied with tap water it is recommended to install a 10µ sediment filter on the line. This filter will protect internal water fill valve from clogging. -
Page 13: Step 3 - Drain Installation
2. IMPORTANT: Risk of malfunction. A minimum slope angle of 5 degree of the drain hose or pipe and a minimum length of 20cm must be provided between the drain outlet of the RES humidifier and the open drain inlet. -
Page 14: Step 4 - Steam Distribution
I N S T A L L A T I O N Step 4 - Steam distribution Duct humidification RES steam humidifier is supplied with 1m of steam hose and steam ramp. Standard steam ramp mounting bracket is designed for installation on rectangular ventilation duct (with flat surface). - Page 15 Note: when using rigid steam pipe (stainless steel or copper) it is a good practice to install a small piece of steam hose to interconnect between steam ramp, rigid pipe and RES steam humidifier. Important: ensure a minimum downward slope of 2°...
- Page 16 In-space steam distribution – SB space blower For in-space humidification and depending on the configuration ordered, the RES steam humidifier is supplied with the in-space distributor equipped with a fan, 2m control cable and 1m of steam hose if the in- space distributor is remote from the unit.
-
Page 17: Step 5 - Power Supply Installation
The earth must be made by solid metal to metal connections. Ground wire should be same size as power wiring. Model Connection RES230-23 Connect RES steam humidifier to a standard 230Vac 1phase electrical outlet RES230-29 RES230-37 Follow below diagram RES230-42... -
Page 18: Step 6 - Control Installation
It is a good practice to install the following safety controls: An air proving switch (APS) (supplied with RES) in the same duct as the humidifier’s steam ramp so that it will prevent humidifier from producing steam in case there is no air flow. - Page 19 I N S T A L L A T I O N PUMP PT1000 Power Health Steam Alarm Service Modbus RS485 connection STEAMORES 1V1 PT1000-2 Signal from RH % sensor 24Vdc RH / AD RH % RH% signal EN-C sensor OR from external analog demand Optional 24 Vdc output 24Vdc...
-
Page 20: Verification Before Start-Up
Check mounting to verify that the RES humidifier is levelled and securely supported before filling with water. o In case of RES directly to the ventilation duct, confirm that there is no vibration or oscillation that would impair it operation. -
Page 21: Configuration & Operation
Configuration & Operation Configuration RES steam humidifier is set and configured at our factory. Control configuration can be changed in the field through the touch pad control, please refer to the control configuration section below. Further change of configuration can be done through a Modbus connection. - Page 22 Press on the ‘’setting’’ button on the touch pad controls, blue LED located beside this button will turn ON. Caution: Risk of malfunction, change of mode should not be done without checking which control signal is connected to the RES. Incompatible mode selection and signal wiring can lead to malfunction.
- Page 23 Setting 8, All DP On = 4h Please note that the drain frequency time is proportional to the RES humidifier steam output. If drain frequency is 2hours and humidifier output is 50% the drain of the cylinder will occur after 4hours...
- Page 24 RES state Description RES is disabled White (full ON) Stand by (On/Off button is Off) RES is ready to produce steam (waiting for Lime/green (full ON) Ready signal demand) Blue (Intensity as % demand) Steam ON RES is heating element.
-
Page 25: Service
Disconnect power supply before to service. General guidelines for service When service is due, RES will stop producing steam and will call for service : status LED is orange 1. Order a drain for service by touching the ‘’drain for service ‘’ button, 2. - Page 26 ◦ Re-install the safety pin on latch to prevent from any unintentional cylinder opening. ◦ Reconnect Fill & Drain connector 13. Re-connect RES humidifier to power supply it will re-start automatically. Resetting service frequency counter Important: Resetting the service frequency counter to zero is not automatic.
-
Page 27: Warranty
90 days, whichever is longer. No liability whatsoever shall be attached to steamOvap until said products have been paid for in full and then said liability shall be limited to the original purchase price for the product. Any further warranty must be in writing, signed by an officer of steamOvap. - Page 28 2024 steamOvap technologies inc. 1490 Mazurette Montreal, Qc, H4N 1H2 Canada Tel.: +1-844-357-4477 info@steamOvap.com www.steamOvap.com Information contained in this manual is subject to change without notice. To obtain the latest technical information visit our website at www.steamOvap.com...
