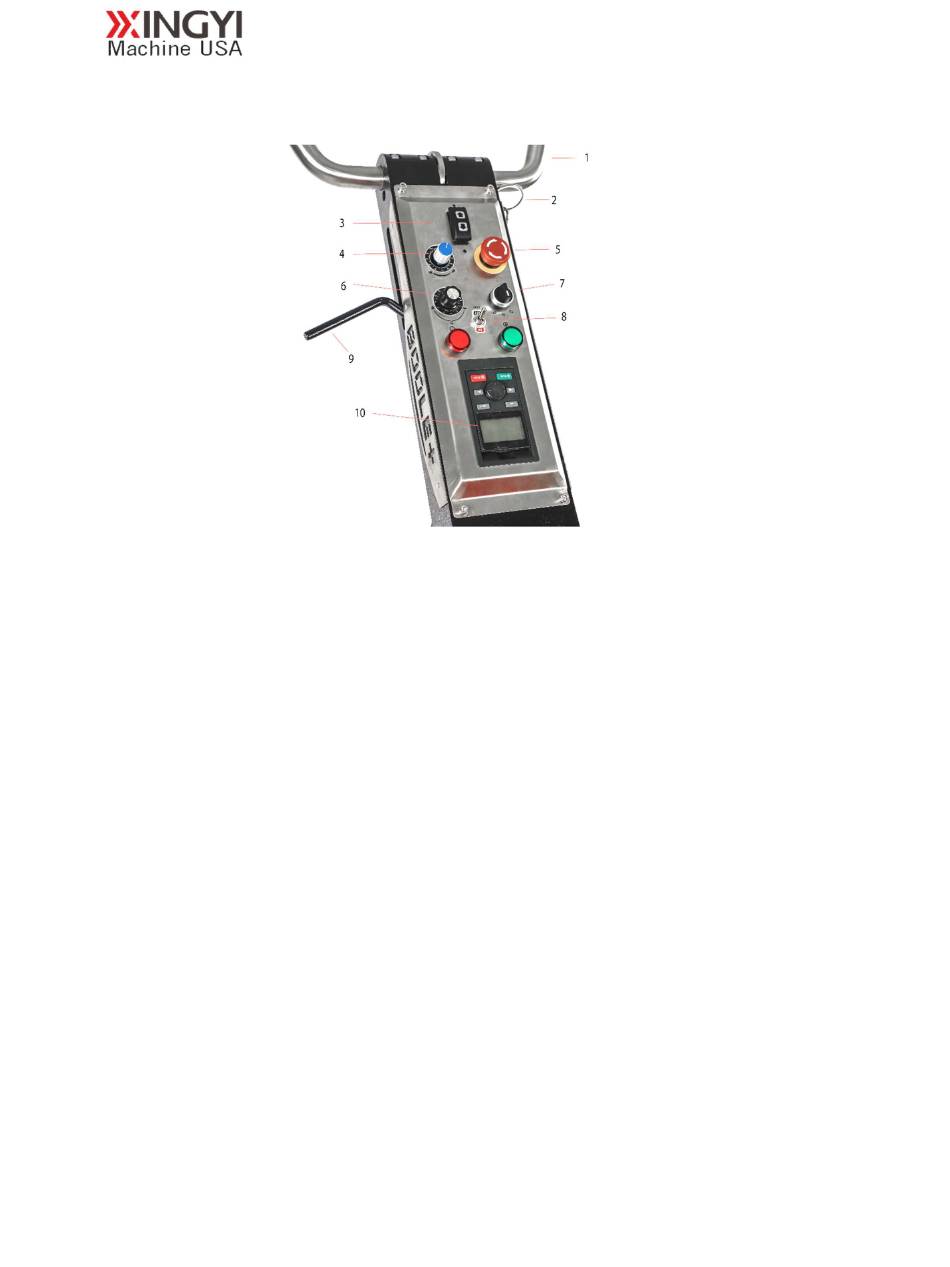

4.3 Main Handle

1. handlebar
2. handlebar adjusting pin
3. rocker switch, forward/reverse/neutral
4. potentiometer for motor speed
5. emergency stop switch

4.4 Self-Propelled Operation

This machine is equipped with a self-propelled drive system that allows the operator to run
the machine without having to manually push the machine during operation. The direction
switch, forward, reverse, and neutral allows the operator to control the direction of the
machine. The travel speed potentiometer controls the travel speed. The operator still needs
to steer the machine left and right or during turns. Above the axel there is a clutch switch
that can engage or disengage the self-propelled system.
To disengage the clutch simply pull the knob out of the slot and turn 90 degrees. The wheels
can move, and the machine is able to operate manually. To engage the clutch for self-
propelled operation, turn the knob 90 degrees and return to the slot. See the images below.
6. potentiometer for travel speed
7. motor forward / reverse switch
8. light switch
9. handle adjustment lever
10. display panel
