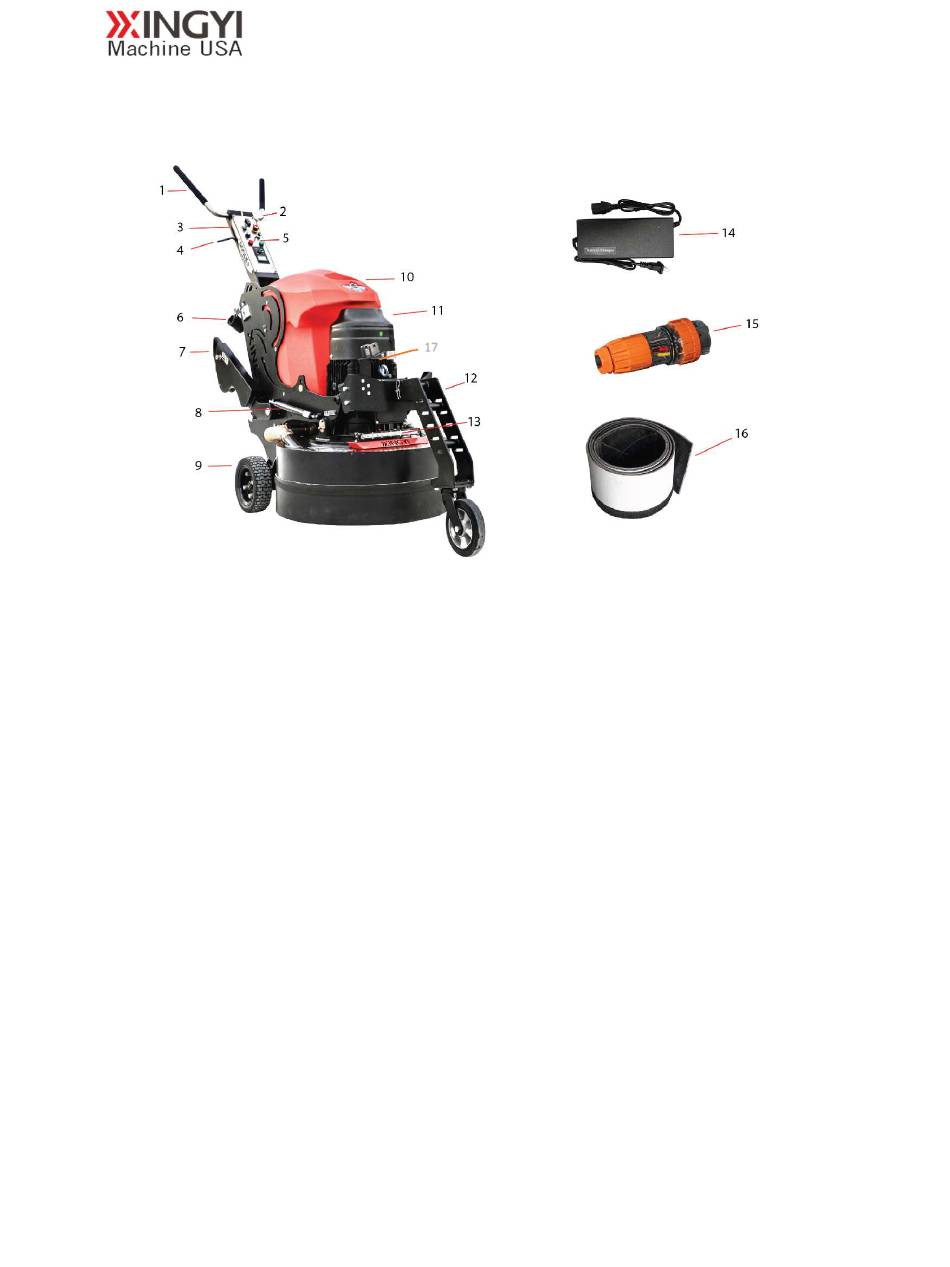

4.2 General Diagram
1. Handlebar
2. Handlebar adjusting pin
3. Main handle
4. Main handle adjustment lever
5. Handle panel
6. Dust hose connector
7. Weight kit
8. Air spring for weight
9. Rubber drive wheel
10. Water tank
17
11. Motor
12. Transport wheel kit
13. LED light bar
14. Battery charger
15. Power connector (female)
16. Dust shroud
17. Support for transport wheel
5
