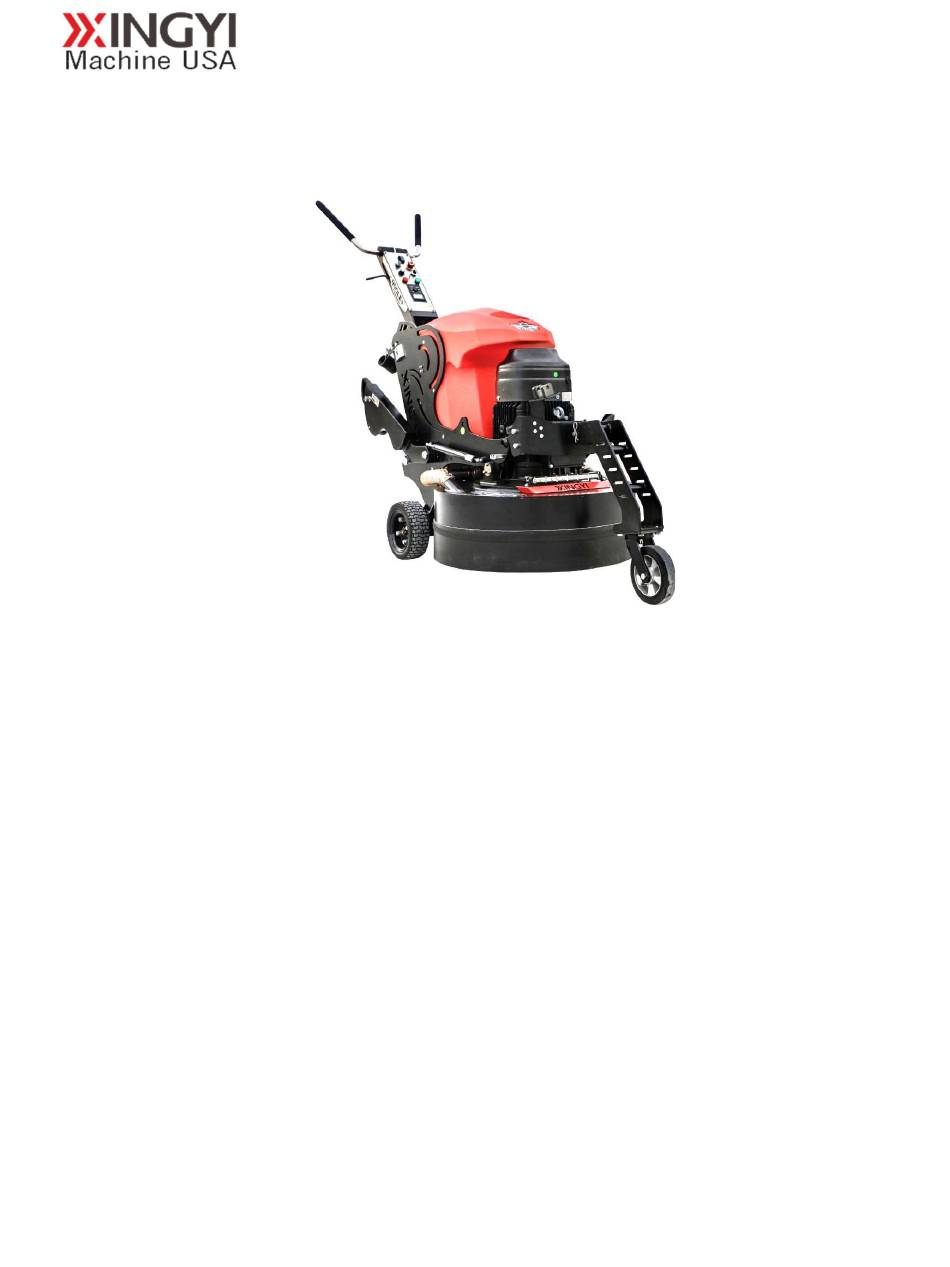

- Page 1 Xingyi Machine USA LLC. 103 Cedar Ave. Marysville, WA 98270 xingyimachineusa.com (425)231-6773 Manual for 800-LE Plus Grinding Machine -------- Version 1.1...
-
Page 2: Table Of Contents
Table of Contents 1. Instruction ..............................1 1.1 Summary ............................. 1 1.2 Liability ............................1 1.3 Warranty ............................1 2. Safety ................................1 2.1 Operation safety ........................... 1 2.2 Electrical safety ..........................2 3. General information ........................... 3 3.1 Unpacking ............................ 3 3.2 Transport ............................ - Page 3 5. Transportation ............................11 5.1 Manual transport with transport wheel ..................11 5.2 Battery transport......................... 11 5.3 Lifting the machine ........................11 6. Operation ..............................12 6.1 Handle Setting ..........................11 6.2 Weight Setting ..........................12 6.3 Access to Grinding Tools ......................13 6.4 Fitting Grinding Tools ........................
-
Page 4: Instruction
1. Introduction 1.1 Summary XINGYI Machine are used for processing the floor surface. The scope of use of the machine depends on the choice of tools. In addition to the use and general functions, this manual describes information on the use, repair, and maintenance of the grinder. Contact your local dealer for further information. -
Page 5: Electrical Safety
XINGYI may only be used for commercial purposes. Anyone using the machine shall know about: its functions location of emergency stops the safety rules for the work The operator shall ensure that: No unauthorized person is stationed within the work area when the machine is started The workplace shall: ... -
Page 6: General Information
3. General Information 3.1 Unpacking Check the packaging and equipment carefully on delivery for any possible transport damage. If there is any sign of damage, contact the dealer and report the damage by photos, report form or any other necessary evidence in the first place. Report packaging damage to the carrier as well. -
Page 7: Storage
The 800 LE Plus is used to grind (rough grind, fine grind and polish) concrete, natural stone and terrazzo floors or other materials specified in this manual or recommend by XINGYI. This machine is expected to be used in commercial applications such as hotels, schools, hospitals, factories, offices and warehouses and retail environments. -
Page 8: General Diagram
4.2 General Diagram 1. Handlebar 11. Motor 2. Handlebar adjusting pin 12. Transport wheel kit 3. Main handle 13. LED light bar 4. Main handle adjustment lever 14. Battery charger 5. Handle panel 15. Power connector (female) 6. Dust hose connector 16. -
Page 9: Main Handle
4.3 Main Handle 1. handlebar 6. potentiometer for travel speed 2. handlebar adjusting pin 7. motor forward / reverse switch 3. rocker switch, forward/reverse/neutral 8. light switch 4. potentiometer for motor speed 9. handle adjustment lever 5. emergency stop switch 10. -
Page 10: Display Panel
4.5 Display Panel The display screen provides the operator with information about the machine, including voltage, rpm, amps, error code if any, etc. 4.6 Handlebar Adjustment The handlebar adjusting pin can be positioned at different positions to accommodate the specific user. Hold the handlebar with one hand, pull out the adjusting pin with the other hand, then release the adjusting bolt when it is rotated to proper position. -
Page 11: Handle Adjustment
4.7 Handle Adjustment Use the handle position lever to adjust the position of the handle. Hold the handle tightly with one hand to support the handle, pull the lever lock back to release the handle, rotate the handle to a position that suits you best and release the lever to lock. Be sure that the handle has locked into a notch. -
Page 12: Battery Charging
1. Power connector 5. Battery charging port 2. Fault light 6. Key switch 3. Charging indicator 7. Inverter box lock 4. Heat dissipation vent 8. Battery level indicator 4.9 Battery Charging When the battery indicator shows less than 20% the battery charger should be plugged in. Never try to transport the machine if the battery level is below 20%. -
Page 13: Additional Weight Kit
4.14 LED Light Bar 800-LE PLUS is equipped with each LED light bar in the front and in the tail. The switch... -
Page 14: Transportation
for the lights is located on the handle panel. Simply flip the switch to the on position to turn on the LED light bars. The LED light bars will illuminate the floor in front of and behind the grinder where the operator stands. This feature allows the operator to inspect the condition of the floor while the machine is working. -
Page 15: Operation
6. Operation The following section describes how to change tools and how to operate the machine in manual or self-propelled mode. The machine may be operated either way depending on the job site requirements and the operator’s skill level. Only experienced operators should use the self-propelled mode to run the machine. -
Page 16: Access To Grinding Tools
6.3 Access to Grinding Tools WARNING Risk of crushing. Risk for personal injury and mechanical damage. Disconnect the power prior to cleaning, maintenance, change of tools and repair. Raise the handle to the high position in accordance with the Handle Settings page 8. Lower the weights back and place a foot on one of the weights. -
Page 17: Manual Operation
6.5 Manual Operation Place the machine where you intend to start grinding operations. Remove the transport wheel or place it in the upright position so the heads can touch the ground. Install the tooling on the grinding heads as needed for the operation. Connect the vacuum hose using the quick connector, (unless wet grinding. -
Page 18: Machine Maintenance
needs to be steered manually by the operator during grinding operation. During a turn it is useful to flip the rocker switch into the reverse position to help with the turn. Return the switch to the forward position as complete the turn. Turn on the LED light if needed. To stop the machine, press down the emergency stop switch. -
Page 19: Troubleshooting
disconnect the power from the machine and wait for the machine to cool down, typically 10- 20 minutes, then reconnect the power and restart the machine. 8. Troubleshooting Problem Possible Cause Solution Emergency stop is engaged Reset the stop switch The Machine won’t run The motor is jammed Remove the debris... -
Page 20: Technical Data
9. Technical Data 800-LE Plus Motor power 15KW / 20HP Rated voltage 3P 240V 3P 480V Rated AMPS 50 A Input hertz 50HZ / 60HZ Inverter power 15KW / 20HP Working width 800mm / 31 in Grinding disc size 256mm / 10in... -
Page 21: Dimensions
10. Dimensions...
