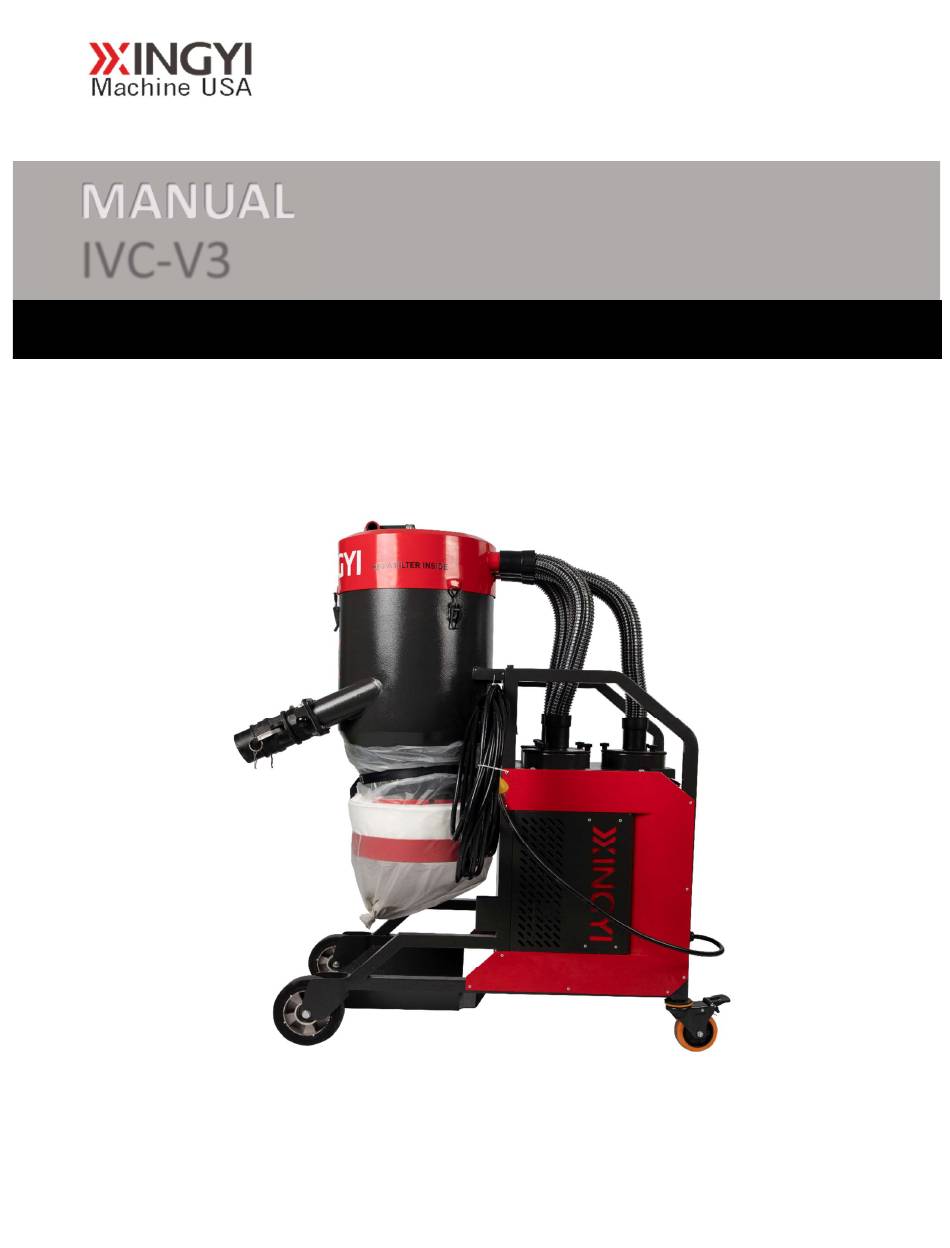

- Page 1 MANUAL IVC-V3 WWW.XINGYIMACHINEUSA.COM V 1.1...
-
Page 2: Table Of Contents
IVC-V3 Table of Contents 1. Instruction ..............................1 1.1 Summary ............................. 1 1.2 Liability ............................1 1.3 Warranty ............................1 1.4 Safety ............................1 1.5 Machine name plate ........................2 2. Machine description ..........................3 2.1 General information ........................3 2.2 Standard delivery .......................... - Page 3 IVC-V3 10. Dimensions ............................. 11 WWW.XINGYIMACHINEUSA.COM V 1.1...
-
Page 4: Instruction
We make every effort to make this manual as complete and accurate as possible, and we are not responsible for any errors or loss of information. XINGYI reserves the right to change the instructions in this manual without prior notice. -
Page 5: Machine Name Plate
IVC-V3 Machines from XINGYI may only be used in the way recommended by XINGYI. Machines from XINGYI may only be used for commercial purposes. Anyone using the machine shall know about: its functions location of emergency stops the safety rules for the work General precautions: ... -
Page 6: Machine Description
IVC-V3 2. Machine Description 2.1 General information The machine is a dust collector for industrial and building use intended for the dry vacuuming of dust particles, e.g. concrete, wood, stone etc. It is equipped with a two-stage filter system, a coarse filter followed by three fine filters, as well as a filter purse cleaning system that increases the service life and maintains the performance of the dust collector. -
Page 7: Control Cabinet
IVC-V3 9. 2” hose 12. Rear wheel 10. Fine filter 13. Front caster, lockable 11. Fine filter & electric cabinet 2.4 Control cabinet 1. on-off switch: turn on or off each motor. 2. breaker: Once the machine is overloaded and shut off, unplug it and press the breaker, and plug the machine. -
Page 8: Storage
4. Operation 4.1 Hose connection XINGYI provides a 3 to 2” quick connector for quick, easy and safe connection of the dust hose between the grinding machine and dust collector or other accessories that are to be used for dust collection. -
Page 9: Replacing The Dust Bag
The dust extractor is equipped with a bag system that makes it possible to minimize dust exposure when changing dust bags. This bag system can be ordered. Please contact your XINGYI retailer. Place the bags in the holder and install on the container. Pull up the inner part of the bag and tighten with the strap. -
Page 10: Maintenance
IVC-V3 5. Maintenance We recommend regular inspection of the dust collector. 5.1 Cleaning the dust collector Vacuum the dust collector. Perform filter cleaning and empty the machine of dust. Then clean the dust collector after use with a damp sponge or cloth. -
Page 11: Replace Coarse Filter
IVC-V3 Warning! The dust that is sucked up may be harmful if inhaled. Follow local regulations and use breathing protection. 6.1 Replace coarse filter To check the coarse filter, start by disconnecting the hose to the coarse filter. Remove the lock ring, pull the whole cone over to reduce contact with dust particles. -
Page 12: Motor Protection
IVC-V3 7. Motor Protection Three independent motors are equipped below each fine filter in the electric cabinet. When the motor draws too much current or if the motor protection gets hot. Check whether the suction system is blocked (negative pressure is displayed on the screen). -
Page 13: Technical Data
IVC-V3 9. Technical Data IVC-V3 3.3 KW /4.5 HP Power Rated Voltage （ V ） 220V 110V Rated current （ Amp ） 50HZ/60HZ Input frequency 22 Kpa/220 Mbar The maximum suction 2” / 50 mm Hose Recommended minimum cable 2.8 m² >99.5%@0.5μm, HEPA H12... - Page 14 IVC-V3 10. Dimensions WWW.XINGYIMACHINEUSA.COM V 1.1...
