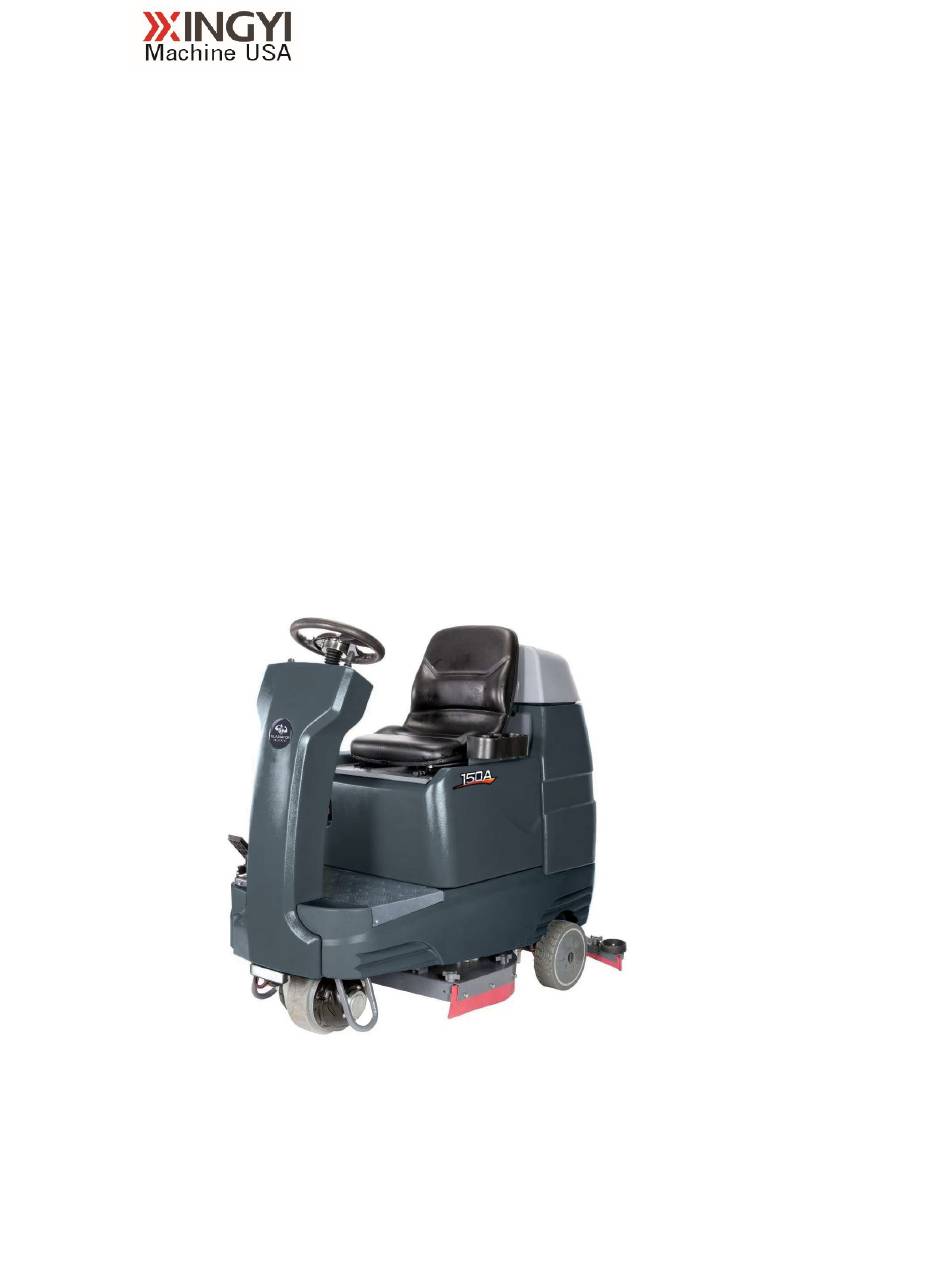

- Page 1 103 C 103 Cedar AVE. Marysville WA 98270 (425)231-6773 Floor Scrubber Machine 150A User manual...
- Page 2 This manual provides necessary machine operation and maintenance instructions. Please read and understand this manual carefully before operating or using this machine. When ordering replacement parts, refer to the spare parts manual that came with the machine. Before selecting parts or accessories, please confirm your machine model and serial number. You can order parts and accessories from any authorized service center or dealer by telephone or mail.
-
Page 3: Table Of Contents
Contents Points for Attention·································································· ··4 Machine Operation Instructions·····················································6 Receiving Machine/Unpacking the Machine········································7 Install the Battery········································································8 Machine Cleaning Method······························································9 Brush and Pad Information·····························································9 Machine Installation······················ ···············································9 Install brush/cleaning pad······························································10 Machine Operation·······································································10 Check before operation··································································10 Operate the machine·····································································11 During operation of the machine······················································11 Battery meter··············································································12 Water tank drainage·····································································12 Battery charging···········································································12... -
Page 4: Points For Attention
Points for Attention This machine is suitable for industrial and commercial use, specifically used for cleaning indoor hard floors, and cannot be used for other purposes. Please always use the recommended cleaning pads and brushes, as well as the commercial floor cleaner suitable for this machine. All operators must read, understand, and observe the following safety precautions. - Page 5 For safety reasons: 1. Do not operate the machine: － Contact with flammable liquid or close to flammable gas, otherwise it may cause explosion or flash fire. － Unless trained and authorized to operate the machine. － Unless you have read and understood the operation manual. －...
- Page 6 6. When handling the machine: － Please turn off the machine. － Do not handle the machine when the battery is installed. － Please handle the machine with the help of others. － When loading and unloading machines from trucks or trailers, please use the recommended loading dock.
-
Page 7: Receiving Machine/Unpacking The Machine
Warning light Dirt suction pipe Dirty water drain pipe Pure water drain pipe Main wheel Receiving machine/Unpack the machine 1. Please carefully check whether there is any damage on the packing box of the machine. If there is any damage, immediately respond to the freight forwarder. 2. -
Page 8: Install The Battery
Note: If the loading dock is not used, do not push the machine directly to avoid damage to the machine. Note: To avoid damage to the machine, please unload the machine from the pallet before installing the battery. Install the battery Warning: Fire or explosion hazard. -
Page 9: Machine Cleaning Method
Machine cleaning method Cleaning method: Manually control the water valve to adjust the amount of cleaning solution (water and detergent) flowing to the ground. The brush cleans the floor with a solution of detergent and water. While the machine is moving forward, suck the sewage on the floor into the sewage tank with a suction grill. Brush and cleaning pad information To ensure the best performance, please use the correct brush type for cleaning. -
Page 10: Machine Operation
1. Park the machine on the level ground and take out the key. 2. Step on the brush head lifting pedal to lift the brush head off the ground. 3. Place the cleaning pad on the needle holder first, and then install the driving disc. Fasten the central lock to fix the cleaning pad. -
Page 11: During Operation Of The Machine
Note: It is recommended to use a cleaning speed of 45-60 meters per minute. During operation of the machine Warning: Fire or explosion hazard. Do not pick up flammable materials or active metals. 1. Each cleaning path overlaps 5 cm. 2. -
Page 12: Water Tank Drainage
prolong the battery life, do not let the indicator light go out below the following power consumption. Note: In order to prolong the life of the battery, please charge the battery after the total service hours of the machine exceed 30 minutes Water tank drainage Drain and clean the sewage tank after each use. -
Page 13: Machine Maintenance
1. Move the machine to a well-ventilated place for charging. Warning: Fire or explosion hazard. The battery releases hydrogen. Keep away from sparks or open fire sources. Keep the battery compartment open when charging. 2. Park the machine on a level surface and turn the key to the closed position. 3. -
Page 14: Monthly Maintenance
5. Wipe the absorbent strip. Place the absorbent assembly in the raised position to prevent the rubber strip from being damaged. 6. Check the wear condition of the edge of the strip scraper. In case of wear and tear, switch both ends of the strip. -
Page 15: Handling Machine
Handling machine When transporting the machine by truck or trailer, be sure to follow the following binding procedures: 1. Raise the brush head to the transportation position. 2. Use the recommended loading dock to load the machine. 3. Close the front of the machine to the front of the truck or trailer. When the machine is in place, lower the brush head and turn the key to the closed position. - Page 16 Troubleshooting Problem Reason Solution The battery is out of power Battery charging Battery failure Replace the battery The machine is inoperable Loose connection of battery Tighten the battery wiring The main fuse is blown Replace fuse The brush head rises off the ground Lower the brush head Battery meter lock is not activated Battery charging...
- Page 17 Technical parameter Item name Unit 150A Brush width Cleaning efficiency m2/h 5500 S uction width 1200 Continuous operation time grade ability ° ＜ 25° pure water box Sewage box Brush motor 500*2 Noise level Battery Machine size 1600*1100*1380 Machine weight...
