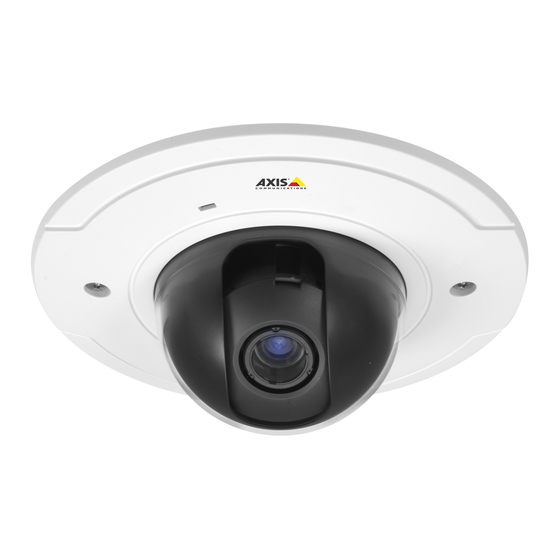

Axis P3346 User Manual
P33 network camera series
Hide thumbs
Also See for P3346:
- Installation manual (104 pages) ,
- User manual (64 pages) ,
- Installation manual (96 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Installation Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axis P3346
Summary of Contents for Axis P3346
- Page 1 USER’S MANUAL AXIS P33 Network Camera Series AXIS P3343 Network Camera AXIS P3343-V Network Camera AXIS P3343-VE Network Camera AXIS P3344 Network Camera AXIS P3344-V Network Camera AXIS P3344-VE Network Camera AXIS P3346 Network Camera AXIS P3346-V Network Camera AXIS P3346-VE Network Camera...
- Page 2 Some knowledge of UNIX or Linux-based systems may also be beneficial, for developing shell scripts and applications. Later versions of this document will be posted to the Axis Website, as required. See also the product’s online help, available via the Web-based interface.
-
Page 3: Table Of Contents
Alternative methods of accessing the video stream ........ -
Page 4: Axis P33 Series
The built-in Power over Ethernet support enables power to the camera to be delivered via the network, eliminating the need for a power outlet and reducing installation costs. In addition, the consolidation of power gives higher reliability if connected to a central Uninterruptible Power Supply (UPS). -
Page 5: Key Features
• These cameras offer superior image quality with progressive scan, providing crisp and clear images of both illuminated and dark areas. AXIS M3346 offers superb image quality in 3MP resolution and HDTV streaming in 1080p at 30 fps. • Easy installation These network cameras are easy to install. -
Page 6: Hardware Overview
Green Steady green for normal operation. Note: The Status LED can be configured to be unlit during normal operation, or to flash only when the camera is accessed. To configure, go to Setup > System Options > LED settings. See the online help files for more information. -
Page 7: Unit Connectors
Audio in - 3.5mm input for a mono microphone, or a line-in mono signal (left channel is used from a stereo signal). Audio out - Audio output (line level) that can be connected to a public address (PA) system or an active speaker with a built-in amplifier. -
Page 8: Accessing The Camera
(the Bonjour tab is only available in Safari). 3. If this is the first time you are accessing the camera, see Setting the root password, on page 9. Otherwise enter your user name and password, set by the administrator. -
Page 9: Access From The Internet
Setting the root password To gain access to the product, you must set the password for the default administrator user - ‘root’. This is done in the Configure Root Password dialog, which appears when the network camera is accessed for the first time. To prevent network eavesdropping the root password can be set via an encrypted HTTPS connection, which requires an HTTPS certificate. -
Page 10: The Live View Page
General controls View size – Click to scale the image down to 800 pixels wide or to full scale. Only available in MJPEG. The Stream Profile drop-down list allows you to select a customized or pre-programmed stream pro- file in the Live View page. - Page 11 Zoom bar – Click a position directly on the zoom bar to zoom all the way to the new position in one move-...
-
Page 12: Video Streams
The Live View page in the network camera provides access to H.264, and Motion JPEG video streams, and to the list of available stream profiles. Other applications and clients can also access these video streams/images directly, without going via the Live View page. -
Page 13: Alternative Methods Of Accessing The Video Stream
Still JPEG images in a browser. Enter the path - http://<ip>/axis-cgi/jpg/image.cgi • Windows Media Player. AMC and the H.264 viewing client need to be installed. The paths that can be used are listed below in the order of preference: •... -
Page 14: Accessing Audio Streams
AXIS P33 Series - Video Streams Accessing audio streams The Live View page provides access to audio through AXIS Media Control; in addition audio can be accessed in the following ways: VAPIX® Audio can be accessed through the VAPIX® Application Programming Interface (API). For more information visit http://www.axis.com/techsup... -
Page 15: Video & Audio
To avoid bandwidth problems on the network, the frame rate allowed to each viewer can be limited. Select the Unlimited radio button option to allow the highest available frame rate; or select the Limited to radio button option and enter a value (1-30) fps in the field. - Page 16 Bit Rate Control The bit rate can be set as Variable bit rate (VBR) or Constant bit rate (CBR). VBR adjusts the bit rate according to image complexity, and thus uses a lot of bandwidth for a lot of activity in the image, and less when the monitored area is quiet.
-
Page 17: Stream Profiles
Check the box Enable View Areas to enable the camera’s View areas and digital PTZ functionality. Image Appearance Color level - Select an appropriate level by entering a value in the range 0-100. Lower values mean less color saturation, while the value 100 gives maximum color saturation. - Page 18 If set to Auto, the camera will automatically switch between IR cut filter On and Off, according to the current lighting conditions. Note that if this IR cut filter is set to Off, the image is in black and white.
-
Page 19: View Areas
The number scale represents the degree to which the iris is open. When the scale is set at 0 the iris opens to the extent allowed. At the setting 100 the iris is closed as much as allowed. The default setting is 50. The actual F-value is shown under the Iris adjustment bar. -
Page 20: Overlay Image
AXIS P33 Series - Video & Audio View area Aspect ratio - is a ratio of width to height in images, 4:3 is a common in television screens and computer monitors while HDTV uses 16:9. Select the aspect ratio for the view area. -
Page 21: Focus & Zoom
An auto focus function is available under the Basic tab. At the bottom of the preview is a pixel counter, which is useful where the image needs to be a certain size; face recognition is a good example. Enable the tool to ensure that an area in the image has the required number of pixels, such as a doorway where people's faces should be recognizable. - Page 22 Open iris - Use this button to open the iris before focusing. Keep enabled all other times. Focus position bar - Click on the bar to focus on a desired location. The buttons < and > move the focus position one step in either direction.
-
Page 23: Audio Clips
Alarm level - Event types in the network camera can be set to use this level as a trigger. Each individual event type can be configured to trigger if the sound level rises above or falls below the set value. The alarm level can be set in the range 0-100%, where 0% is the most sensitive and 100% the least sensitive. -
Page 24: Live View Config
AXIS P33 Series - Live View Config Live View Config... -
Page 25: Live View Layout
Play audio clip enabled - Enabling the display of the Audio clip drop-down box and Play button in the Live View page allows users to play a pre-recorded audio clip from the camera. Go to Video & Audio > Audio Clips to work with the audio clips. - Page 26 To enable this button, select the type of control to use for the port. This can be set as Pulse, where clicking the single button activates the port for the defined period, or as Active/Inactive, which displays two buttons, one for each action. The selected type automatically displays the correct button(s) on the Live View page.
-
Page 27: Ptz
3. If required, check the Use current position as Home box option (AXIS P3343/AXIS P3344). 4. Click Add. This position is then saved as a preset position in the camera. The position can be assumed at any time, by selecting it from the drop-down list of available positions. Presets can be selected in from the Live View window, from Events, from Guard Tour, and in Sequence mode. -
Page 28: Applications
Log - To generate a log of the application happenings, select an application and click Log. This log is helpful when requesting support from the application’s vendor. Note: It is recommended that you do not run more than one application at a time. Also do not run an application when the motion detection feature is active. -
Page 29: Events
Many event types use an Event Server, to receive uploaded images. An event that is triggered by a signal, such as a door switch, motion detection, or system event, is called a triggered event. -
Page 30: Triggered Event
Note: Up to 10 event types can be configured in the camera, and up to three of these can be configured to upload images. File names can be formatted according to specific requirements. See File Naming & Date/Time Formats in the online... -
Page 31: Camera Tampering
This can help prevent false alarms for known conditions that affect the image. If the camera lens is sprayed or covered so that the camera live view becomes dark, it will not be possible to distinguish this situation from other situations where the same effect is seen, such as when lighting conditions change. -
Page 32: Motion Detection
AXIS P33 Series - Events Motion Detection Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. It is possible to configure a total of 10 Include and/or Exclude windows for motion detection. -
Page 33: Port Status
3. Select the Configure Included Windows or the Configure Excluded Windows option to define an Include or Exclude window, and enter a descriptive name in the field below. 4. Adjust the size (drag the bottom right-hand corner) and position (click on the text at the top and drag to the desired position) of the active window. -
Page 34: Recordings
The Remove button is used to delete unlocked recordings. Filter - Use the filter to narrow down the list according to certain criteria such as a particular time frame. Note that certain filters, may take a long time to complete. -
Page 35: Continuous Recording
Note: All previous continuous recording data will be removed. From - To play or download the recording from a point in time, enter the year, month, day and the time in hours and minutes. Duration - Enter the amount of the recording to play or download in hours, minutes and seconds. -
Page 36: System Options
Allow/Deny the following IP addresses. The administrator can add up to 256 IP address entries to the list (a single entry can contain multiple IP addresses). The users from these IP addresses need to be specified in the user list with the appropriate access rights. -
Page 37: Date & Time
Client Certificate/Client private key - The client certificate and private key are used to authenticate the network device. They can be uploaded as separate files or in one combined file (e.g. a PFX file or a PEM file). Use the Client private key field if uploading one combined file. - Page 38 Specify the formats for the date and time (12h or 24h) displayed in the video streams. Use the predefined formats or use your own custom date and time formats. See Advanced File Naming & Date/Time Formats in the online help...
-
Page 39: Network
IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address. - Page 40 Always - The camera will constantly attempt to connect to the AVHS service over the Internet; once registered the camera will stay connected to the service. This option can be used when the camera is already installed and it is not convenient to use the one-click installation.
- Page 41 The RTSP protocol allows a connecting client to start an H.264 stream. Check the box to enable the server and enter the RTSP port number to use. The default setting is 554. Note that H.264 video streams will not be available if this service is not enabled.
- Page 42 (Differentiated Services Codepoint) value. This value is used to mark the traffic’s IP header. When the marked traffic reaches a network router or switch, the DSCP value in the IP header tells the router or switch the type of treatment to apply to this type of traffic, for example, how much bandwidth to reserve for it.
- Page 43 RTP/ H.264 - These settings are the port range, IP address, port number (video), and Time-To-Live value to use for the video stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams. For...
-
Page 44: Storage - Disk Management
Once a formatted SD card has been inserted in the SD memory card slot, it is automatically mounted and information such as the available space and the size of the storage device is shown. The disk is full when there is less than 1000KB of space left on the memory card. -
Page 45: Led
Focus and Zoom will also be reset to default positions and need to be reconfigured. Go to Video & Audio > Focus & Zoom. -
Page 46: Support
See Configuration - From the drop-down lists, select the level of information to be added to the System Log and Access Log files and the permitted size of the log files., on page 46 for more information. -
Page 47: About
For more information, please visit the Developer pages at www.axis.com/developer File Upload - To use your own files as custom settings, upload the files first to the Network Camera. Browse to select the file. Select the User level for the uploaded file. When the file is displayed correctly in the text field, click the Upload button. -
Page 48: Troubleshooting
-l 408 -t <IP address of camera> 2. If the unit does not reply within a few seconds, restart it and wait for a reply. Press CTRL+C to stop Ping. 3. Open a browser and type in the camera’s IP address. In the page that appears, use the Browse button to select the upgrade file to use, for example, axisp3343.bin. -
Page 49: Axis Support
Axis Support If you contact Axis support, please help us to help you solve your problems by providing the server report, the log file and a detailed description of the problem. Server Report - go to Setup > System Options > Support > Support Overview. The server report contains important information about the server and its software, as well as a list of the current parameters. - Page 50 Multicast H.264 only accessible by local Check if your router supports multicasting, or if the router settings between the cli- clients ent and the server need to be configured. The TTL (Time To Live) value may need to be increased.
- Page 51 Lower the sensitivity setting to avoid problems with luminance. For further assistance, please contact your reseller or see the support pages on the Axis website at www.axis.com/techsup...
-
Page 52: Technical Specifications For Axis P3343 Series
Lens • Varifocal, DC-iris, remote focus and zoom • 6mm: 2.5 – 6 mm, F1.2, horizontal angle of view: 34° – 72°, vertical angle of view: 24° – 54°, diagonal angle of view: 40° – 88° • 12mm: 3.3 – 12 mm, F1.4, angle of view: 17° – 54°, vertical angle of view: 12°... - Page 53 Interface stream, the ONVIF specification available at www.onvif.org • Quality of Service (QoS) layer 3, DiffServ Model • Embedded Linux operating system • Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection *Available at www.axis.com Intelligent Video Video motion detection, active tampering alarm, audio detection Alarm triggers •...
- Page 54 • AXIS P3343-VE: IEC 60529 IP66, NEMA 250 Type 4X Dimensions (HxWxD) • AXIS P3343-VE/P3344-VE: 97 mm x 148 mm x 148 mm (3.8” x 5.8” x 5.8”) • AXIS P3343-V: 97 x 148 x 148 mm (3.8” x 5.8” x 5.8”) •...
-
Page 55: Technical Specifications For Axis P3344 Series
Lens • Varifocal, DC-iris, remote focus and zoom • 6mm: 2.5 – 6 mm, F1.4, horizontal angle of view: 40° – 87°, vertical angle of view: 24° – 54°, diagonal angle of view: 46° – 102° • 12mm: 3.3 – 12 mm, F1.6, horizontal angle of view: 20° – 70°, vertical angle of view: 12°... - Page 56 Interface stream, the ONVIF specification available at www.onvif.org • Quality of Service (QoS) layer 3, DiffServ Model • Embedded Linux operating system • Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection *Available at www.axis.com Intelligent Video Video motion detection, active tampering alarm, audio detection Alarm triggers •...
- Page 57 • 3.5 mm jack for Mic in (max 80 mVpp) or Line mono input (max 6.4 Vpp) • 3.5 mm jack for Line mono output (max 1.3 Vpp) to active speaker Operating conditions • AXIS P3344-VE and AXIS P3344-V: 0 – 50 ºC (32 – 122 ºF), Humidity 20 - 80% RH (non-condensing) •...
-
Page 58: Technical Specifications For Axis P3346 Series
Audio Audio streaming Two-way Audio compression • AAC LC 8 kHz 8 to 32 kbit/s, 16 kHz 12 to 64 kbit/s • G.711 PCM 8 kHz 64 kbit/s • G.726 ADPCM 8 kHz 24 to 32 kbit/s Audio input/output • External microphone input or line input, line output... - Page 59 IPv4/v6, HTTP, HTTPS, SSL/TLS*, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS. *This product includes software developed by the Open SSL Project for use in the Open SSL Tool kit (www.openssl.org) System Application •...
- Page 60 Local storage SD/SDHC memory card slot (card not included) Operating conditions • AXIS P3346/-V: 0 °C to 50 °C (32 °F to 122 °F), humidity 20 - 85% RH (non-condensing) • AXIS P3346-VE: -40 °C to 55 °C (-40 °F to 131 °F) Approvals •...
- Page 61 Application Development Partners. For more software information, see www.axis.com/products/video/software/ • AXIS Camera Management • AXIS Mobile Monitor • AXIS P3346: IP51-rated drop-ceiling mount kit • AXIS P3346/-V: Pendant kit, Mounting bracket • AXIS P3346-VE: Pendant kit including weather shield, Audio I/O cable with pre-mounted gasket...
-
Page 62: General Performance Considerations
When setting up your system, it is important to consider how various settings and situations will affect performance. Some factors affect the amount of bandwidth (the bit rate) required, others can affect the frame rate, and some affect both. If the load on the CPU reaches its maximum, this will also affect the frame rate. -
Page 63: Glossary Of Terms
CGI program to process the form data once it is submitted. Angle - The field of view, relative to a standard lens in a 35mm still camera, expressed in degrees, e.g. 30°. For practical CIF (Common Intermediate Format) - CIF refers to the analog... - Page 64 10 Mbps and 100 Mbps respectively. GOV (Group Of VOPs) - A group of VOPs is the basic unit of an H.264 video stream. The GOV contains different types and ETRAX (Ethernet Token Ring AXIS) - Axis' own numbers of VOPs (I-VOPs, P-VOPs) as determined by the GOV microprocessor.
- Page 65 Commonly into individual and completely independent "packets." Each used to give the ‘speed’ of a network. A LAN might run at 10 or computer (or host) on the Internet has at least one address that 100 Mbit/s.
- Page 66 1, 2, 3, 4, 5, 6, 7 etc., so there is which a packet should be forwarded on its way to its final virtually no ‘flickering’...
- Page 67 SSL VPN (Virtual Private Network) - This creates a secure is commonly used over HTTP to form HTTPS, as used e.g. on the "tunnel" between the points within the VPN. Only devices with Internet for electronic financial transactions.
-
Page 68: Index
Index Index ONVIF 2, 50, 53, 56 Action Buttons 10, 25 Port Status 33 Administrator 15 Post-trigger Buffer 30 Alarm 32 Pre-trigger Buffer 30 AMC 8, 13 ARP/Ping 39 AVHS 53, 56 QoS (Quality of Service) 42 Axis Media Control 13...
