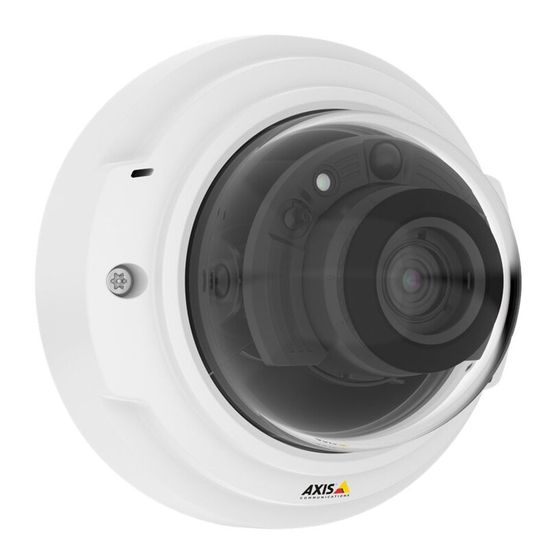

AXIS P33 Network Camera Series
AXIS P3374-V Network Camera
AXIS P3374-LV Network Camera
AXIS P3375-V Network Camera
AXIS P3375-LV Network Camera
AXIS P3375-VE Network Camera
AXIS P3375-LVE Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P3375-LV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axis P3375-LV

  • Page 1 AXIS P33 Network Camera Series AXIS P3374-V Network Camera AXIS P3374-LV Network Camera AXIS P3375-V Network Camera AXIS P3375-LV Network Camera AXIS P3375-VE Network Camera AXIS P3375-LVE Network Camera User Manual...
  • Page 2: Table Of Contents

    AXIS P33 Network Camera Series Table of Contents About this manual ......... .
  • Page 3: About This Manual

    AXIS P33 Network Camera Series About this manual About this manual This user manual describes several products. This means you may find instructions that aren’t applicable to your product.
  • Page 4: Solution Overview

    AXIS P33 Network Camera Series Solution overview Solution overview AXIS P3374-V, AXIS P3375-V, AXIS P3374-LV, or AXIS P3375-LV Network Camera AXIS P3375-VE or AXIS P3375-LVE Network Camera Surveillance center...
  • Page 5: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.
  • Page 6: Webpage Overview

    AXIS P33 Network Camera Series Get started • Use a password with at least 8 characters, preferably created by a password generator. • Don’t expose the password. • Change the password at a recurring interval, at least once a year.
  • Page 7 AXIS P33 Network Camera Series Get started Settings tabs...
  • Page 8: Additional Settings

    AXIS P33 Network Camera Series Additional settings Additional settings Adjust focus and zoom NOTICE TICE TICE This is an electronically-focused camera. Adjusting focus and zoom manually on the camera can damage the lens. Note Due to the dome’s refraction, the image may appear slightly out of focus once the dome has been placed. To correct this go to Settings >...
  • Page 9 Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.
  • Page 10: View And Record Video

    Note WDR may cause artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr. View and record video To learn more about settings for viewing and recording video, see Streaming and storage on page 18.
  • Page 11: Set Up Rules And Alerts

    Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running. 3. Make sure you have set up the application according to your needs.
  • Page 12 13. Set the duration. 14. Click Save. Record video when a PIR detector senses motion This example explains how to connect an Axis PIR detector to the camera, and set up the camera to start recording when the detector senses motion. Required hardware •...
  • Page 13 AXIS P33 Network Camera Series Additional settings • Axis PIR detector NOTICE TICE TICE Disconnect the camera from power before connecting the wires. Reconnect to power after all connections are done. Connect the wires to the camera’s I/O connector Note For information on the I/O connector, see Connectors on page 26.
  • Page 14: Add Audio

    AXIS P33 Network Camera Series Additional settings 6. Click Save. Add audio Add audio to your recording Turn on audio: 1. Go to Settings > Audio and turn on Allow audio. Edit the stream profile which is used for the recording: 2.
  • Page 15: Troubleshooting

    AXIS P33 Network Camera Series Troubleshooting Troubleshooting If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support. Reset to factory default settings Important Reset to factory default should be used with caution. A reset to factory default resets all settings, including the IP address, to the factory default values.
  • Page 16: Technical Issues, Clues And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...
  • Page 17: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
  • Page 18: Learn More

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard.
  • Page 19 AXIS P33 Network Camera Series Learn more kbit/s Maximum bitrate (MBR) With maximum bitrate, you can set a target bitrate to handle bitrate limitations in your system. You may see a decline in image quality or frame rate when the instantaneous bitrate is kept below the specified target bitrate. You can choose to either prioritize image quality or frame rate.
  • Page 20: Applications

    Actual average bitrate Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications.
  • Page 21: Specifications

    AXIS P33 Network Camera Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. Product overview AXIS P3374-LV and AXIS P3375-LV Camera unit Dome cover Network connector (PoE)
  • Page 22 AXIS P33 Network Camera Series Specifications Audio in I/O connector Control button SD card slot (microSD/microSDHC) AXIS P3374-V and AXIS P3375-V Camera unit View protector Dome cover Network connector (PoE) Audio out LED indicator...
  • Page 23 AXIS P33 Network Camera Series Specifications Audio in I/O connector Control button SD card slot (microSD/microSDHC) AXIS P3375-LVE Mounting bracket Unit casing Dome cover Weathershield Camera unit...
  • Page 24 AXIS P33 Network Camera Series Specifications Network connector (PoE) Audio out LED indicator Audio in I/O connector Control button SD card slot (microSD/microSDHC)
  • Page 25 AXIS P33 Network Camera Series Specifications AXIS P3375-VE Mounting bracket Unit casing Dome cover Weathershield Camera unit View protector Network connector (PoE) Audio out LED indicator...
  • Page 26: Led Indicators

    This product supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 27 AXIS P33 Network Camera Series Specifications 1 Tip 2 Ring 3 Sleeve Audio Input Microphone bias voltage Ground Microphone/Line in Audio Output Line out, mono Line out, mono Ground The internal microphone is used by default; the external microphone is used when connected. You can disable the internal microphone by connecting a plug to the microphone input.
  • Page 28 AXIS P33 Network Camera Series Specifications DC ground DC output 12 V, max 25 mA Supervised input Digital output...
  • Page 29 User Manual Ver. M10.2 AXIS P33 Network Camera Series Date: February 2020 © Axis Communications AB, 2017 - 2020 Part No. T10110920...
