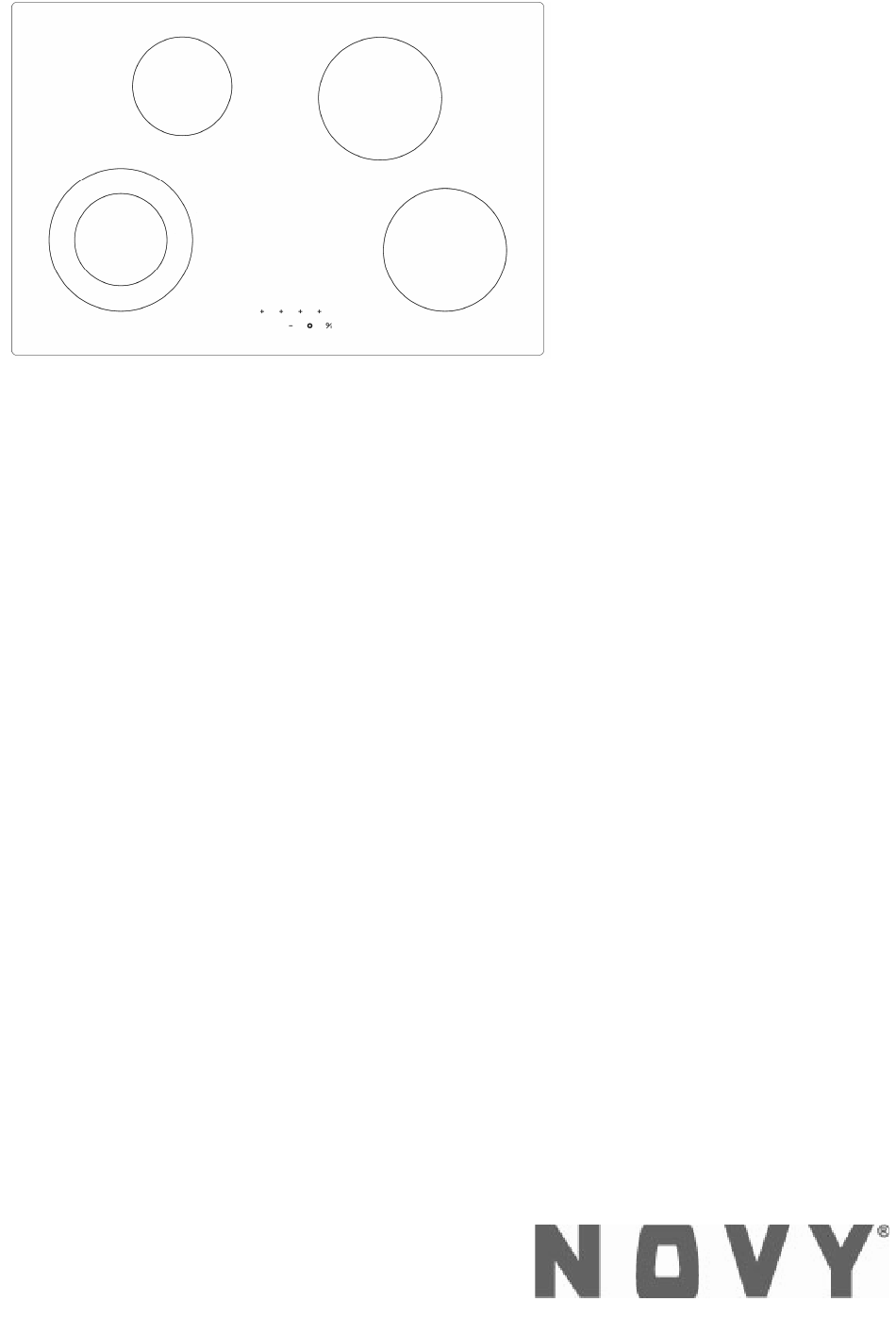

- Page 1 Gebruiksaanwijzing en installatievoorschriften Kookplaten O’zone Mode d’emploi et d’installation Table O’zone Montage- und Bedienungsanleitung Kochfelder O’zone Instructions for use and installation O’zone hob 1109 - 1119...
-
Page 2: Table Of Contents
SUMMARY SAFETY ............................ 31 ......................31 RECAUTIONS BEFORE USING ........................31 SING THE APPLIANCE ..................32 RECAUTIONS NOT TO DAMAGE THE APPLIANCE ..................32 RECAUTIONS IN CASE OF APPLIANCE FAILURE ........................32 THER PROTECTIONS DESCRIPTION OF THE APPLIANCE ..................33 ..........................33 ECHNICAL DATA ...........................33 ONTROL PANEL USE ............................33 ........................33 ENSITIVE TOUCHES... -
Page 3: Safety
SAFETY Precautions before using Unpack all the materials. The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by installation or connecting errors. To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface. -
Page 4: Precautions Not To Damage The Appliance
Precautions not to damage the appliance Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass. Sand or other abrasive materials may damage ceramic glass. Avoid dropping objects, even little ones, on the vitroceramic. ... -
Page 5: Description Of The Appliance
Heating zone location Power Diameter Front left 1000 / 2200 W 135 / 210 mm Rear left 1200 W 145 mm 1109 6400 W Rear right 1800 W 180 mm Front right 1200 W 145 mm Front left 1000 / 2200 W... -
Page 6: Residual Heat Indication
Residual heat indication After the switch-off of the hob, the heating zone is still hot and indicates [ H ] on the display. The symbol [ H ] disappears when the heating zone may be touched safely. When the residual heat indicator light is on,don’t touch the heating zone and don’t put any heat sensitive object on them. -
Page 7: Extension Zone
In the 5 seconds after start : Unlocking the hob Press simultaneously [ - ] and [ + ] at left [ 0 ] or [ H ] Press key [ - ] No light on the displays Extension zone Action Control panel Display... -
Page 8: Maintenance And Cleaning
MAINTENANCE AND CLEANING Do not clean the hob if the glass is hot: risk of burn. Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly. ... -
Page 9: Installation Instructions
Width Depth Width Width Depth 1109 1119 Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. - Page 10 Caution! This appliance has only to be connected to a network 230 V~ 50/60 Hz Always connect the earth wire. Respect the connection diagram. The connection box is located underneath at the back of the hob casing. To open the cover, use a medium screwdriver.
- Page 12 14970/0...
