TERK Technologies FM Edge User Manual

Fm edge indoor antenna

Helpful Information

About Your FM Edge

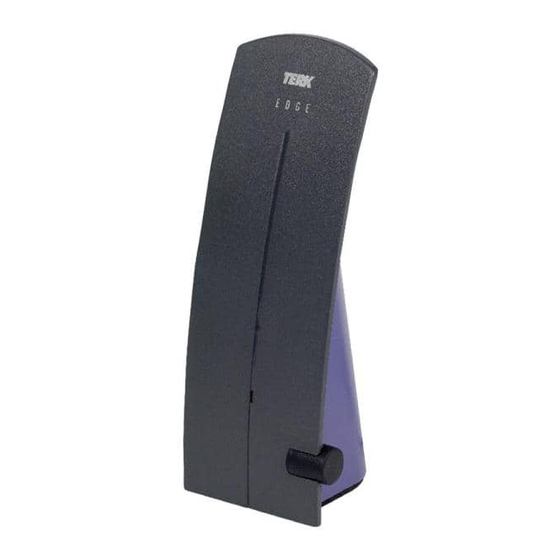

Your FM Edge antenna is a quality indoor FM antenna

which uses Gamma Loop™ technology to receive FM

broadcasts with the least amount of noise possible.

Remember that no antenna can receive a radio signal that

isn't there. When a usable radio signal is present, your

FM Edge will improve FM reception.

Note: Generally, a practical limit to radio reception is

40-50 miles from the broadcast transmitter depending

on the terrain.

Gain Control Knob:

Located on the side of the FM Edge is the gain control

knob. The gain control is the mechanism that either

increases or decreases the antenna's amplifier intensity.

The further away you are from the radio signal, the more

you increase the gain. If you are very close to the radio

signal, lowering the gain may have a greater effect.

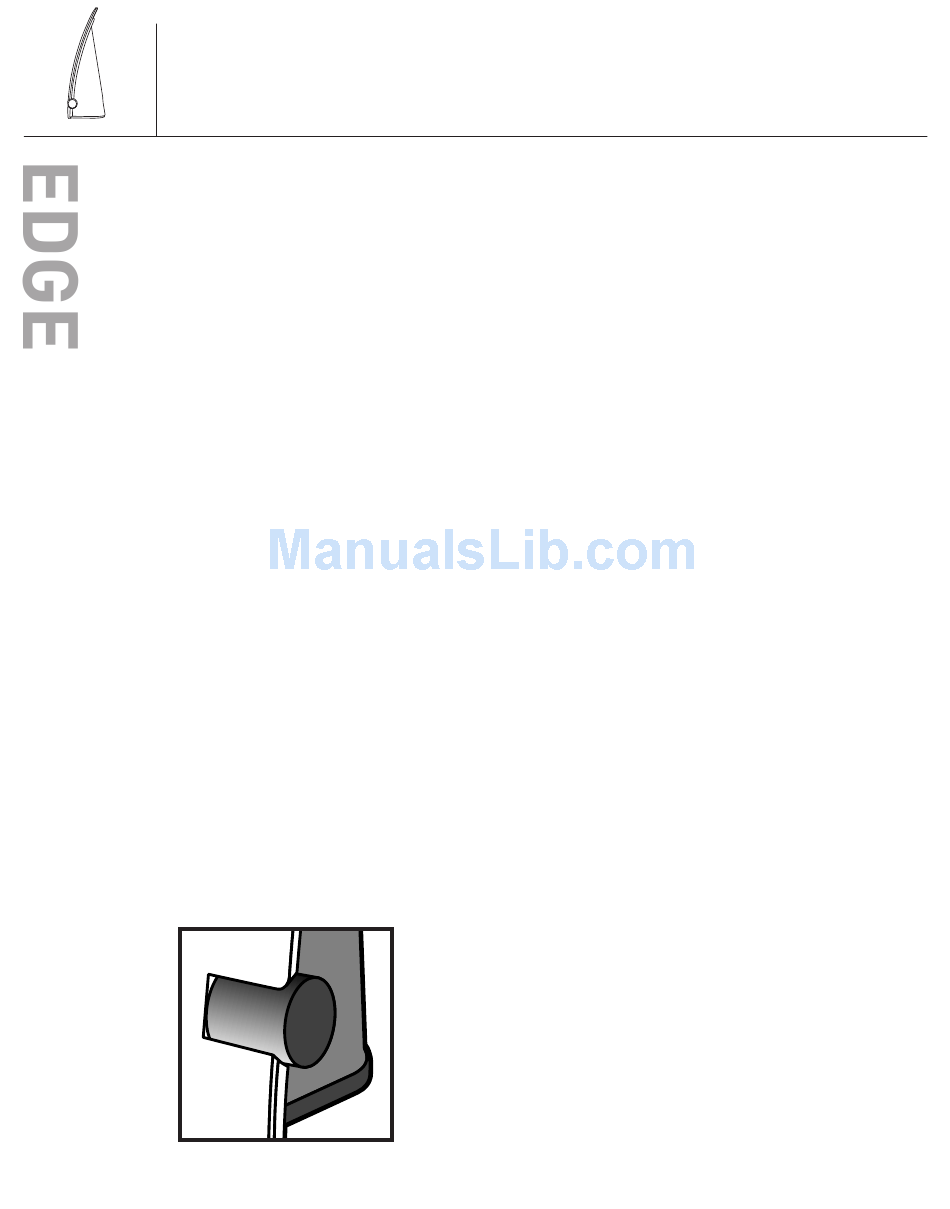

See Fig. 3.

Fig. 3

Table of Contents

Do you have a question about the FM Edge and is the answer not in the manual?

Page 1 40-50 miles from the broadcast transmitter depending on the terrain. Gain Control Knob: Located on the side of the FM Edge is the gain control knob. The gain control is the mechanism that either increases or decreases the antenna’s amplifier intensity.
Page 2: Limited Warranty
Some portable boom box radios do not have such an input. Can I extend the wire on my FM antenna to place it on a window sill or somewhere away from my receiver? You can extend the wire with RG-59 cable and a two-way F connector.
Page 3 EDGE OWNER’S MANUAL FM Edge Indoor Antenna...
Page 4: Making Connections
75 Ohm Push-Button Connection: If your radio tuner or receiver has push-button terminals for FM, you will need to use the supplied RED 75 Ohm matching transformer. First, slide the RED 75 Ohm matching transformer into the connector on the FM lead of the antenna.
Page 5 Plug the smaller end into the input located on the back of the antenna. Note: When plugging your TERK Power Adapter into a wall outlet, the antenna will remain “ON.” This is not a problem because the AC adapter uses very little power.
Page 6 FM Edge. 2. Keep the antenna away from large metal objects and off the ground. Near a window is usually a good spot. 3. On rare occasions, certain areas in your home may be null points where no usable signal can be received.
